Xerox PHASER 7500 User Manual

Maintenance
Phaser 7500 Color Printer
User Guide
101

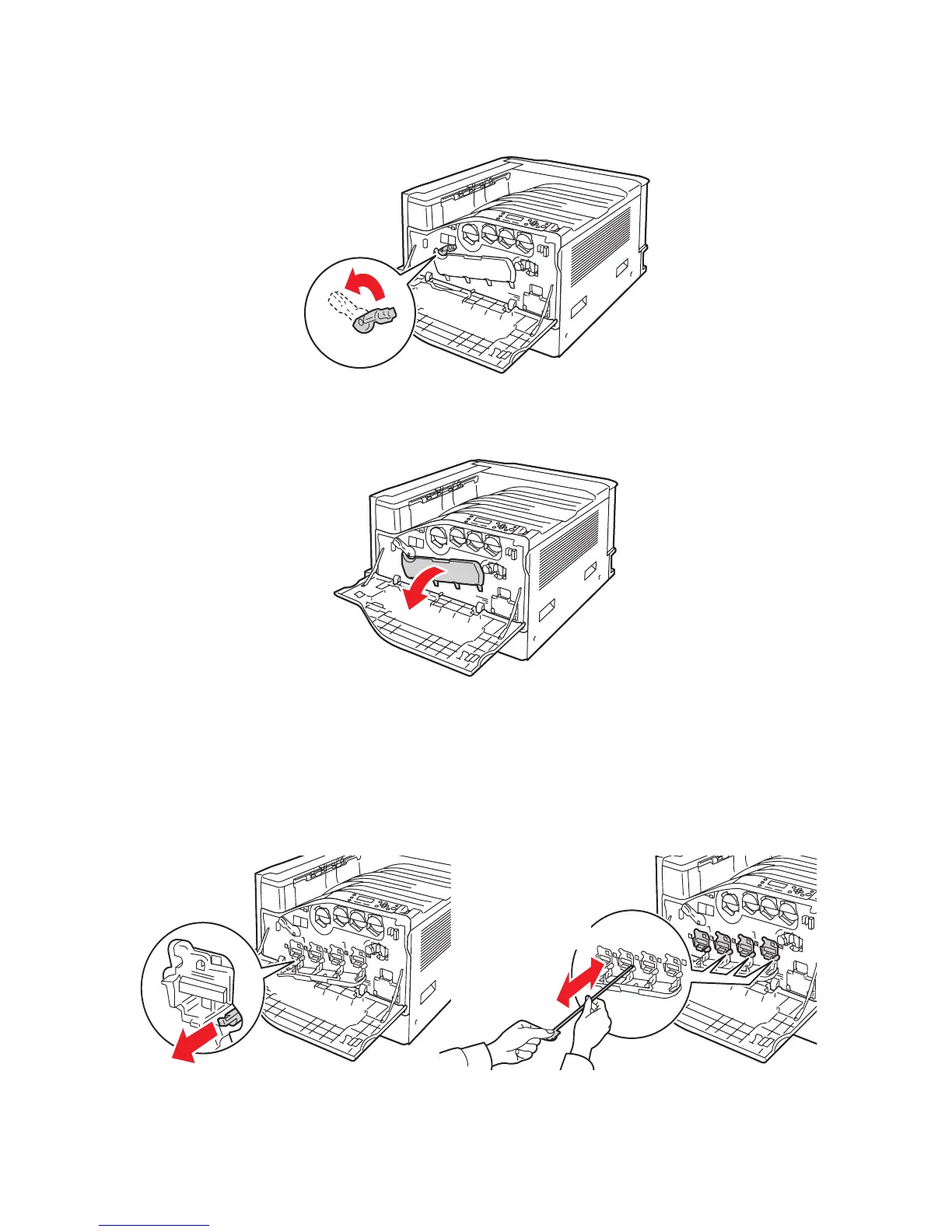

2. Rotate the lever on the front left side to unlock it.
3. Open the imaging unit cover.
4. Pull the cleaning rod from the lower right corner of the imaging unit slot.
5. Pull out the cleaning rod until it stops, then move it all the way in and out two or three times to
clean the LEDs. Repeat this for all four imaging units.
Note: Make sure to pull the cleaning rods out as far as they will go. Push them in as far as they will
go. Do not use excessive force.
7500-081
7500-074
7500-077
4X

Xerox PHASER 7500 Specifications

General

Max Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Standard Paper Capacity	550 sheets
Duplex Printing	Optional
Standard Memory	256 MB
Network Connectivity	10/100/1000Base-T Ethernet
Supported Operating Systems	Windows, Mac OS, Linux
Max Paper Capacity	2, 100 sheets
Connectivity	USB 2.0, Ethernet
PDL	PostScript 3, PCL 6, PDF
Print Speed	Up to 35 ppm
