Printing on Both Sides of the Paper
Phaser® 8560/8860 Printer
3-28
Binding Edge Options
When you use the printer driver to select 2-sided printing, also select the binding edge, which
determines how the pages turn. The actual outcome depends on the orientation (portrait or
landscape) of images on the page, as displayed in the following illustrations.
Selecting 2-Sided Printing
To select automatic 2-sided printing:
1. Insert paper in the tray.
■ Tray 1: Insert side one faceup with the bottom of the page entering the printer first.
■ Tray 2, 3, or 4: Insert side one facedown with the top of the page toward the back of
the tray.
2. Select 2-sided printing in the printer driver.
To select automatic 2-sided printing:
See also:
Loading Paper in Tray 1 on page 3-9
Loading Paper in Tray 2, 3, or 4 on page 3-17

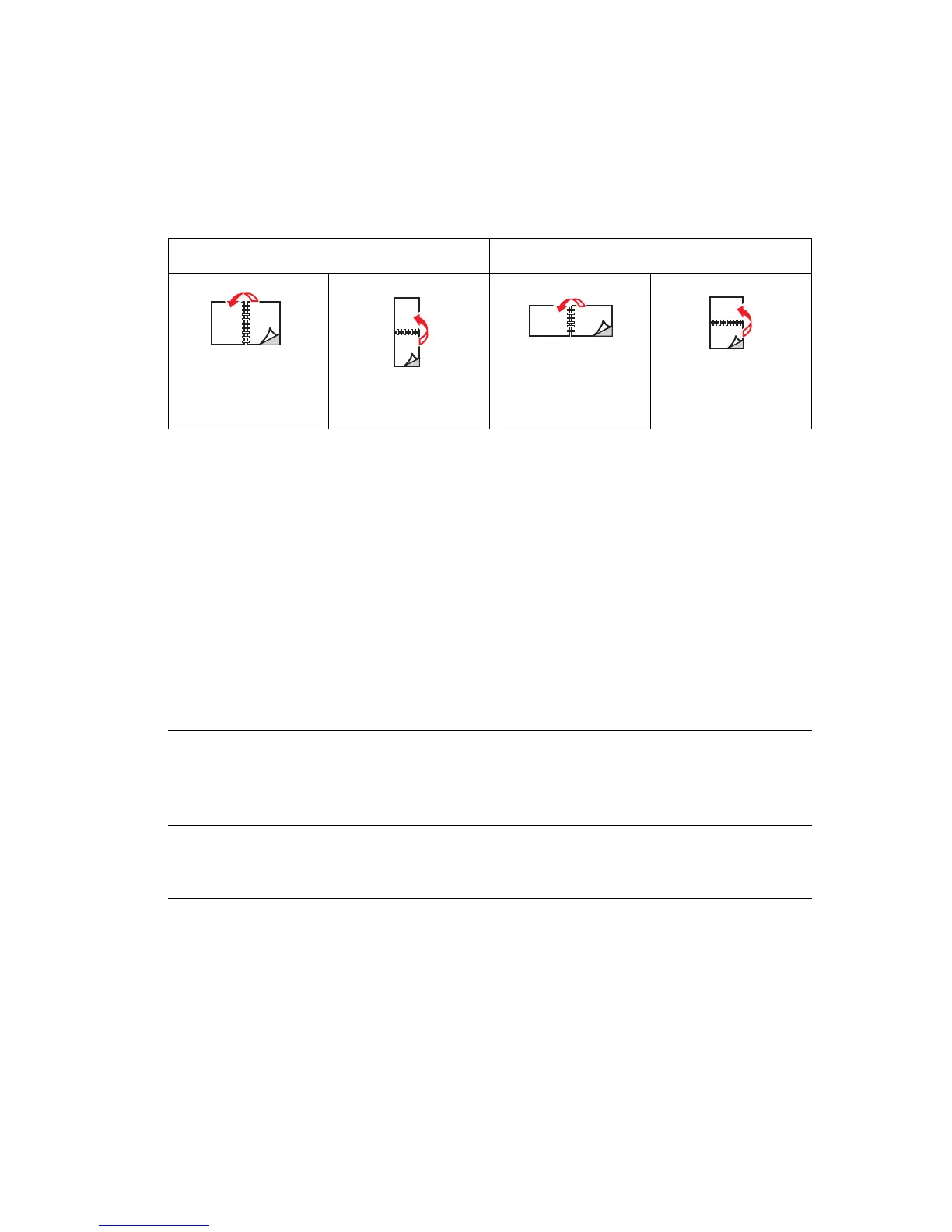

Portrait Landscape
Bind on Side Edge
Flip on Long Edge
Bind on Top Edge
Flip on Short Edge
Bind on Side Edge
Flip on Short Edge
Bind on Top Edge
Flip on Long Edge
Operating System Steps
Windows Vista,
Windows 2000,
Windows XP, or
Windows Server 2003
1. Select the Paper/Output tab.
2. Select an option under 2-Sided Printing:
■ 2-Sided Print
■ 2-Sided Print, Flip on Short Edge
Mac OS X, version
10.3 and higher
1. In the Print dialog box, select Layout.
2. Select Print on Both Sides.
3. Click the Binding icon that matches the edge to bind.

Xerox Phaser 8560 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (color, normal)	5 s
Print speed (black, normal quality, A4/US Letter)	3 ppm
Print speed (color, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	1 MB
Sound power level (standby)	33 dB
Sound pressure level (printing)	54 dB
Maximum duty cycle	85000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c
Maximum input capacity	625 sheets
Paper tray 2 input capacity	525 sheets
Multi-Purpose tray input capacity	100 sheets
Power requirements	110 - 240 V, 50/60 Hz
Networking features	10/100BaseTX
Standard media sizes	140 x 216 mm - 216 x 356 mm
Power consumption (active)	230 W
Compatible operating systems	Linux, Mac OS X 10.2 +, Novell NetWare 3.x +, Windows 2000 +
Envelopes sizes	C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Glossy paper, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	IPv6
Sustainability certificates	ENERGY STAR
Power consumption (PowerSave)	43 W
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	406 x 533.4 x 368 mm
