Xerox PrimeLink B9125

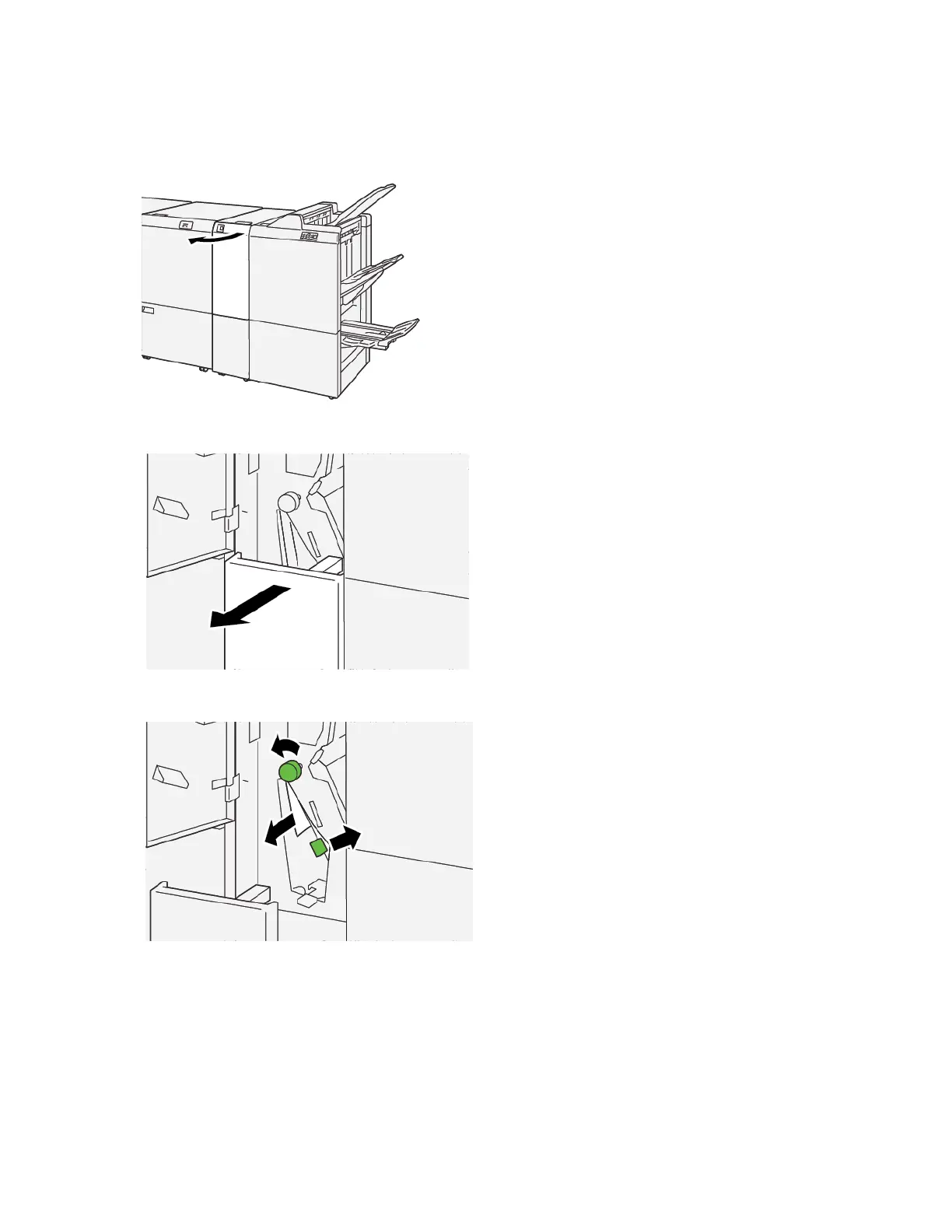

Clearing Paper Jams from Folder Area E12
1. Open the folder front cover.
2. Pull open the C/Z fold output tray 22dd.
3. To remove jammed paper, do the following:
a. Pull lever 22ee to the right.
b. Rotate knob 22cc counterclockwise.
c. Remove the jammed paper.
410
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide
C/Z Folder
