Xerox VersaLink B610

2.
CCaauuttiioonn:: Until the Front Door is opened fully, the Toner Cartridge is locked in place. To prevent damaging
the printer, ensure that the Front Door is opened fully before attempting to remove the Toner Cartridge.

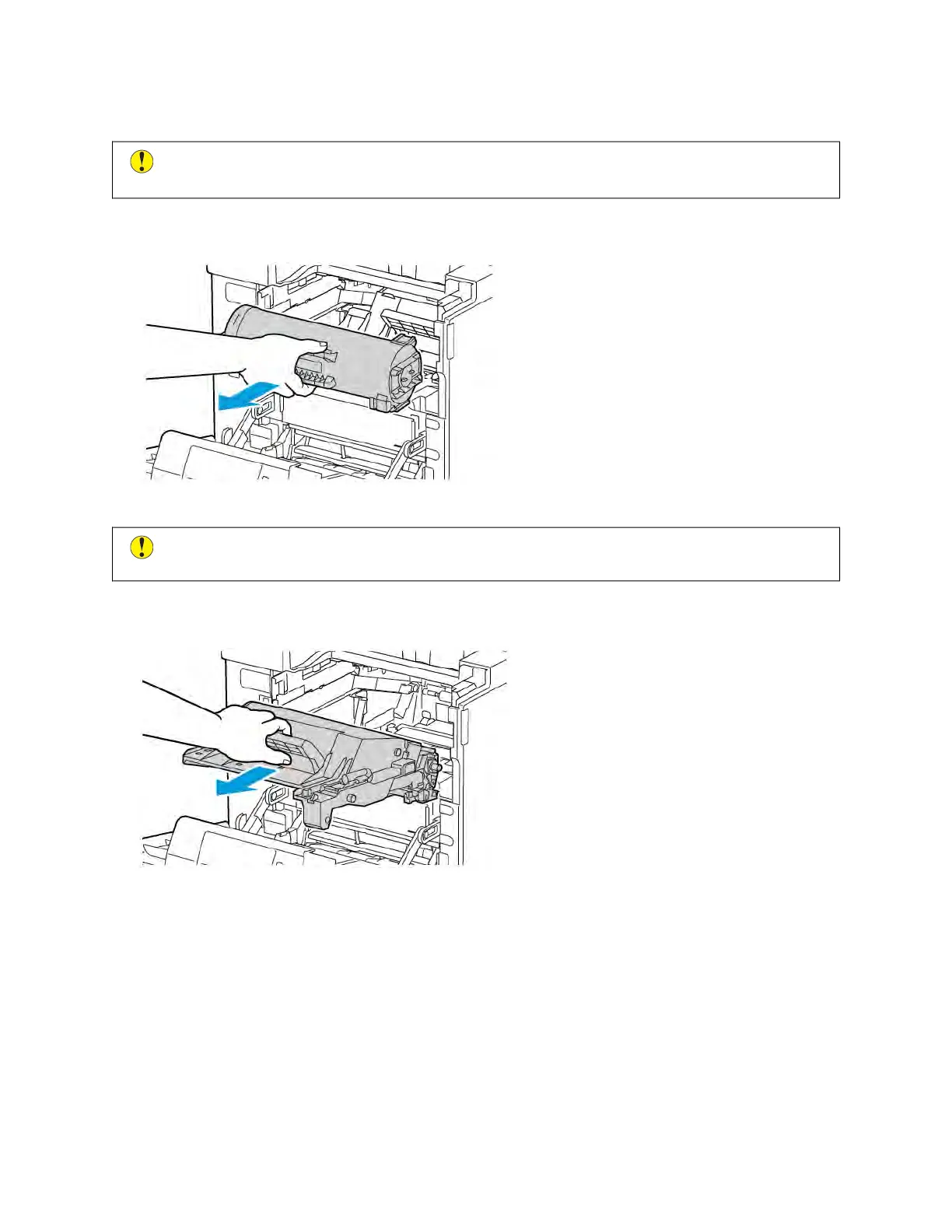

To remove the Toner Cartridge, grip both its handles, then pull the Toner Cartridge straight out of the printer.
Place the removed Toner Cartridge on a level surface.
3.
CCaauuttiioonn:: Do not expose the drum cartridge to direct sunlight or strong indoor fluorescent lighting. Do
not touch or scratch the surface of the drum.
To remove the Drum Cartridge, grip the orange handle, then pull the Drum Cartridge straight out of the printer.
Place the removed Drum Cartridge on a clean, level surface.
134 Xerox
®
VersaLink
®
B600/B610 Printer User Guide
Maintenance
