Xerox VersaLink B610 User Manual

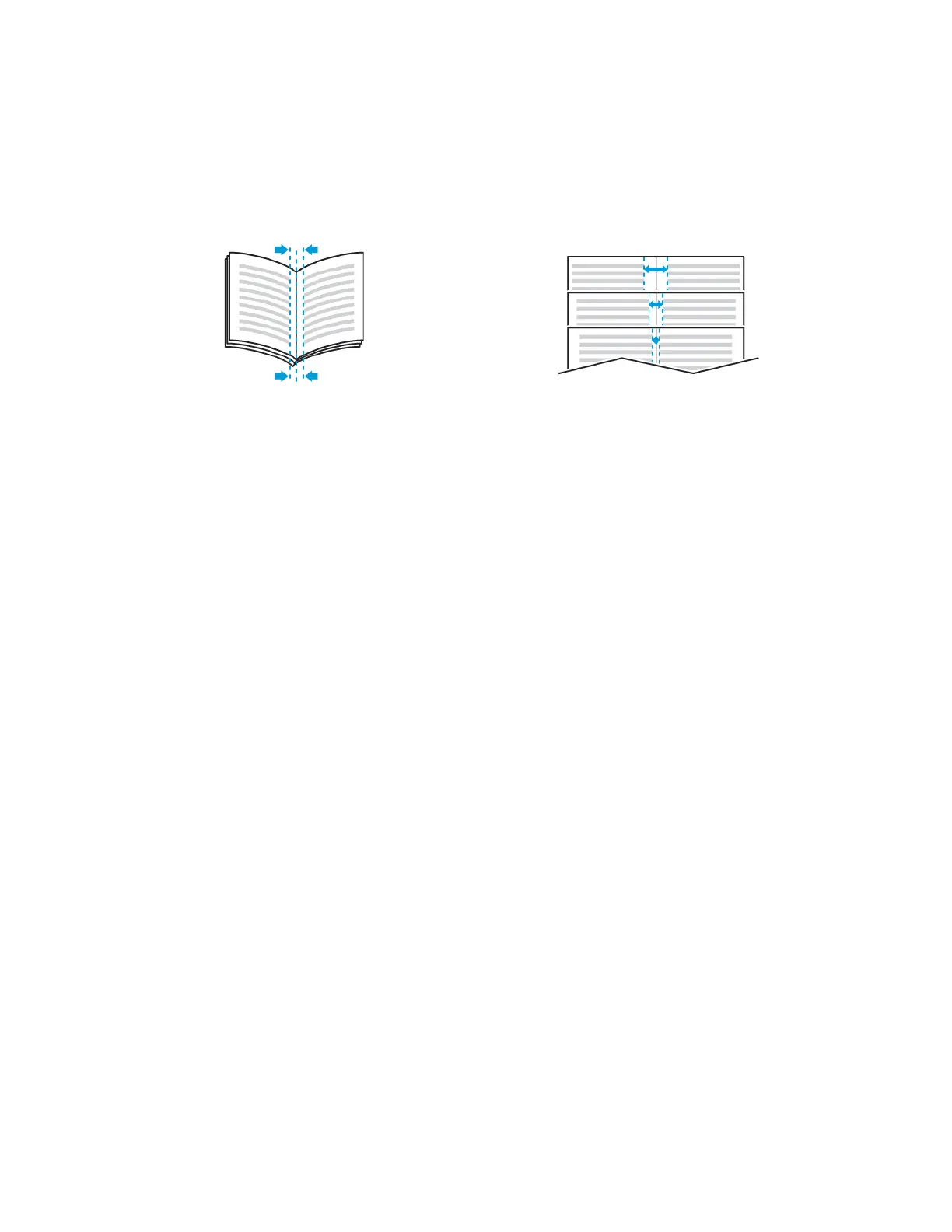

• GGuutttteerr: Specifies the horizontal distance in points between the page images. A point is 0.35 mm (1/72 in.).
• CCrreeeepp: Specifies how much the page images shift outward in tenths of a point. Shifting compensates for the
thickness of the folded paper, which can cause the page images to shift outward slightly when folded. You can
select a value from zero to 1 point.
Gutter
Creep
SELECTING FINISHER OPTIONS
With the optional finisher option installed on the printer, you can request stapled documents right from your
desktop computer. The stapler can staple up to 30 sheets of 105 g/m
2
.
1. From the PPrriinnttiinngg OOppttiioonnss tab, locate the FFiinniisshhiinngg option, then select 11 SSttaappllee.
2. Click OOKK.
The stapled prints are delivered to the finisher unit.
SELECTING MAILBOX OPTIONS
With the optional mailbox option installed on the printer, you can send prints to a specific mailbox bin right from
your desktop computer.
1. From the PPrriinnttiinngg OOppttiioonnss tab, locate the OOuuttppuutt DDeessttiinnaattiioonn option, then select one of the mailbox bins.
2. Click OOKK.
The prints are delivered to the selected mailbox bin.
USING SPECIAL PAGES
The Special Pages options control how covers, inserts, and exception pages are added to your printed document.
• For Windows, the Special Pages tab is on the Document Options tab.
• For Macintosh, in the Print window, in Xerox Features, Special Pages is in the Paper field for Paper/Output.
Printing Cover Pages
A cover page is the first or last page of a document. You can select paper sources for the cover pages that are
different from the source used for the body of a document. For example, you can use your company letterhead for
the first page of a document. You can also use heavyweight paper for the first and last pages of a report. You can
use any applicable paper tray as the source for printing cover pages.
Select one of these options for printing cover pages:
96
Xerox
®
VersaLink
®
B600/B610 Printer User Guide
Printing

Xerox VersaLink B610 Specifications

General

Package depth	640 mm
Package width	580 mm
Package height	610 mm
Package weight	28000 g
Country of origin	Vietnam
Maximum resolution	1200 x 1200 DPI
Optional connectivity	Wireless LAN
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Sustainability certificates	ENERGY STAR
Operating relative humidity (H-H)	10 - 85 %
Printing colors	Black
Maximum duty cycle	300000 pages per month
Number of print cartridges	1
Page description languages	HP-GL, PCL 5e, PCL 6, PostScript 3, TIFF, XPS
Average cartridge yield (black)	30000 pages
USB port	Yes
Color	No
Print technology	Laser
Warm-up time (from sleep mode)	35 s
Time to first page (black, normal)	3.7 s
Print speed (black, normal quality, A4/US Letter)	63 ppm
Duplex print speed (black, normal quality, A4/US Letter)	56 ppm
Paper input type	Paper tray
Total input capacity	700 sheets
Total output capacity	500 sheets
Custom media width	76.2 - 190 mm
Custom media length	216 - 356 mm
Duplex media weight	60 - 176 g/m²
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Letterhead, Plain paper, Recycled paper
Paper tray media weight	60 - 220 g/m²
Maximum ISO A-series paper size	A4
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	256-bit AES, FIPS 140-2, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	TCP/IP, HTTP/HTTPS, Internet Printing Protocol, LPR/LPD, Raw Socket Printing/Port 9100, IPv4/IPv6, WSD LDAP, FTP
Storage media	HDD
Internal memory	2048 MB
Processor cores	2
Processor family	ARM Cortex
Internal storage capacity	320 GB
Sound power level (standby)	27.1 dB
Sound pressure level (printing)	56.8 dB
Current rating	8 A
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	72 W
Power consumption (printing)	900 W
Control type	Touch
Product color	Blue, White
Market positioning	Business
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows 2000 Server, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Cables included	AC
Compatibility	VersaLink B600/B610

Weight and Dimensions

Depth	465.5 mm
Width	427.4 mm
