6. Load paper into the tray before inserting it back into the printer.

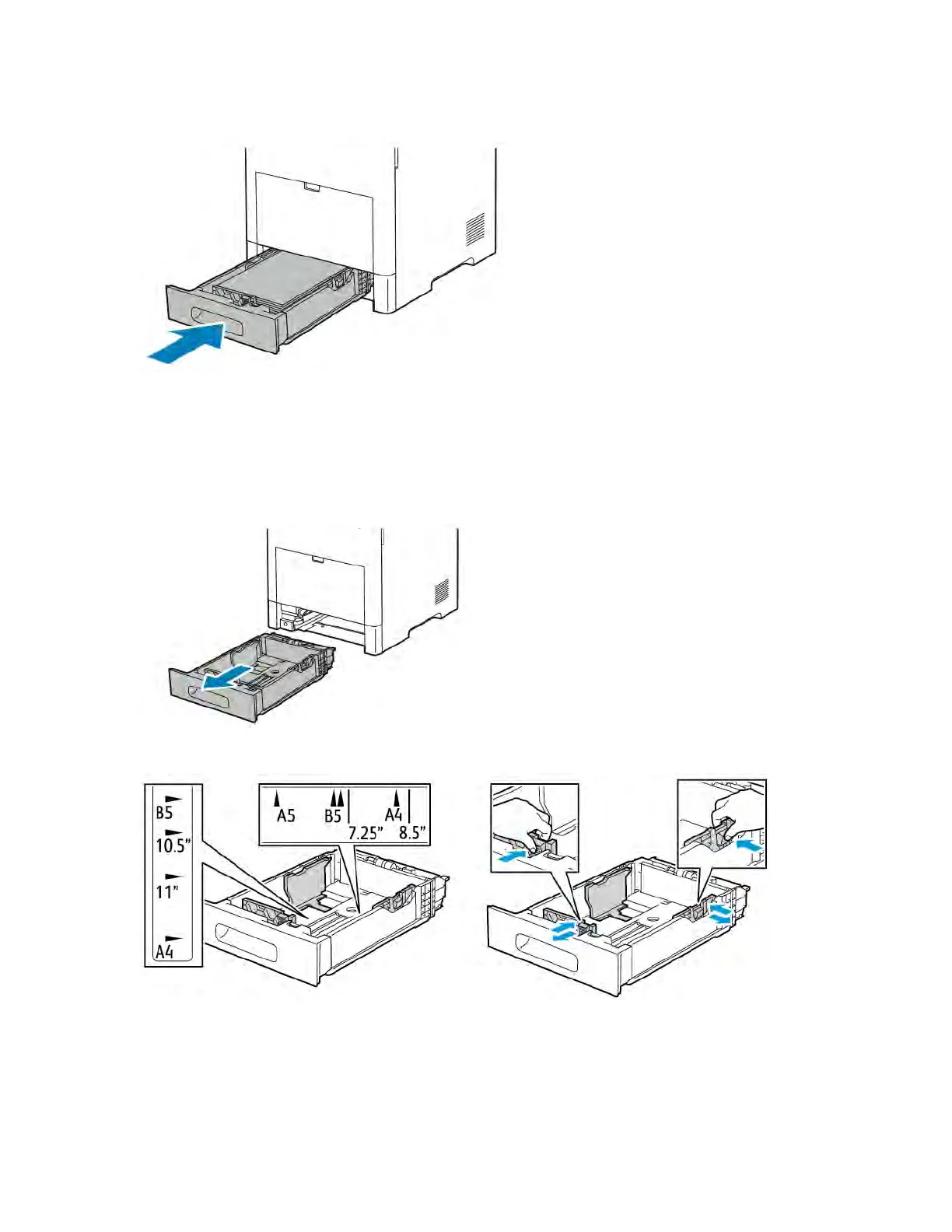

LOADING PAPER IN TRAYS 1–5
To load paper in Tray 1 and optional Trays 2–5:
1. To remove the tray from the printer, pull out the tray until it stops. Lift the front of the tray slightly and then
pull out the tray completely.
2. Adjust the paper length and width guides as illustrated.
Xerox
®
VersaLink
®
B600/B610 Printer User Guide 115
Paper and Media
