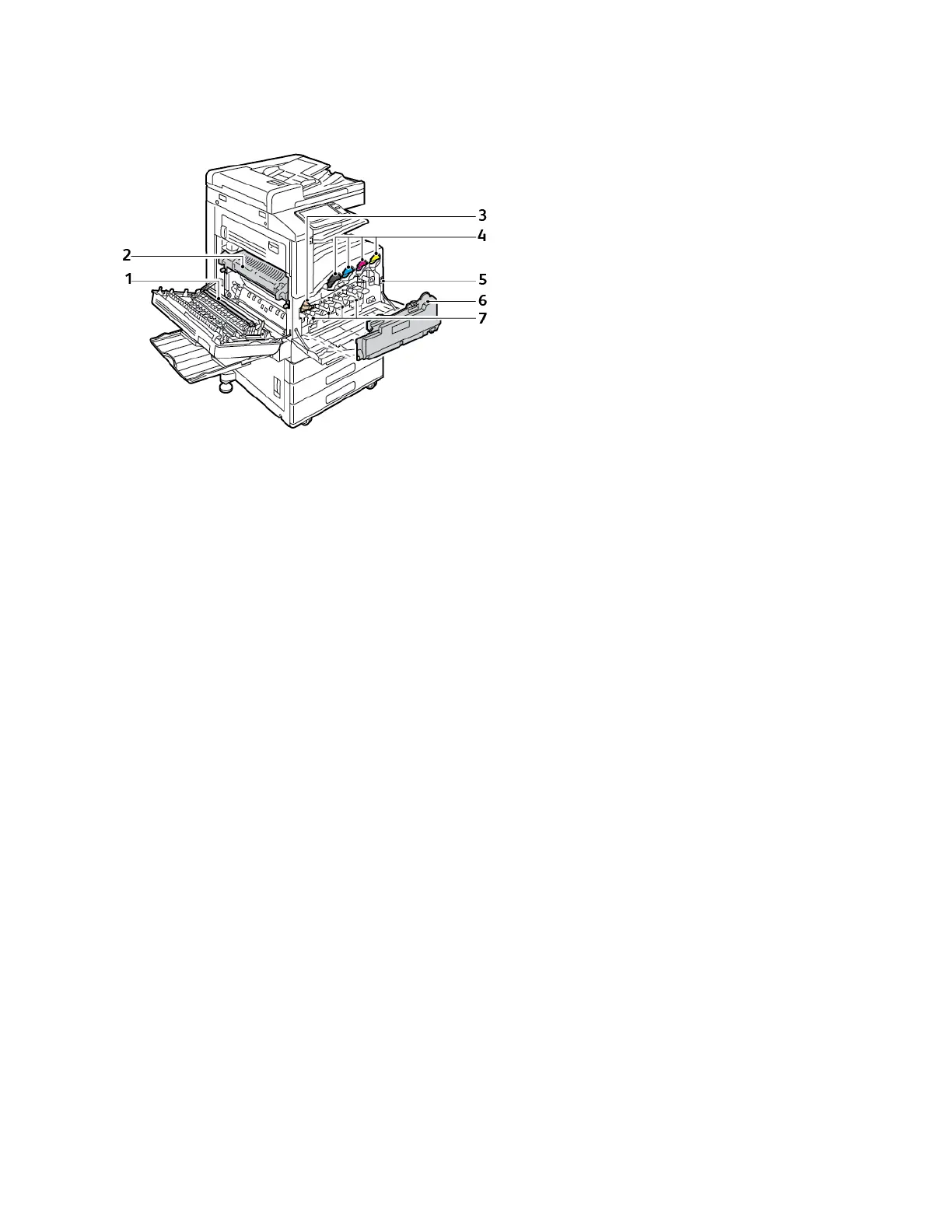

IInntteerrnnaall PPaarrttss

1. Transfer Roll

2. Fuser

3. IBT Belt Release

4. Toner Cartridges

5. Power Switch

6. Waste Cartridge

7. Drum Cartridges
