Xerox Customized Envelope Feeder – Problem Solving Guide 4-3
REP 4.1 Cleaning Feed Belts, Discharge Belts and O-Rings
1. Turn the power switch to O (off) and remove the power cord from the power source.
2. Using the alcohol swabs included with the Feeder, press on the center of the stem of the
alcohol swab (which causes alcohol to saturate the tip of the swab). If alcohol swabs are
not available, apply a small amount of isopropyl alcohol to a soft, clean cloth.
3. For belts, use moderate pressure to wipe across one belt at a time while manually rotating
it. Repeat for several rotations of each belt.
4. For O-rings, remove the gate assembly from the gate plate first and then wipe in each direction.
REP 4.2 Cleaning Sensor Lenses
1. Turn the power knob to O (off) and remove the power cord from the power source.
2. Use a soft, dry cloth to wipe gently across the face of each lens.

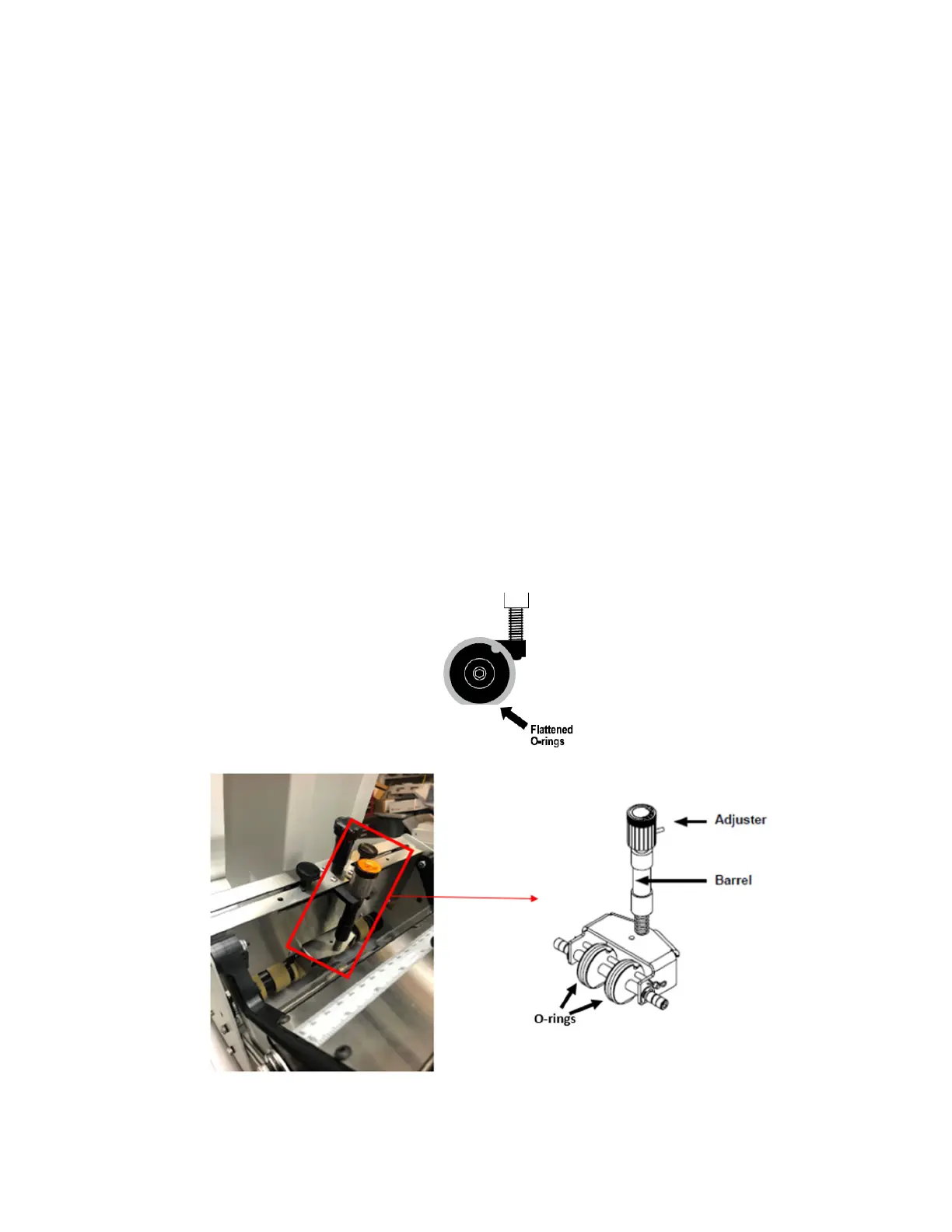

REP 4.3 Checking for Separator Assembly Wear
1. Examine the O-ring assembly closely for a flat area at the bottom of the O-ring assembly.
2. If a flat area exists at the bottom of the O-ring assembly, advance the O-rings by
performing REP 4.4 (next page).
