Wiring Data
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
7-5

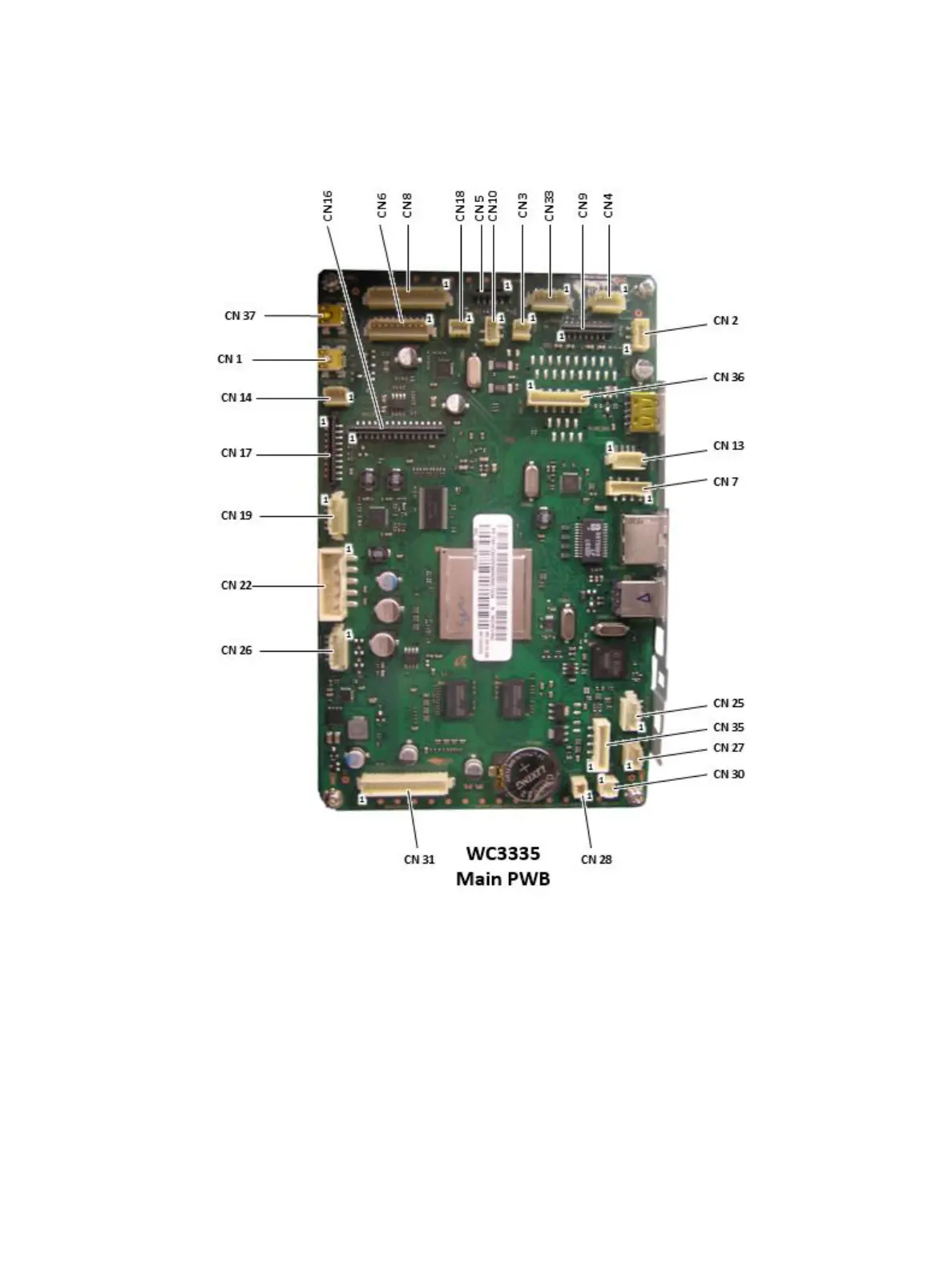

WorkCentre 3335/3345 Main PWB Connector Designators
