WorkCentre 7220-7225 Information Assurance Disclosure Paper
Ver. 1.0, January 2013 Page 15 of 61
2.3. Fax Module
2.3.1. Purpose
The embedded FAX service uses the installed embedded fax card to send and receive images over the telephone
interface. The FAX card plugs into a custom interface slot on the controller.
2.3.2. Hardware
The Fax Card is a printed wiring board assembly containing a fax modem and the necessary telephone interface
logic. It connects to the controller via a serial communications interface. The Fax Card is responsible for
implementing the T.30 fax protocol. All remaining fax-specific features are implemented in software on the
controller. The fax telephone lines are connected directly to the Fax Card via RJ-11 connectors.
Name Size Purpose / Explanation
MODEM #1 NA Optional Fax modem 2 ports
Table 6 Fax Module components

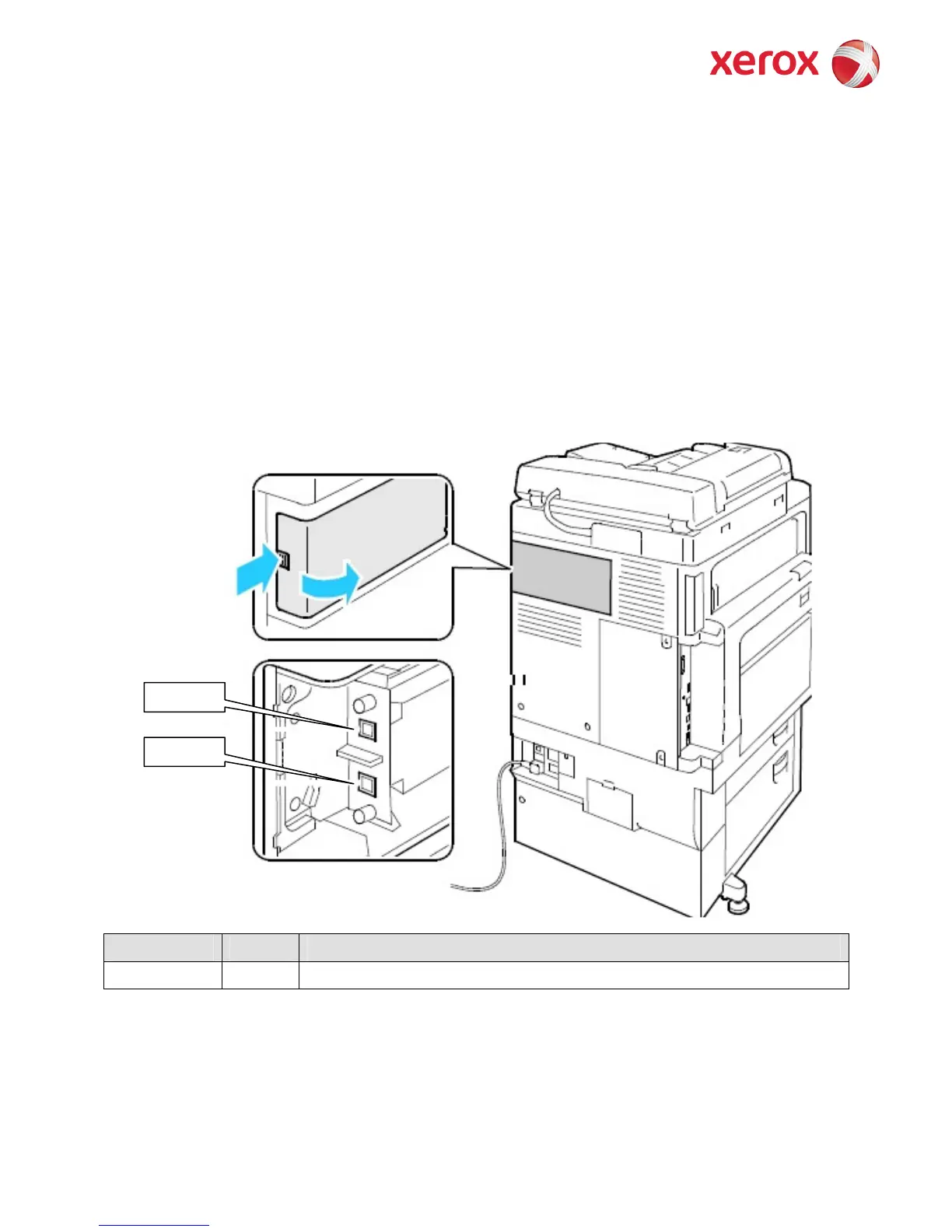

FAX Port
FAX Port

Xerox WorkCentre 7225 Specifications

General

Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Duplex Printing	Standard
Functions	Print, Copy, Scan, Fax
Memory	2 GB
Fax Speed	33.6 Kbps
Print Speed	Up to 25 ppm
Connectivity	10/100/1000Base-T Ethernet, USB 2.0
Hard Drive	160 GB
Operating System Compatibility	Windows, Mac OS, Linux
Dimensions	640 x 670 x 1135 mm (with optional feeder)
