2.7.3. Network Protocols

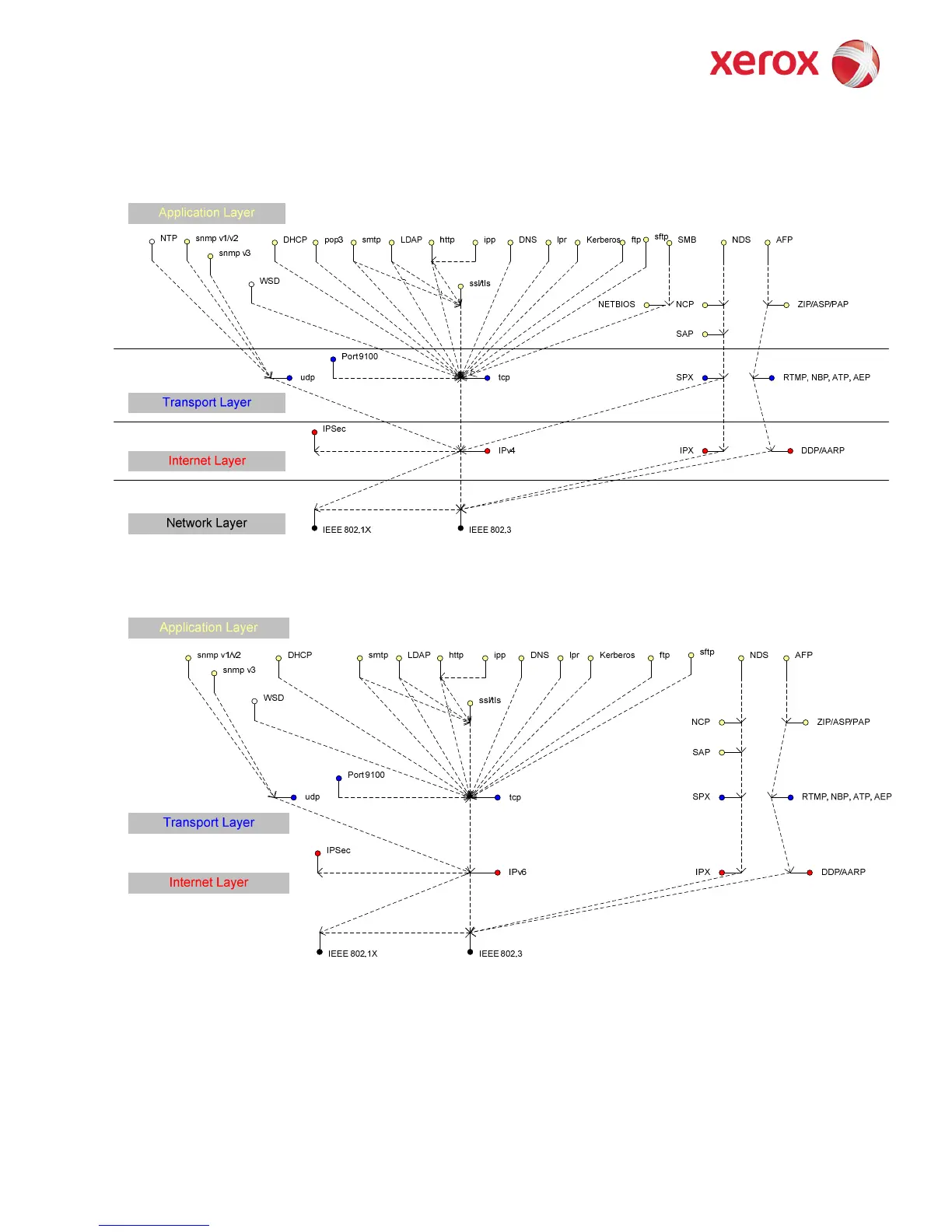

Figure 2-5 and Figure 2.6 are interface diagrams depicting the IPv4 and IPv6 protocol stacks supported by the
device, annotated according to the DARPA model.
Figure 2-5 IPv4 Network Protocol Stack
Figure 2-6 IPv6 Network Protocol Stack
