5-8
Disassembly and Reassembly
Service Manual
July 2003 WorkCentre PE16

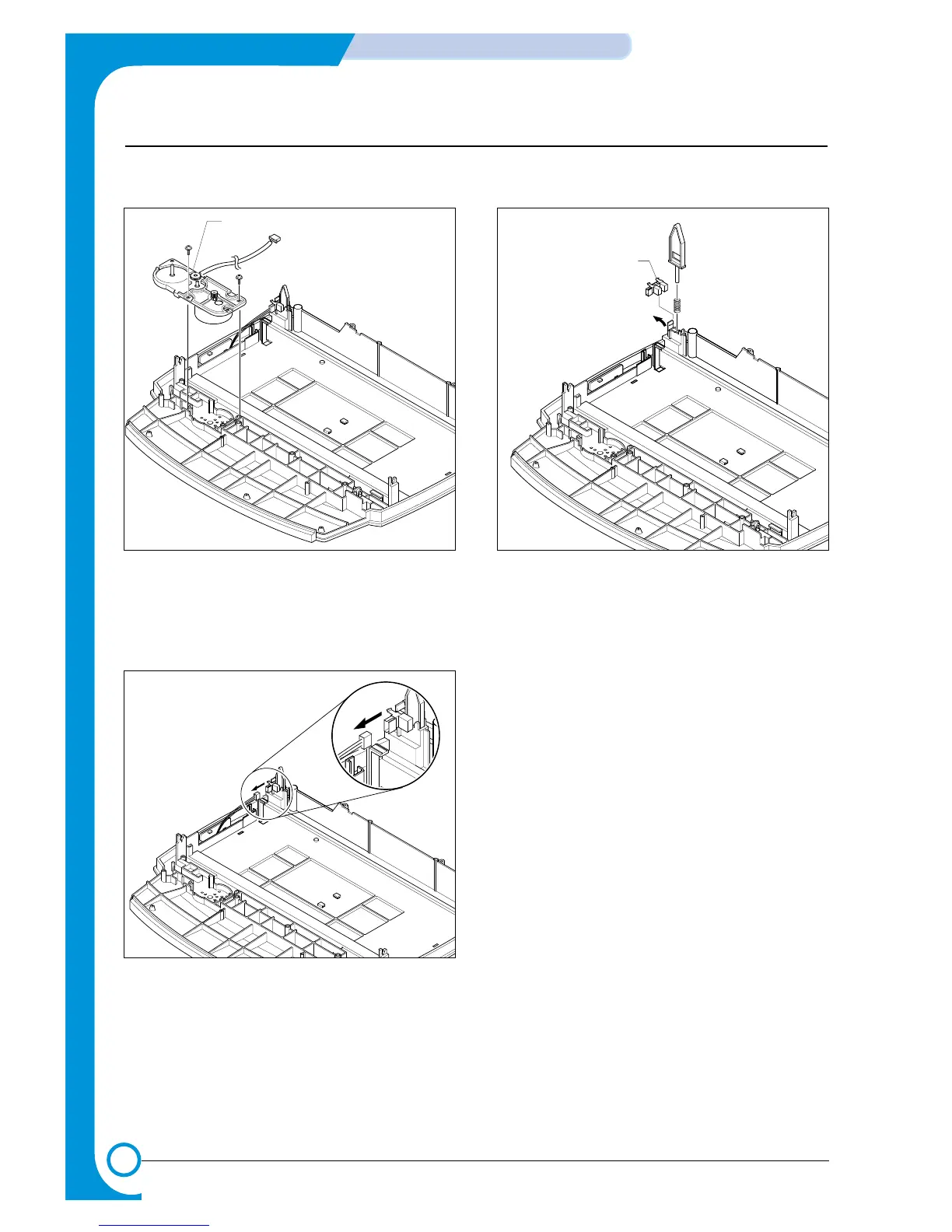

14. Remove the two screws and take out the Motor
Bracket.
15. Unplug the one connector from the Open Sensor
Ass'y.
16. Unlatch the Open Sensor and remove it, as shown
below.
Open Sensor
Motor Bracket
