Platform Cable USB II
DS593 (v1.2.1) March 17, 2011 www.xilinx.com
13
Physical Connection to the Host
Each Platform Cable USB II includes a detachable, Hi-Speed-USB-certified, 1.8-meter A–B cable (Figure 13). Under no
circumstances should user-supplied cables exceed 5 meters. Sub-channel cables (intended for low-speed 1.5 Mb/s
signaling) should not be used with Platform Cable USB II.
A standard series B receptacle (Figure 13) is incorporated into the case for mating with the detachable Hi-Speed A–B cable.
A separate chassis ground is attached to the A–B cable drain wire and returns ESD current to the host system ground.

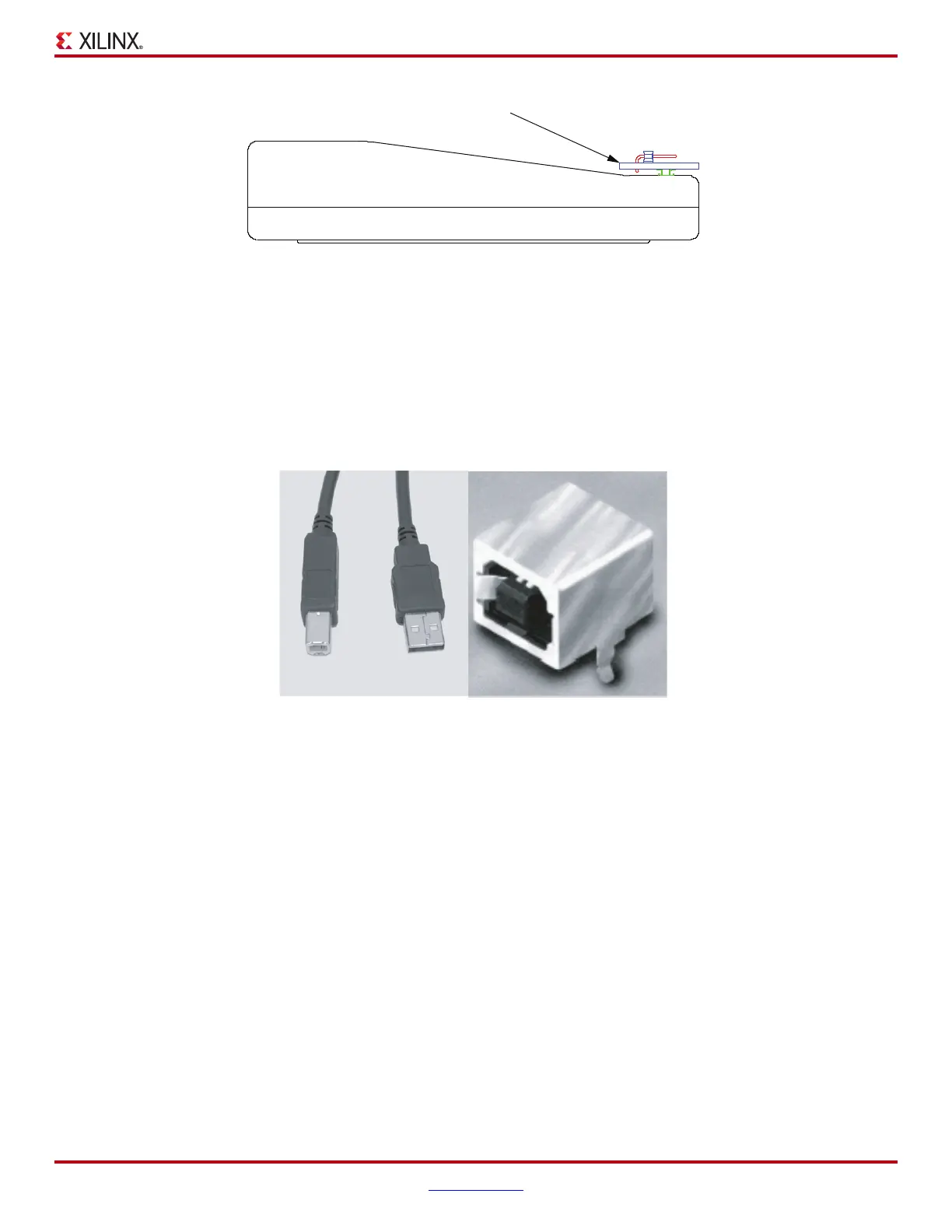

X-Ref Target - Figure 12
Figure 12: Flying Wire Adapter (Side) without Wires
X-Ref Target - Figure 13
Figure 13: Standard A-B Host Interface Cable and Series B Receptacle
DS593_12_012508
Adapter Circuit Board
DS593_13_112607
