SP605 Hardware User Guide www.xilinx.com 49
UG526 (v1.1.1) February 1, 2010
Detailed Description
Mode DIP Switch SW1 (Active-High)
DIP switch SW1 sets the FPGA mode as shown in Figure 1-24 and Table 1-30, page 55.
References
For more information, refer to the Spartan-6 FPGA Configuration User Guide [Ref 2]. See
Table 1-30, page 55 for the configuration modes.

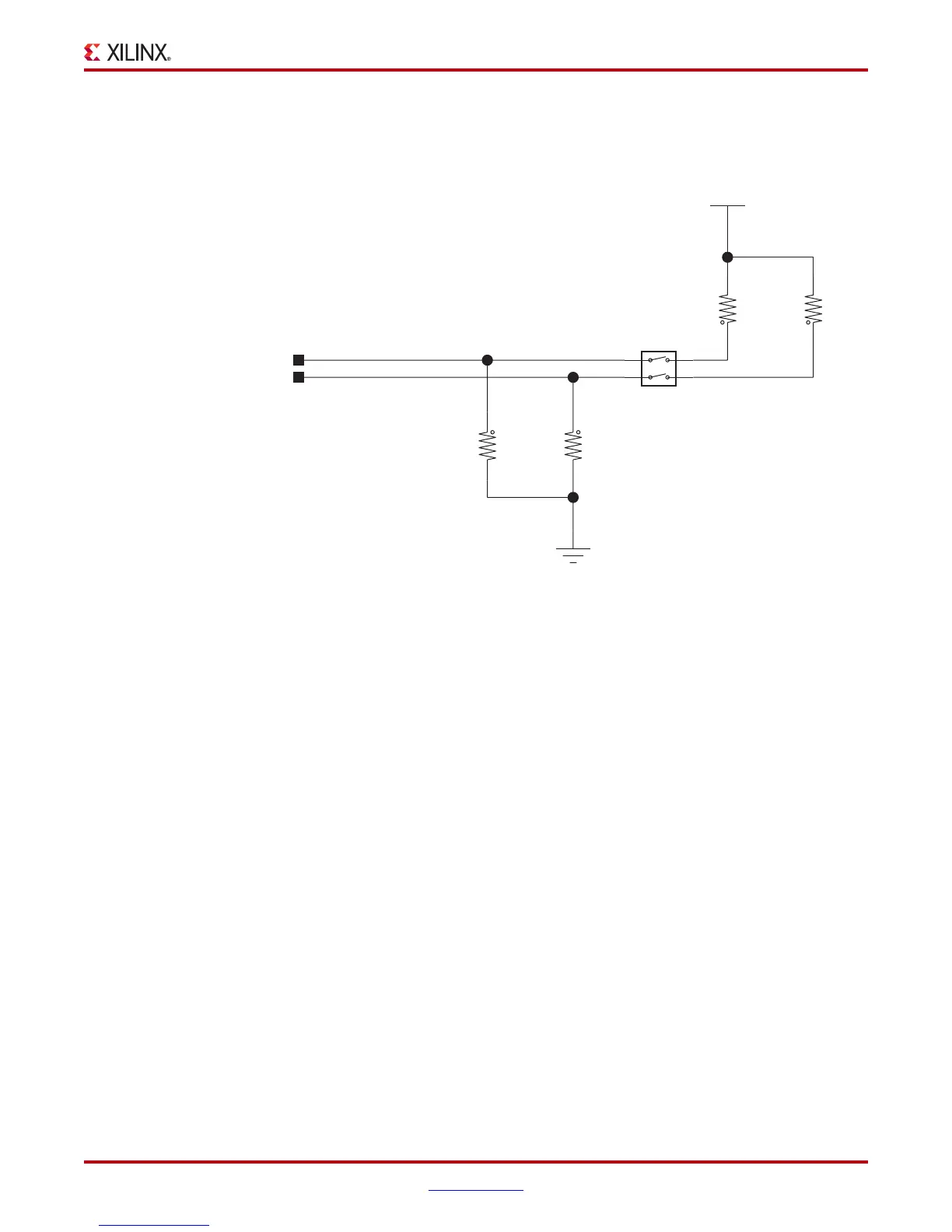

X-Ref Target - Figure 1-24
Figure 1-24: FPGA Mode DIP Switch SW1
VCC2V5
SDMX-2-X
1
2
R8
1.0K
1/10W
5%
1
2
R9
1.0K
1/10W
5%
1
2
4
3
SW1
1
2
5%
1/16W
200
R138
FPGA_M1
FPGA_M0_CMP_MISO
2
1
R139
200
1/16W
5%
UG526_24 _092409
