Xilinx SP701 User Manual

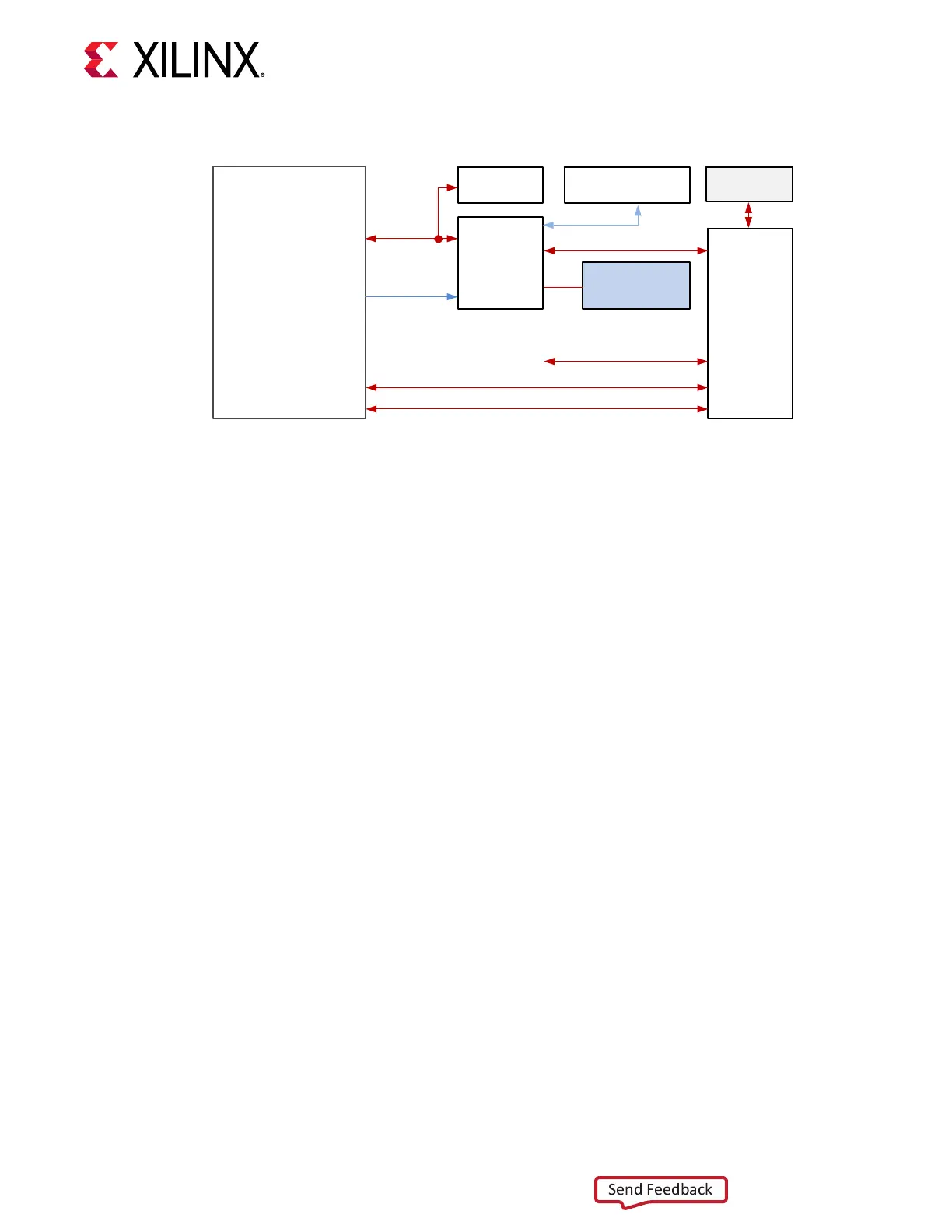

Figure 8: FTDI USB UART Circuit
Spartan-7
FPGA
MSP430
System
Controller
USB Conn
32 KHz Crystal
MC-306 32.7680K-
A0:ROHS
I2C0
GPIOs
UART_B
EEPROM
FT4232H
UART_D
JTAG_FPGA_FMC
Power Supply &
Power Management
GPIOs
UART_C
X22791-050319
The FTDI FT4232HQ data sheet is available on the Future Technology Devices Internaonal Ltd.
website. The detailed FPGA connecons for the feature described in this secon are
documented in the SP701 board XDC le, referenced in Appendix B: Xilinx Design Constraints.
10/100/1000 Mb/s Tri-speed Ethernet PHY (RGMII)
[Figure 2, callouts 8, 9]
A BECKHOFF IP ET1815, ET1816 MAC can be used to implement a 10/100/1000 Mb/s
Ethernet interface (supports EtherCAT for Industrial Ethernet applicaons) in Spartan-7 FPGA,
shown in the gure below, that connects to an external TI DP83867IRPAP Ethernet RGMII PHY
before being routed to an RJ45 Ethernet connector. The associated EEPROM has 12-byte
reserved for the board serial number on start locaon of 0x14 and 6-byte reserved for the
Ethernet MAC ID on start locaon of 0x35.
Chapter 3: Board Component Descriptions
UG1319 (v1.0) July 12, 2019 www.xilinx.com
SP701 Board User Guide 23
Send Feedback
