Xilinx SP701 User Manual

MIPI -DSI
The SP701 board provides MIPI DSI (display serial interface) support. The MIPI-DSI interface is
connected to Hirose FH34SJ-34S-0.5SH 34-pin connector J20. The MIPI-DSI interface is shown
in the following gure.

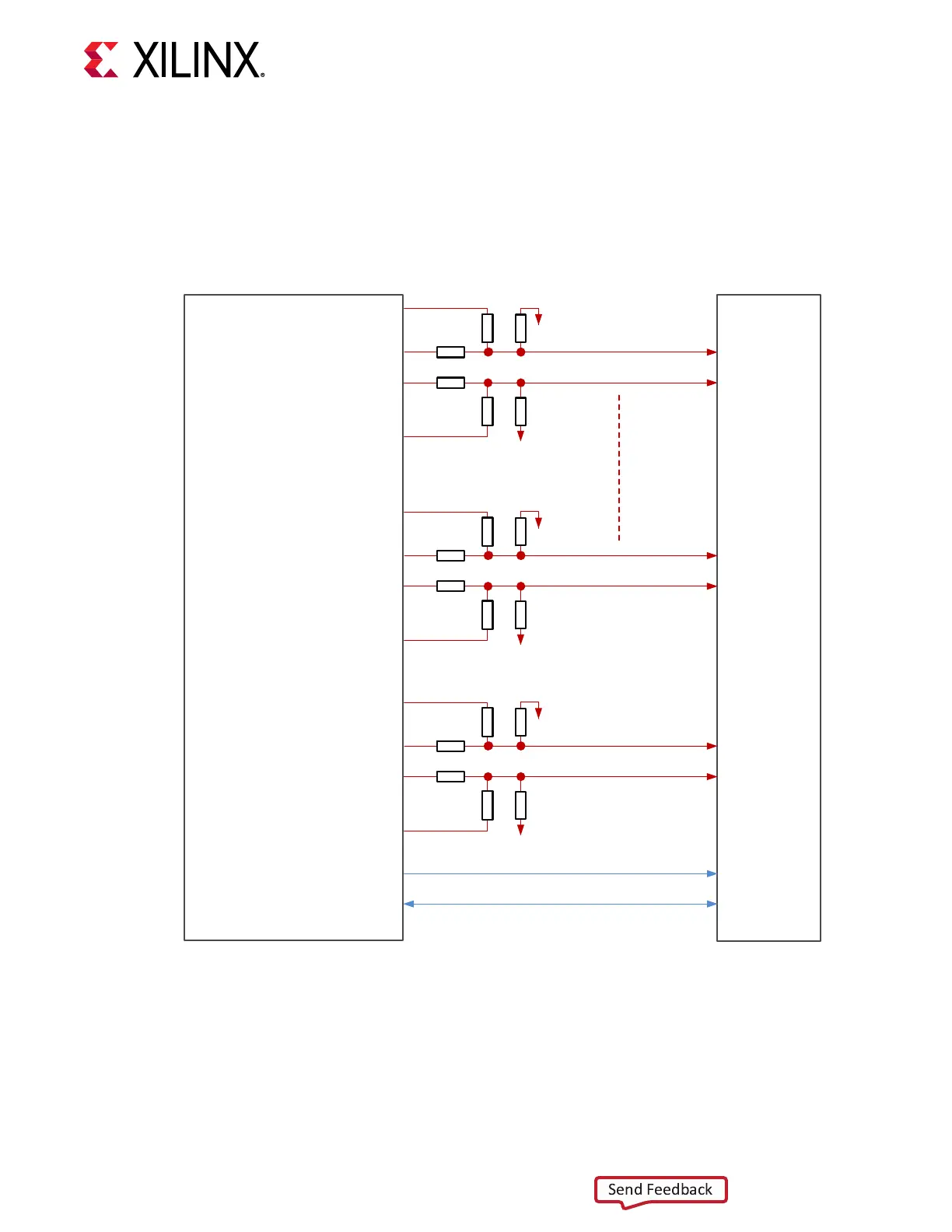

Figure 15: MIPI-DSI Interface
Display
Interface
Connector
(Slave)
DSI_D0_P
I2C3_SCL
DSI_D0_N
I2C3_SDA
150E
150E
60E
DSI_LP0_P
DSI_LP0_N
DSI_D0_N
DSI_D0_P
120E
DSI_D3_P
DSI_D3_N
DSI_LP3_P
DSI_LP3_N
DSI_D3_N
DSI_D3_P
DSI_D1_P
DSI_D1_N
DSI_D2_P
DSI_D2_N
DSI_CLK_P
DSI_CLK_N
DSI_LP_CLK_P
DSI_LP_CLK_N
DSI_CLK_N
DSI_CLK_P
60E
120E
150E
150E
60E
120E
60E
120E
150E
150E
60E
120E
60E
120E
Spartan-7 FPGA
(Master)
X22797-050319
For more informaon about MIPI, see the MIPI Alliance website.
