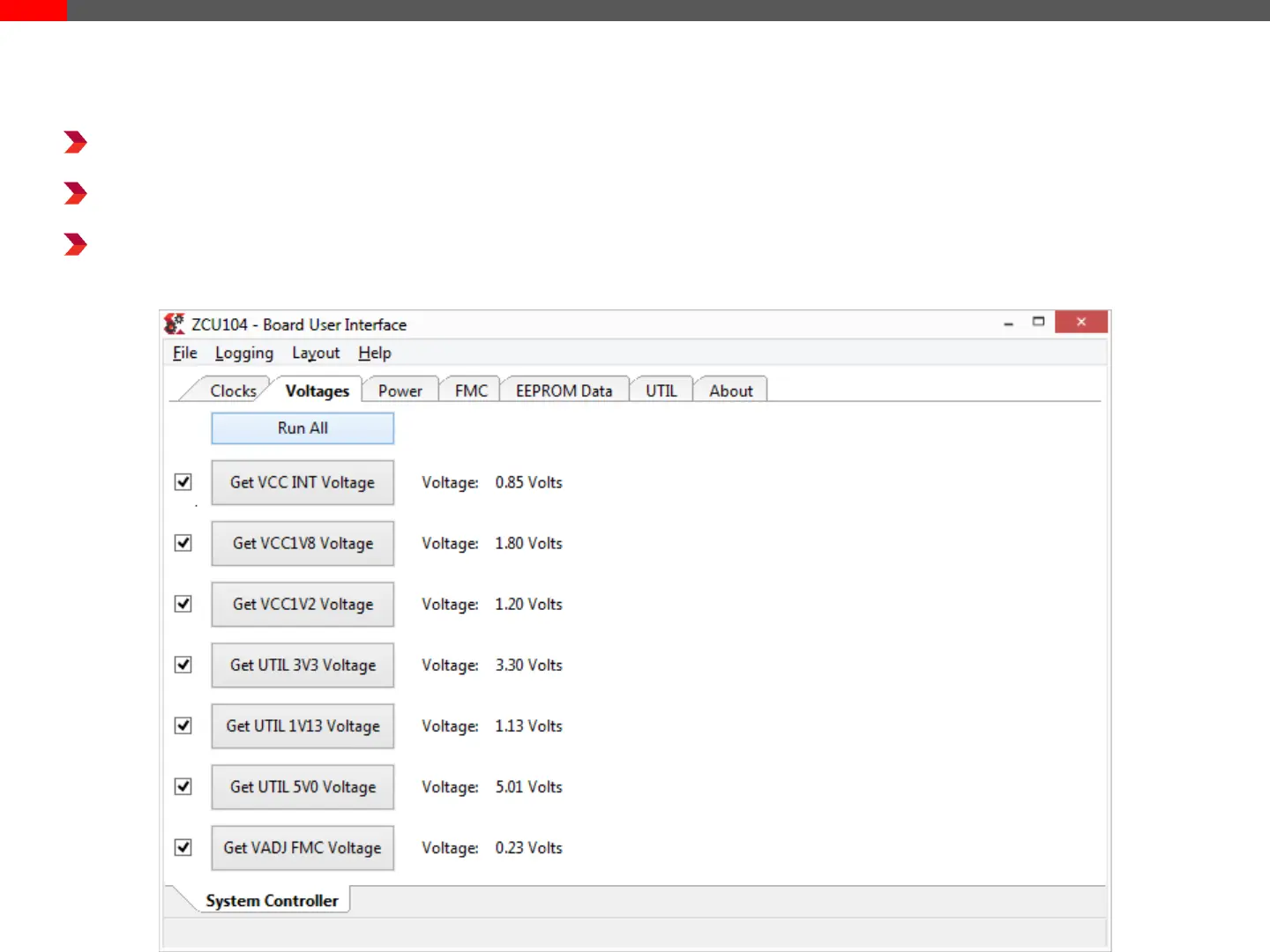

Reading onboard ZCU104 voltages

Select the Voltages tab

Click the Run All button

Observe the ZCU104 Voltages; note that VADJ is 0 V
