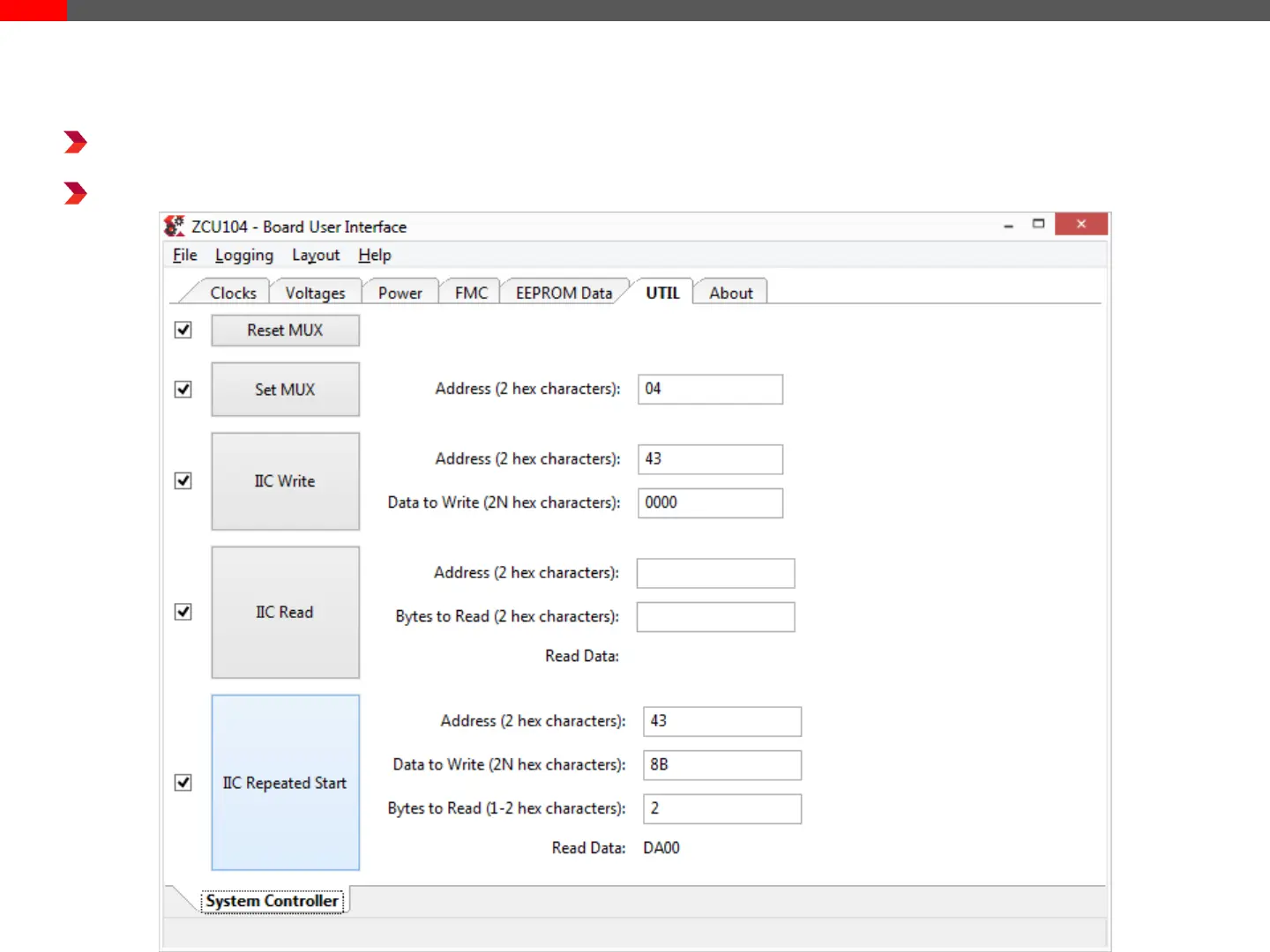

Example #2: Read data from IRPS5401

IIC Repeated Start #2: Address 43 Data 8B Bytes: 2

View raw data: DA00 (May vary from reading to reading)
