Read INA226 Registers

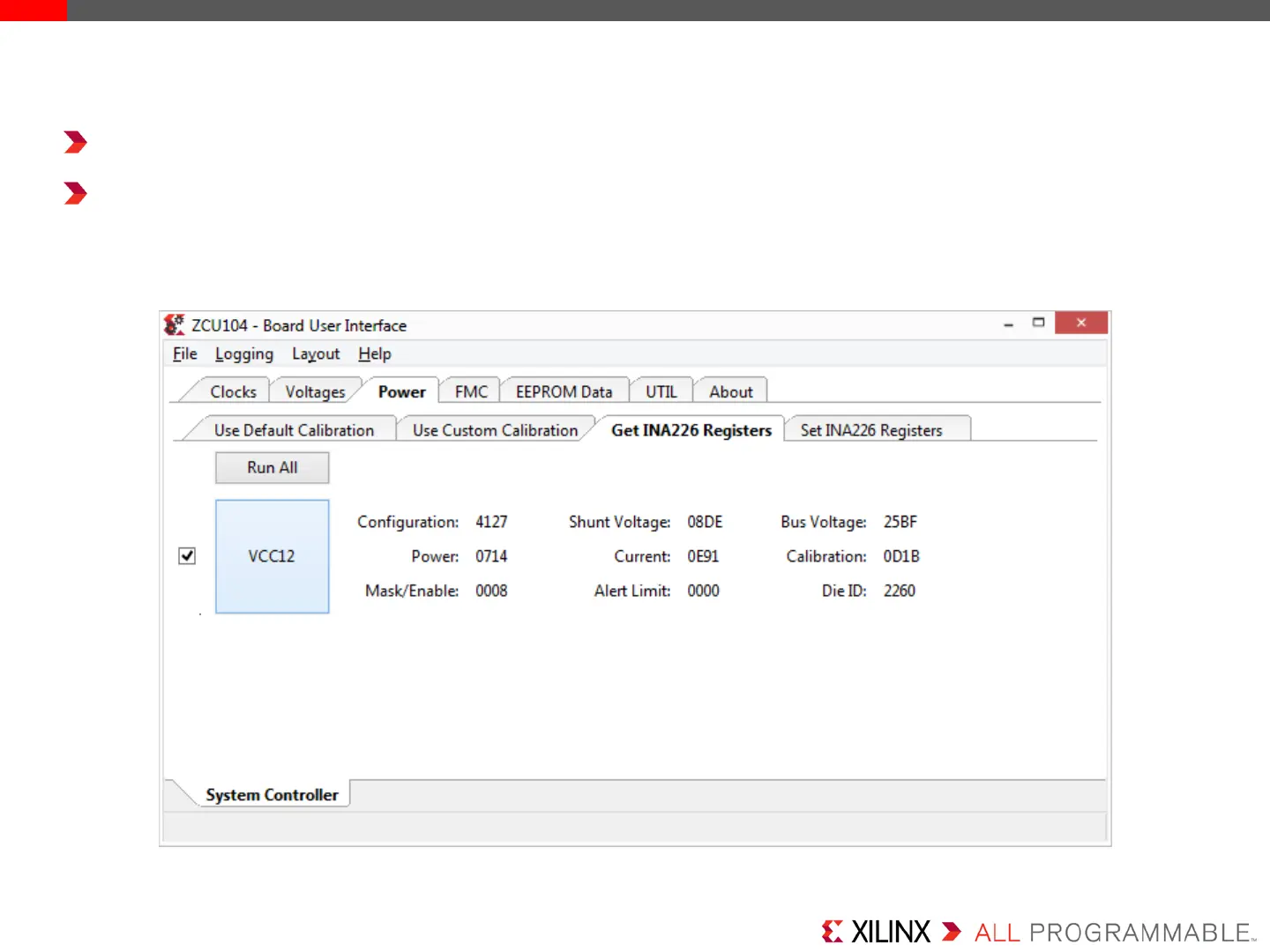

Select the Get INA226 Registers tab

Click the VCC12 button and observe the INA226 Registers settings

Note: Presentation applies to the ZCU104
