Reading FMC EEPROM

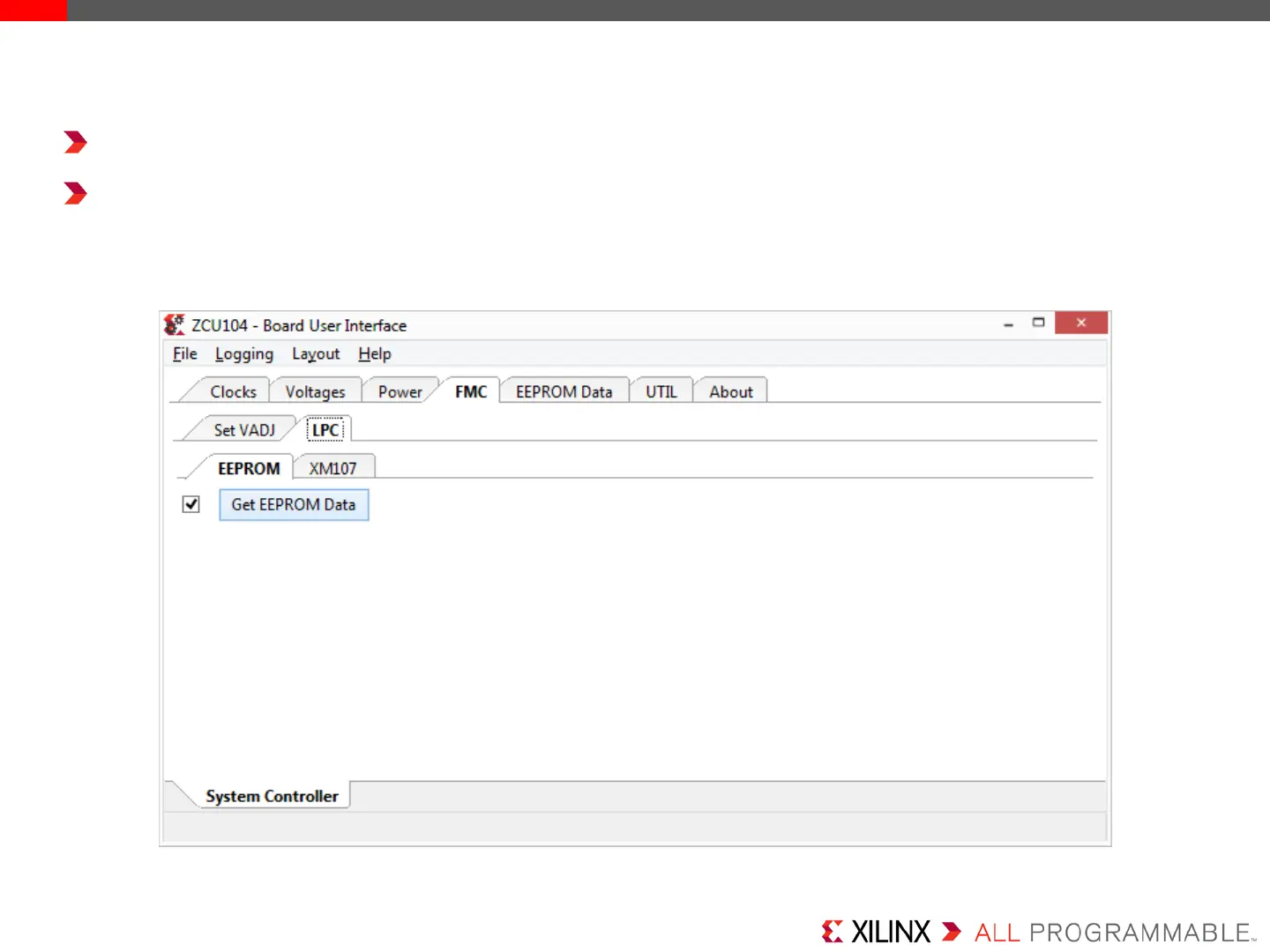

With an optional FMC card attached, select the LPC tab

Under the EEPROM tab, click the Get EEPROM Data button

Note: Presentation applies to the ZCU104
