Xilinx Zynq UltraScale+ User Manual

Zynq UltraScale+ VCU TRD User Guide 66
UG1250 (v2019.1) May 29, 2019 www.xilinx.com
Chapter 5: Hardware Platform
SDI TX Display Pipeline
The SDI TX display pipeline is shown in Figure 5-9.
The SMPTE UHD-SDI Transmitter Subsystem accepts AXI4 Video streams and outputs native
SDI streams by using Xilinx transceivers as the physical layer.
The Video Mixer enables you to mix video layers and allows mixing up to four streaming or
memory layers. Each layer can be up to 4K resolution and can perform color space
conversion. The TRD design uses memory layer 1 to fetch video data.
X-Ref Target - Figure 5-9

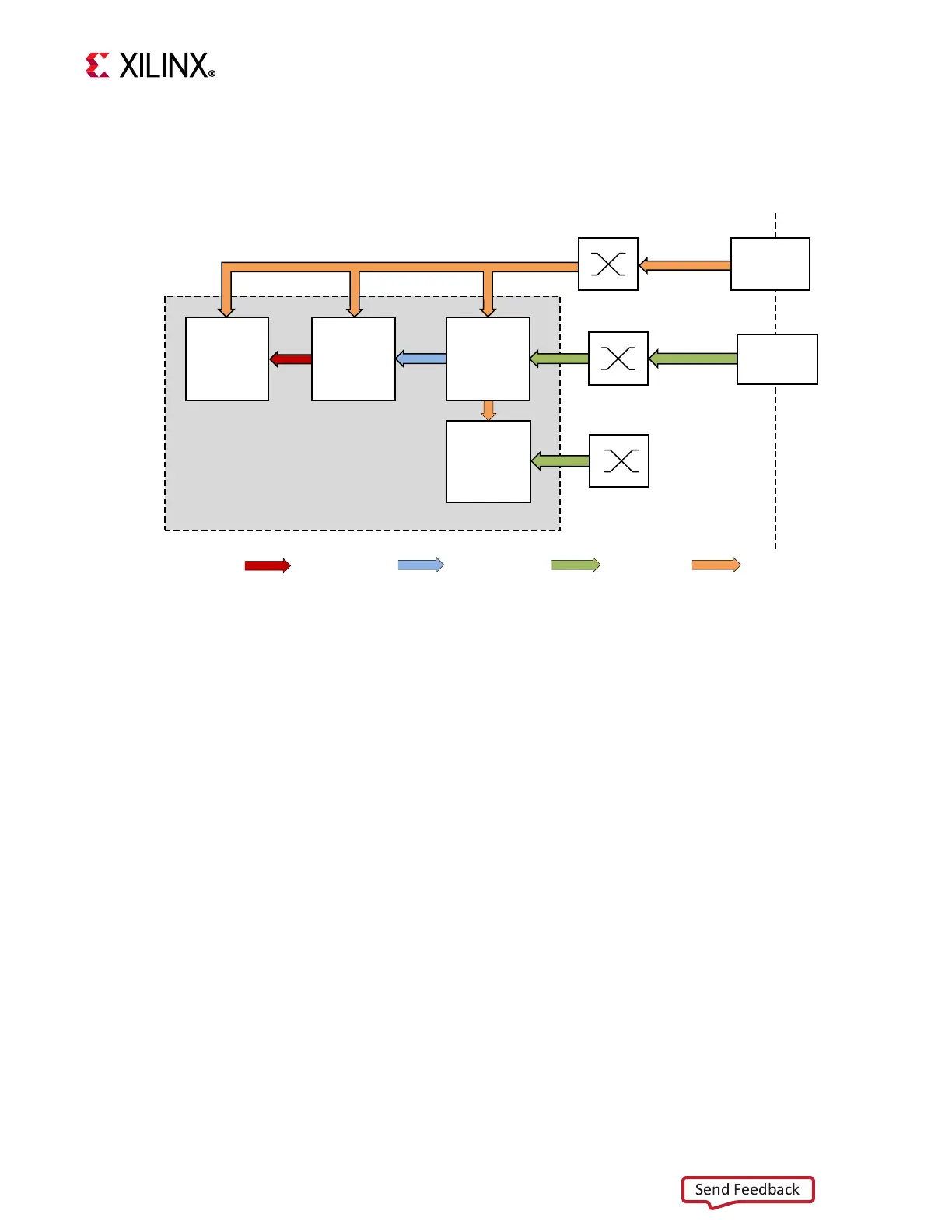

Figure 5-9: SDI TX Display Pipeline
32
SDI GT PHY SDI Tx SS Video Mixer
Rx Data AXI-Stream AXI-MM AXI-Lite
128
32
128
HPM0/1
32
PL PS
HP0
64
Audio
Formatter
32
SDI Tx Pipeline
X21034-051319
Send Feedback

Xilinx Zynq UltraScale+ Specifications

General

Manufacturer	Xilinx
Model	Zynq UltraScale+
Category	SoC
Processor Cores	Quad-core ARM Cortex-A53, Dual-core ARM Cortex-R5
FPGA Fabric	UltraScale+ FPGA
Memory Interfaces	DDR4, DDR3, LPDDR3, LPDDR4
Connectivity	Gigabit Ethernet, USB 3.0, SATA, PCIe
Video Codecs	H.264
Power Consumption	Varies depending on specific device configuration and usage
Operating Temperature	Commercial: 0°C to +85°C, Industrial: -40°C to +100°C
