Xinje DS3E Series

50
4-6. Power-off brake(BK)

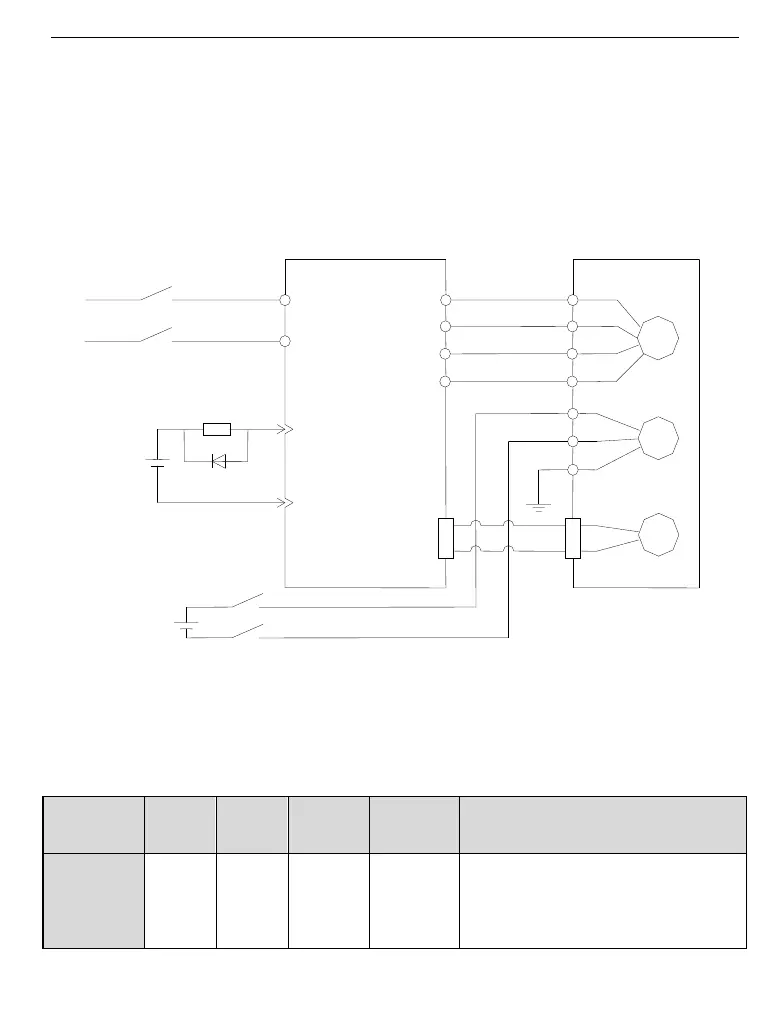

1. Wiring example
The ON/OFF circuit of brake includes sequence output signal /BK and brake power. The
following diagram shows a standard wiring example.
Note: (1) the working voltage of brake is DC 24V.
(2) In the above diagram, BK signal output from SO1, please set P5-44 to n.0011. if it outputs
from SO2, please set P5-44 to n.0002.
2. Brake signal
Parameter
Name
Type
Default
setting
Meaning
Modify
P5-44
/BK
Output
n.0000
Not
distribute
output
Range 0000-0002, distribute to
output terminal through P5-44.
When P5-44=0001, it means output
+24V
BK-RY
L
N
U
V
W
PE
SO1
COM
U
V
W
PE
M
PG
CN2
BK
1
2
3
Servo drive
+24V
BK-RY
Power supply
Servo motor with brake
