Xinje DS3E Series Manual

67

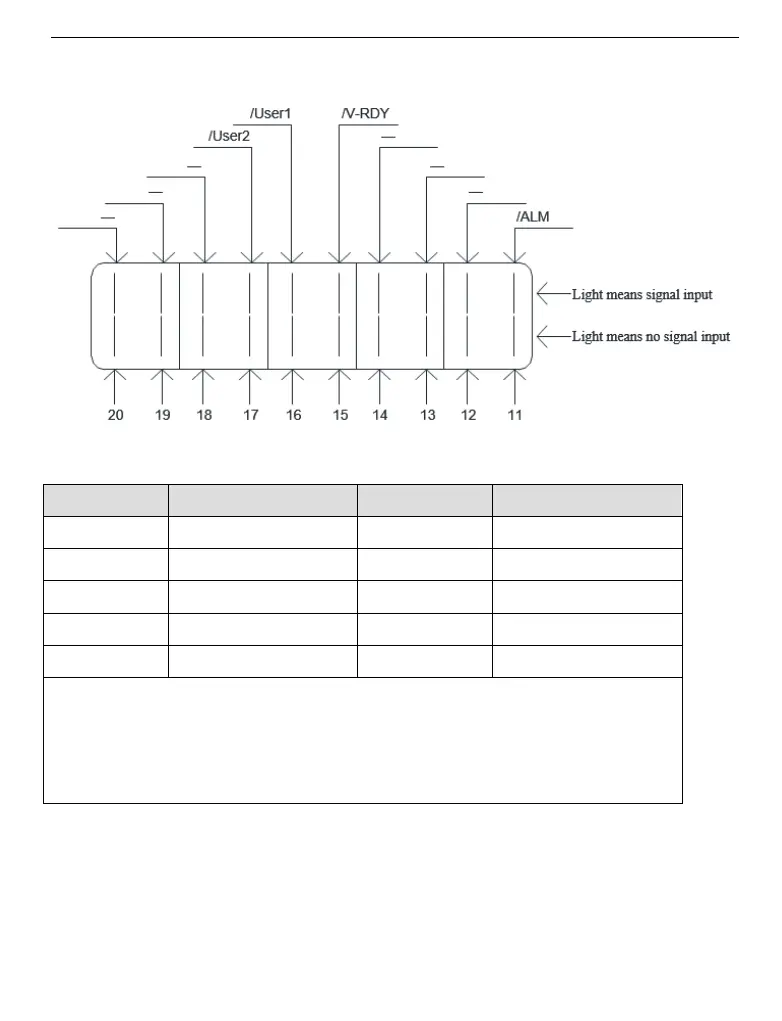

 U0-24 output signal status
 U0-24 output signal 2 distribution
Segment code
Explanation
Segment code
Explanation
11
Alarm (/ALM)
12
—
13
—
14
—
15
Speed reach (/V-RDY)
16
Self-defined output 1
17
Self-defined output 2
18
—
19
—
20
—
Note: read the status through communication, the binary value from right to left are
related to /ALM, “-“. 0 means no output, 1 means has output. For example:
0x0001 means /ALM has output, 0x0041 means /ALM and self-defined output 2
has output.
Note: “—“ is reserved bit, it is always 0.
