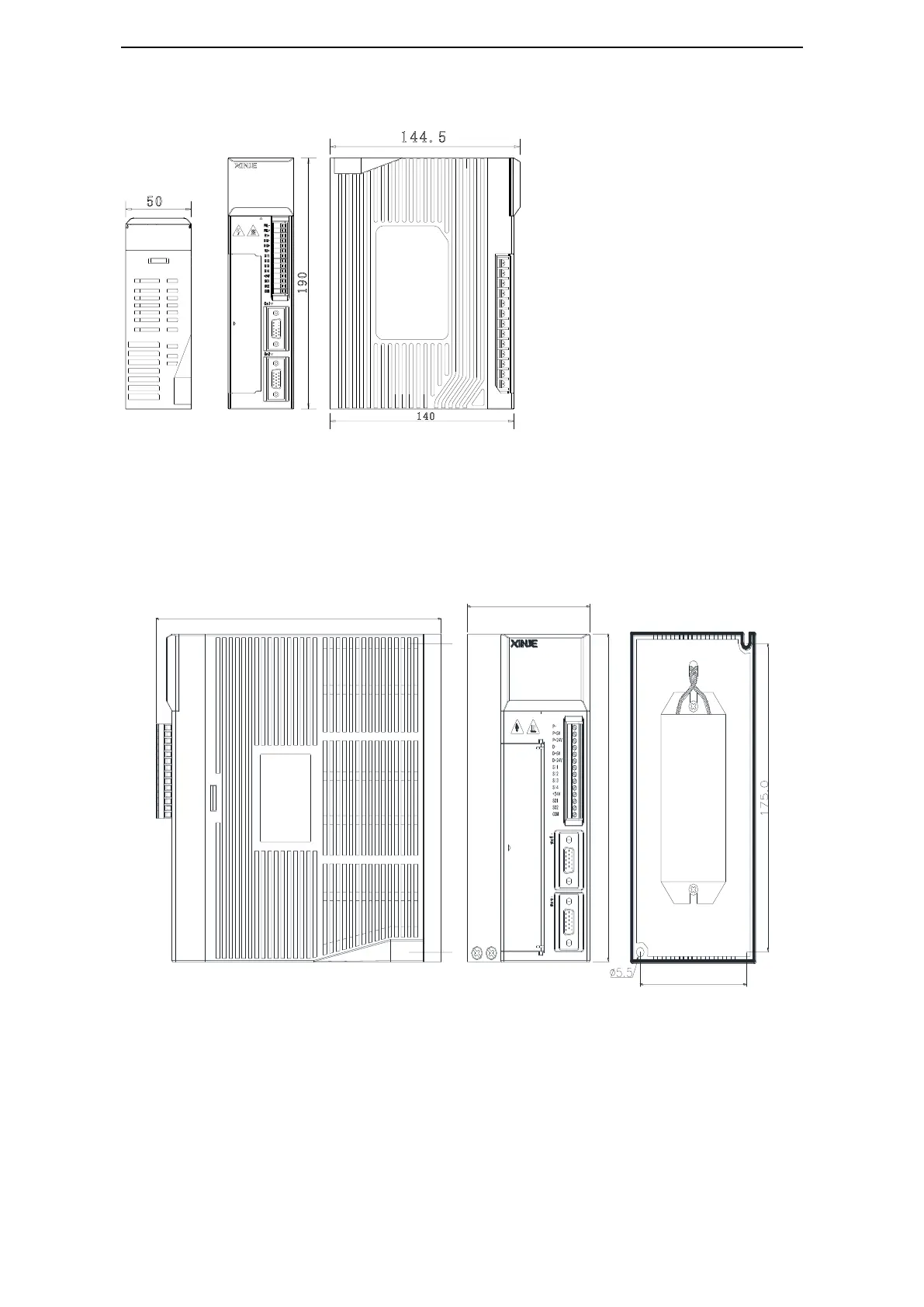

7-2-2．Servo drive dimensions
 DS3L-20P1-PFB/ DS3L-20P2-PFB (unit: mm)
 DS3-20P1-PQA/ DS3-20P2-PQA/ DS3-20P4-PQA/ DS3-20P7-PQA
 DS3E-20P1-PFA/ DS3E-20P2-PFA/ DS3E-20P4-PFA/ DS3E-20P7-PFA
 DS3L-20P1-PFA/ DS3L-20P2-PFA/ DS3E-20P4-PFA/ DS3E-20P7-PFA
 DS3-20P2-PNA/ DS3-20P4-PNA/ DS3-20P7-PTA
Unit: mm
 DS3-21P5-PQA/ DS3-22P3-PQA/ DS3-41P5-PQA
 DS3E-21P5-PFA/ DS3E-22P3-PFA/ DS3E-22P6-PFA/ DS3E-41P5-PFA
 DS3L-21P5-PFA/ DS3L-22P3-PFA/ DS3L-22P6-PFA/ DS3L-41P5-PFA
 DS3-21P5-PTA/ DS3-22P3-PTA
70.0
59.0
186.0
166.0
