7-1-3．Servo motor dimensions

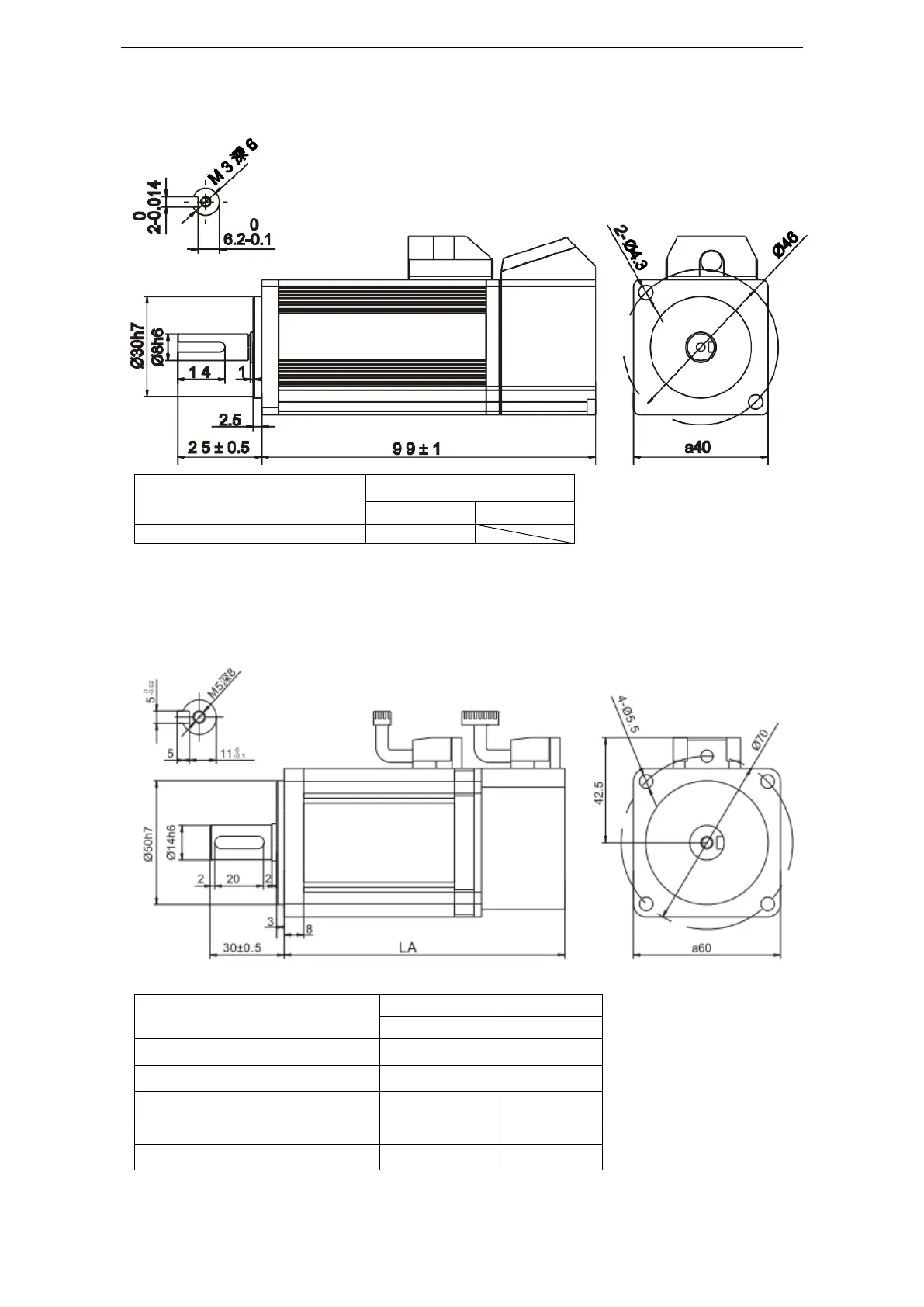

 Dimensions of 40 series servo motors (unit: mm)
Motor type
LA
Normal
With brake
X2-40ST-M00330□□-20P1
99±1
 Dimensions of 60 series servo motors (unit: mm)
Motor type
LA
Normal
With brake
MS-60ST-M00630□□-20P2
115.5
159.5
MS-60ST-M00630□□S-20P2
90
127
MS-60ST-M01330□□-20P4
145
189
MS-60ST-M01330□□S-20P4
112
149
X2-60ST-M01330□□-20P4
133
-
