Xinje DS3L Series

52
5
Ready (/S-RDY)
6
Torque limit (/CLT)
7
Speed limit detection (/VLT)
8
Brake lock (/BK)
9
Warn (/WARN)
10
Output near (/NEAR)
Note: read the status through communication, the binary value from right to left are related to
/COIN_HD, /COIN. 0 means no output, 1 means has output. For example: 0x0001 means
/COIN_HD has output, 0x0201 means /COIN_HD and /NEAR has output.
 U0-24 output signal status

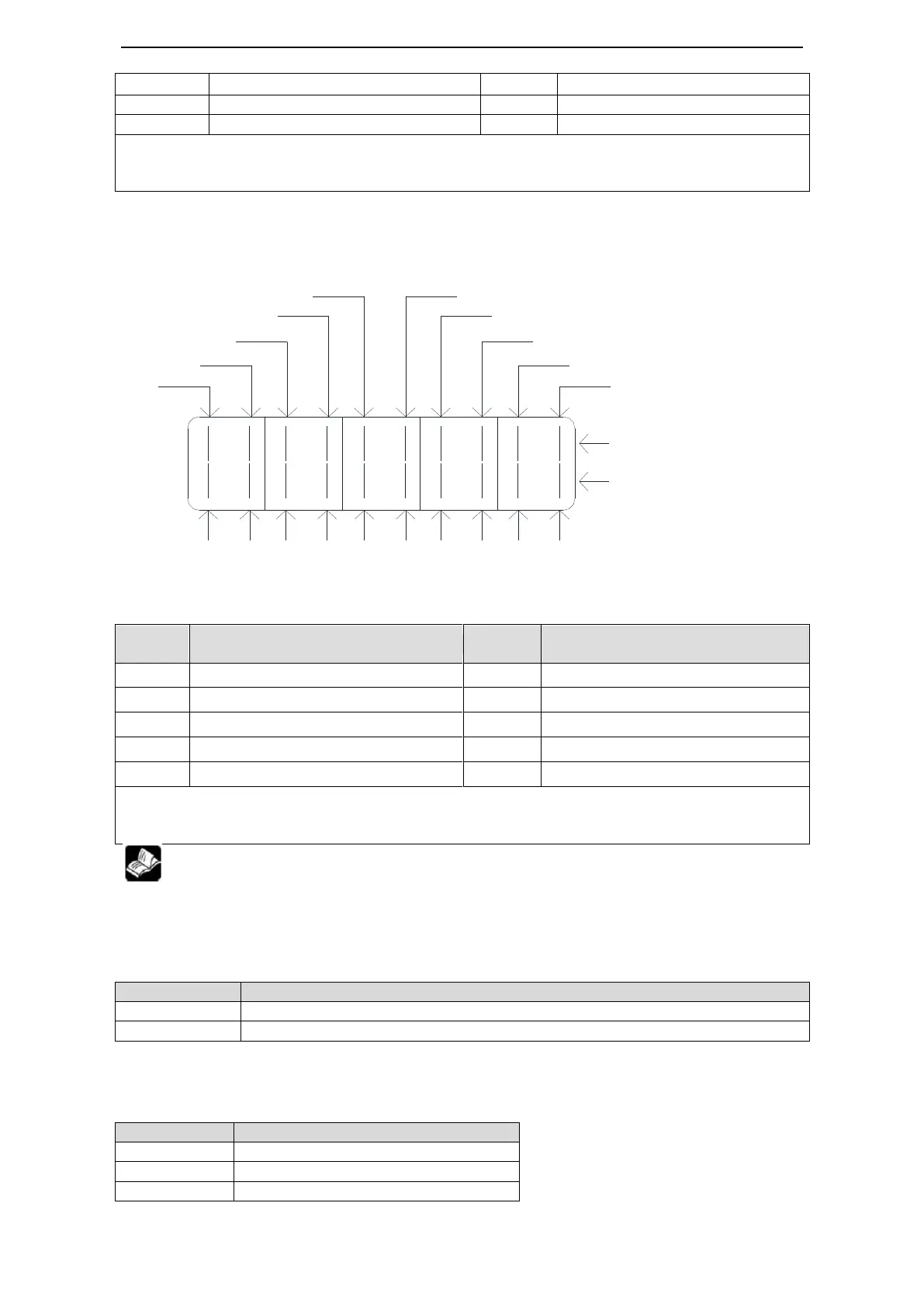

 U0-24 output signal 2 assignment
Segment
code
Explanation
Segment
code
Explanation
11
Alarm (/ALM)
12
—
13
—
14
—
15
Speed reach (/V-RDY)
16
Self-defined output 1
17
Self-defined output 2
18
—
19
—
20
—
Note: read the status through communication, the binary value from right to left are related to /ALM,
“-“. 0 means no output, 1 means has output. For example: 0x0001 means /ALM has output,
0x0041 means /ALM and self-defined output 2 has output.
“—“ is reserved bit, it is always 0.
4-4．Auxiliary Function
Group No.
Content
F0-**
Clean the alarm, back to out of factory settings, clean the offset
F1-**
Jog run, test run, zero, enable
4-4-1．F0-XX
Function No.
Description
F0-00
Clean the alarm
F0-01
Back to out of factory settings
F0-02
Clean the offset
/ALM
—
—
—
/V-RDY
—
—
—
/User2
/User1
Light means signal input
Light means no signal input
11
12
13
14
15
16
17
18
19
20
