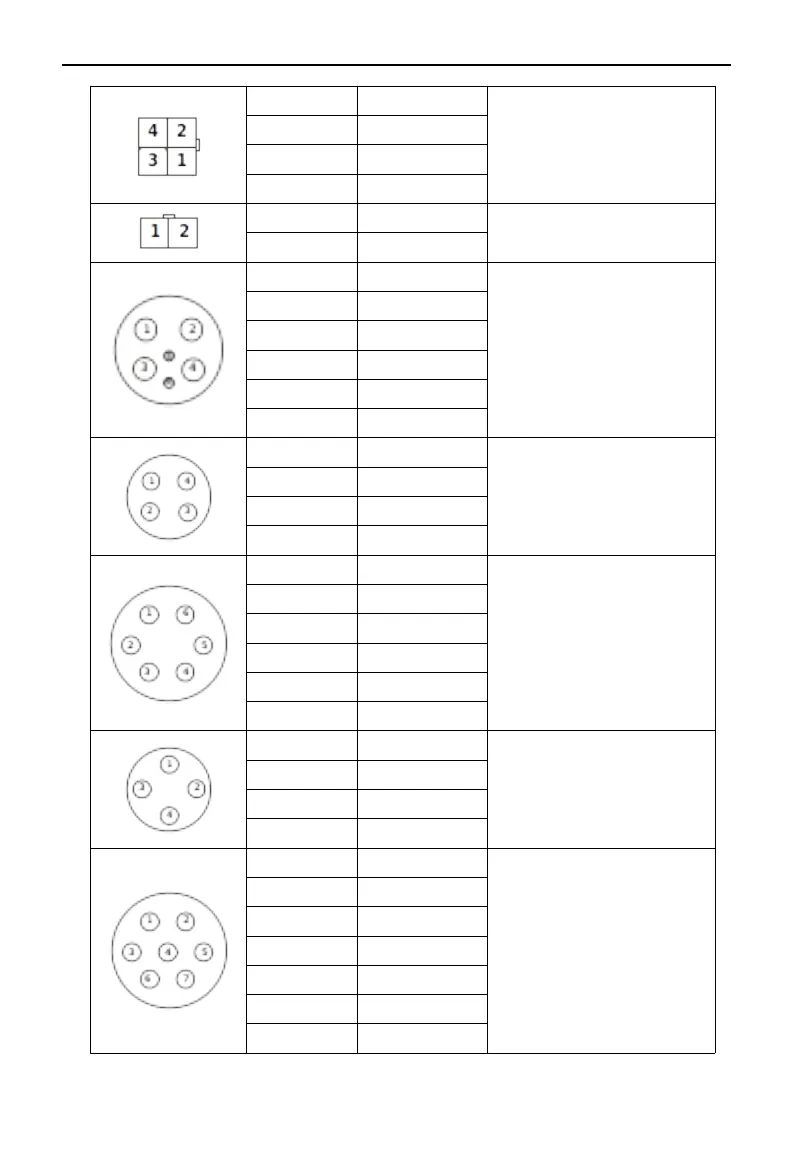

1 U
40, 60, 80 flange
-S01/B1 motor
2 W
3 V
4 PE
1 BK+
40, 60, 80 flange
-S01/B1 motor with brake
2 BK-
1 PE
40, 60, 80 flange
-S02 motor
2 U
3 V
4 W
5 BK+
6 BK-
1 U
40, 60, 80 flange
B2 motor
2 W
3 V
4 PE
1 U
40, 60, 80 flange
B2 motor with brake
2 W
3 V
4 PE
5 BK+
6 BK-
1 PE
110 and above motor (include 130
flange medium inertia motor
without brake)
2 U
3 V
4 W
1 PE
130 flange medium inertia motor
with brake
2 U
3 V
4 W
5 BK+
6 BK-
7 /
