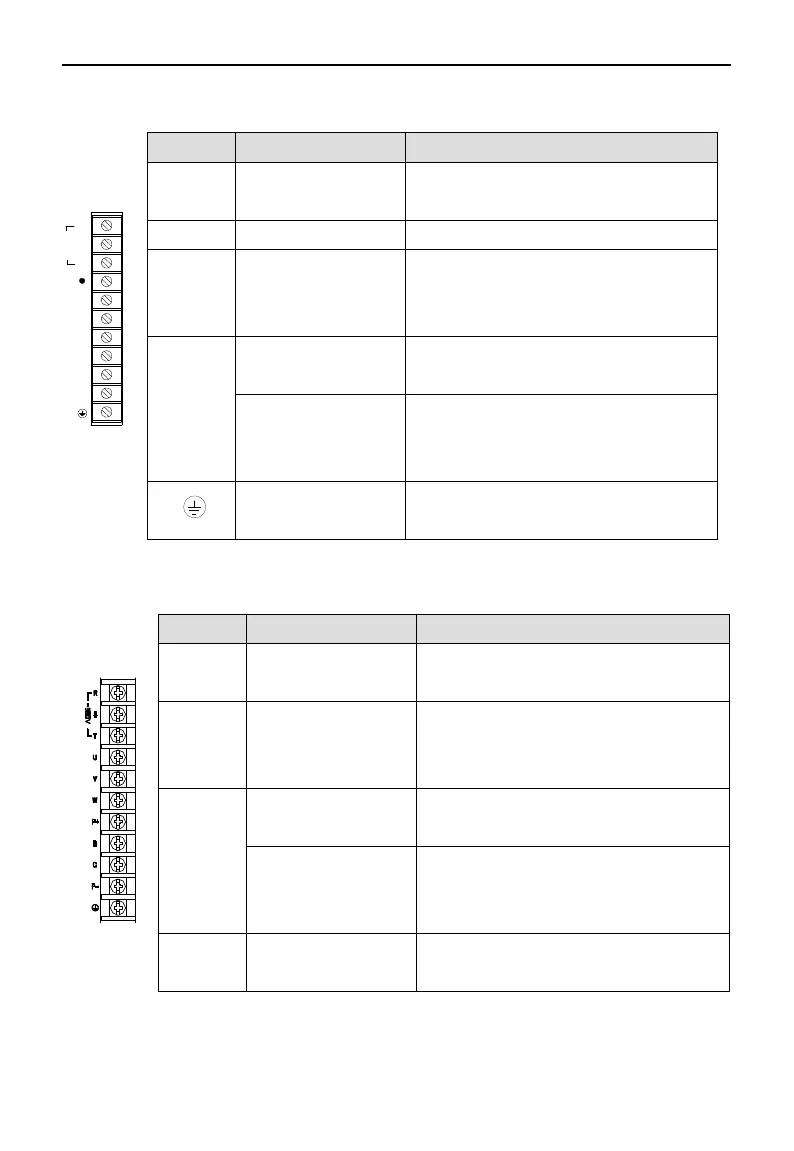

DS5E-41P5-PTA
Terminal Function Explanation
R/S/T
Power supply input of
main circuit
3-phase AC 380~440V, 50/60Hz
● Vacant terminal -
U, V, W Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+ and
C, disconnect P+ and D, P0-25= power value,
P0-26= resistor value
Power supply input of
main circuit
Connect to ground terminal of motor, then
connect to the ground
DS5E-41P0-PTA
Terminal Function Explanation
R, S, T
Power supply input of
main circuit
3-phase AC 380~440V, 50/60Hz
U, V, W Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+ and
C, disconnect P+ and D, P0-25= power value,
P0-26= resistor value
P+, P- Grounding terminal
Connect to ground terminal of motor, then
connect to the ground
34
