Xinje DS5L Series Manual

MS5H-60STE-C□01330□□-20P4-S01/S02 111 146
MS-60STE-T01330-20P4-D01 145 189 -
 MS6 motor
∅70
a60
4- ∅5. 5
30± 0. 5
Ø14h6 Ø50h7
LA
20
3
8
5
P9
11
0. 0
- 0. 1
M5 8深
Motor model
LA±1
Inertia level
Normal
With
brake
MS6H-60C□301B□□-20P4 119 151 High inertia
MS6S-60C□301B□□-20P4 107 139 Low inertia
MS6H-60C□301B□□-20P2 90 121 High inertia

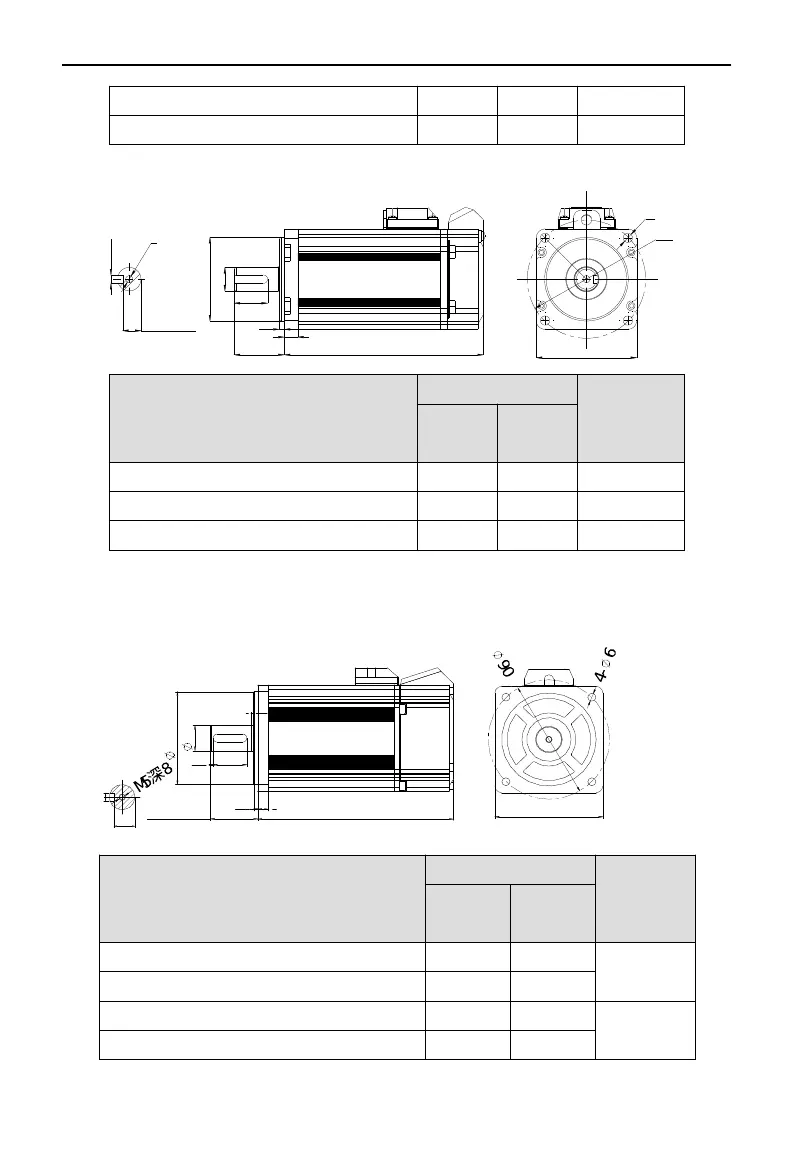

 80 series motor installation dimension Unit: mm
 MS5 motor
a80
70h7
6
0
- 0. 02
15, 5
0
- 0, 1
3 8
35± 0. 5
25
19h6
2
2
LA
Motor model
LA±1
Inertia level
Normal
With
brake
MS5S-80STE-C□02430□□-20P7-S01/S02 107 144
Low inertia
MS5S-80STE-C□03230□□-21P0-S01/S02 128 165
MS5H-80STE-C□02430□□-20P7-S01/S02 119 156
High inertia
MS5H-80STE-C□03230□□-21P0-S01/S02 140 177
