Xinje DS5L1-20P4-PTA User Manual

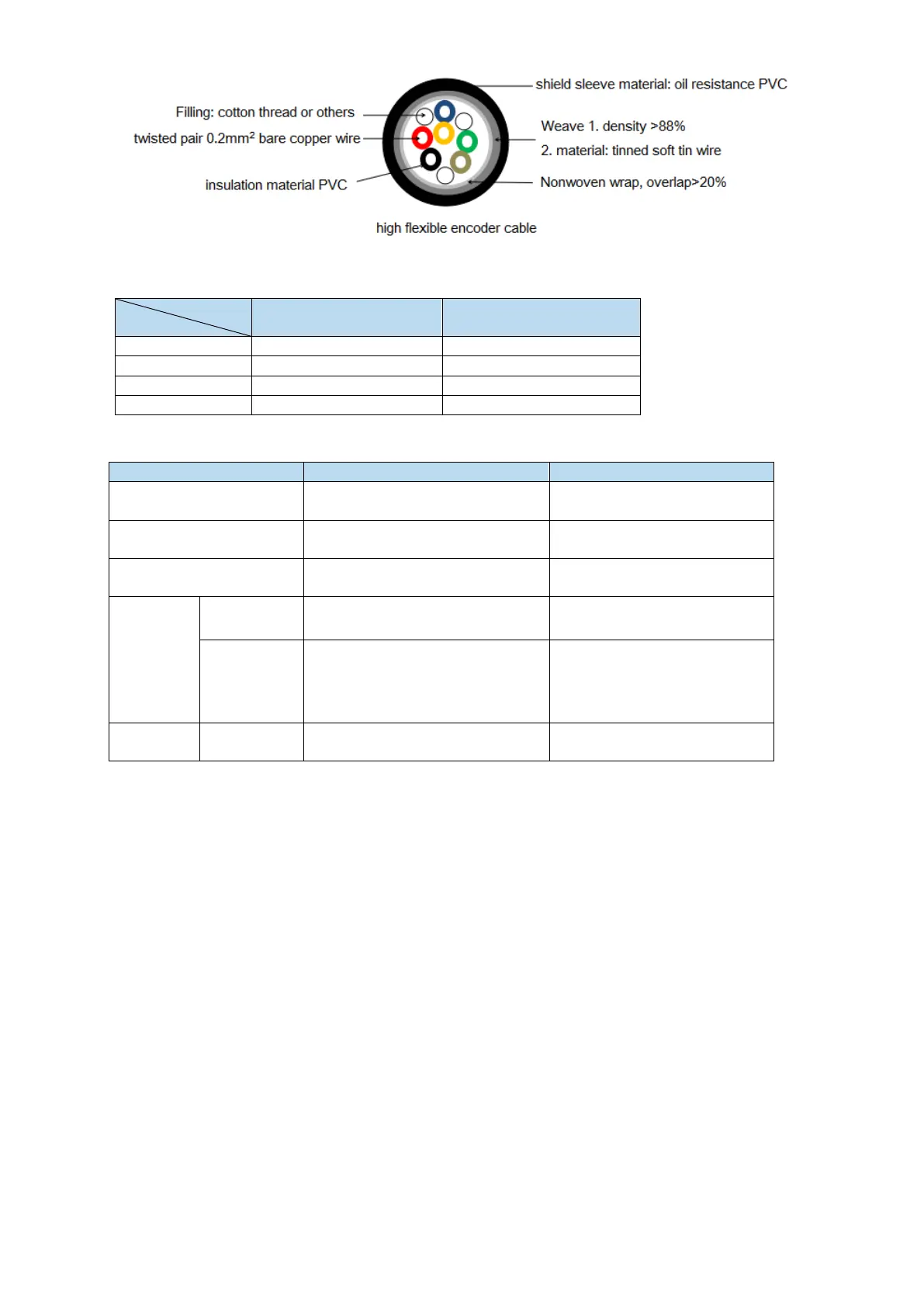

2. Cable diameter specification
type
power
Encoder cable
Power cable
100W
4*0.2mm²+2*0.3mm²
4*0.75mm²
200W
4*0.2mm²+2*0.3mm²
4*0.75mm²
400W
4*0.2mm²+2*0.3mm²
4*0.75mm²
750W
4*0.2mm²+2*0.3mm²
4*0.75mm²
3. Cable performance specification
Performance
Normal cable
High flexible cable
Ordinary temperature
resistance
-20℃~80℃
-20℃~80℃
Encoder cable withstand
voltage
1000V/min
1000V/min
Power cable withstand
voltage
3000V/min
3000V/min
Mobile
installation
Bending
radius
Travel ＜10m，7.5*D；
Travel ≥10m，10*D；
Travel ＜10m，7.5*D；
Travel ≥10m，10*D；
Bending
resistance
times
Travel ＜10m, ≥1 million times；
Travel ≥10m, ≥2 million times；
Travel ＜10m, ≥3 million
times；
Travel ≥10m, ≥5 million
times；
Fixed
installation
Bending
radius
5*D
5*D
Note: D represents the finished product cable diameter.
