Xinje DS5L1-20P4-PTA User Manual

3.1 Main circuit wiring

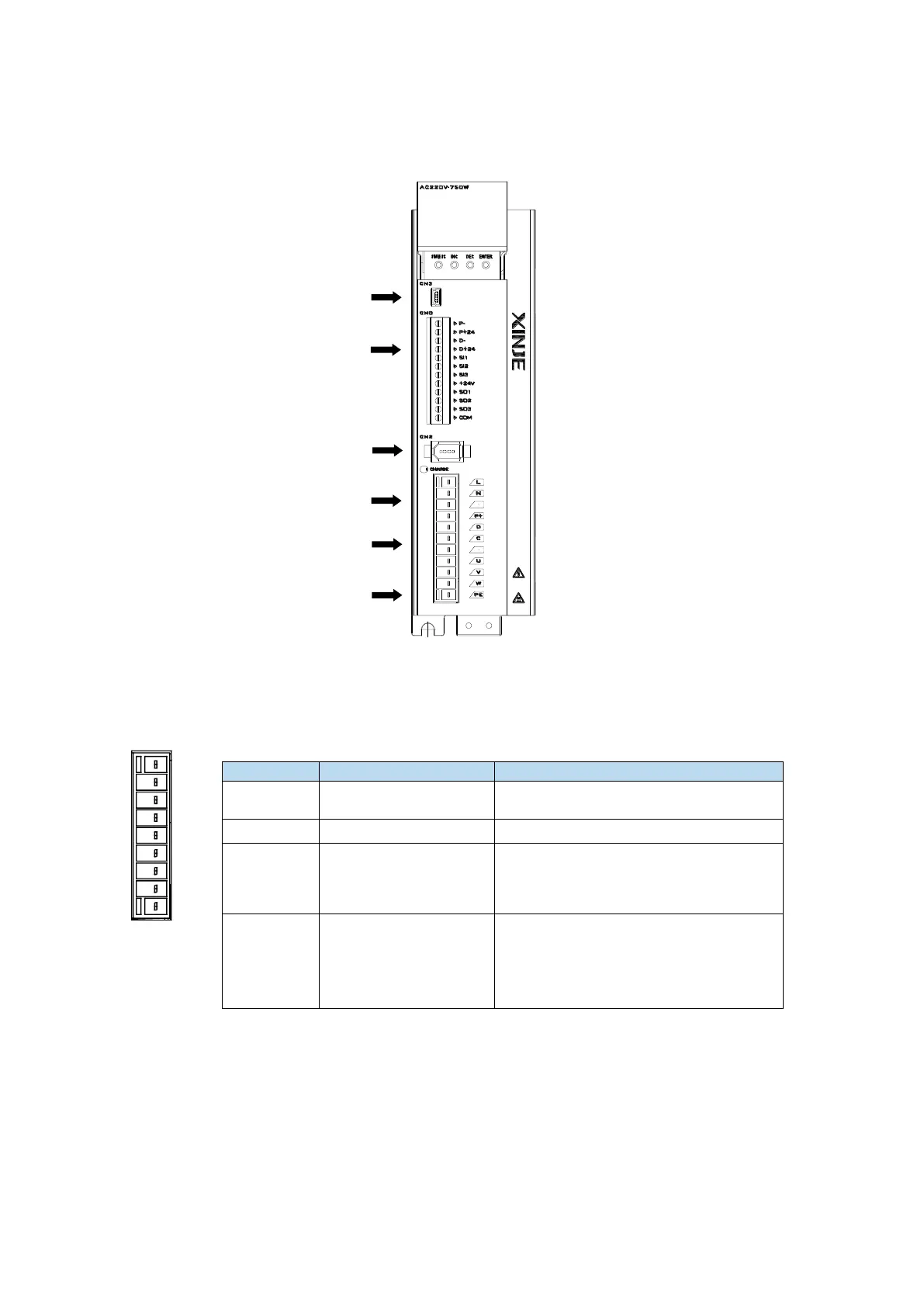

3.1.1 Servo driver terminal arrangement
3.1.2 Main circuit terminal
L
N
·
P+
C
U
V
W
PE
 DS5L1-20P1-PTA, DS5L1-20P2-PTA, DS5L1-20P4-PTA
Terminal
Function
Explanation
L/N
Power supply input of
main circuit
Single phase AC 200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W,
PE
Motor terminals
Connect the motor
Note: the ground wire is on the terminal,
please check it before power on!
P+, C
External regenerative
resistor
Connect regenerative resistor between P+
and C, P0-25= power value, P0-26=
resistor value
RS232 port
CN0: pulse,
direction, I/O
signal interface
CN2: encoder
interface
Power supply
Regenerative
resistance
Motor
wiring
