Xinje DS5L1-20P4-PTA User Manual

L
N
·
P+
C
U
V
W
PE
D
·

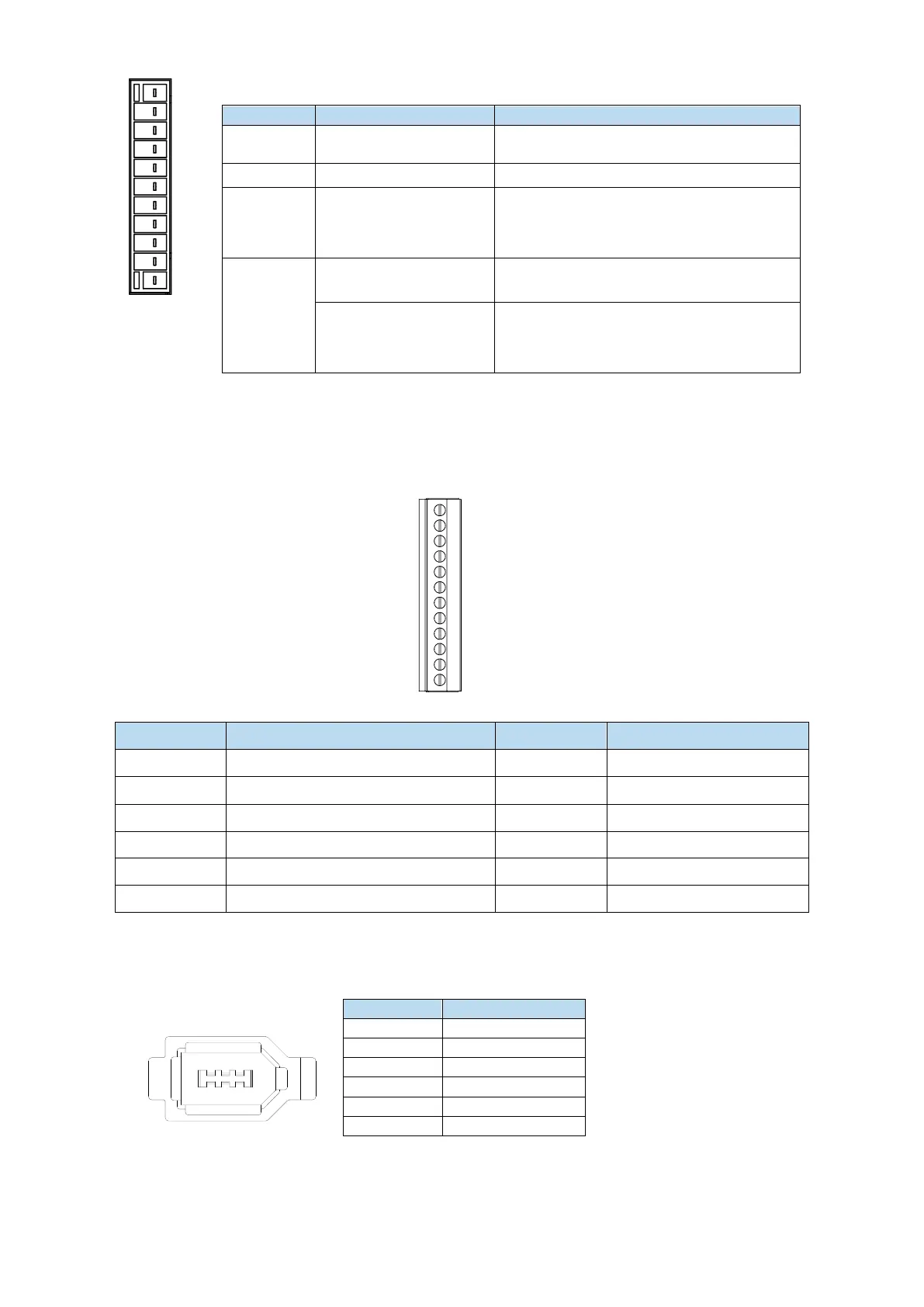

 DS5L1-20P7-PTA
Terminal
Function
Explanation
L/N
Power supply input of
main circuit
Single phase AC 200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W,
PE
Motor terminals
Connect the motor
Note: the ground wire is on the terminal,
please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, P0-25= power
value, P0-26= resistor value
3.1.3 CN0, CN2 terminal
3.1.3.1 CN0 terminal
P-
P+24
D-
P+24
SI1
SI2
SI3
+24V
SO1
SO2
SO3
COM
 CN0 terminal explanation
Name
Explanation
Name
Explanation
P-
Pulse input PUL-
SI3
Input terminal 3
P+24
Open collector connection
+24V
Input +24V
D-
Direction input DIR-
SO1
Output terminal 1
D+24
Open collector connection
SO2
Output terminal 2
SI1
Input terminal 1
SO3
Output terminal 3
SI2
Input terminal 2
COM
Output terminal ground
3.1.3.2 CN2 terminal
The terminals of the CN2 connector are arranged as follows (faced solder plates):
1
2
6
5
4
3
No.
Definition
1
5V
2
GND
3
/
4
/
5
485-A
6
485-B
