Xinje DS5L1-20P4-PTA User Manual

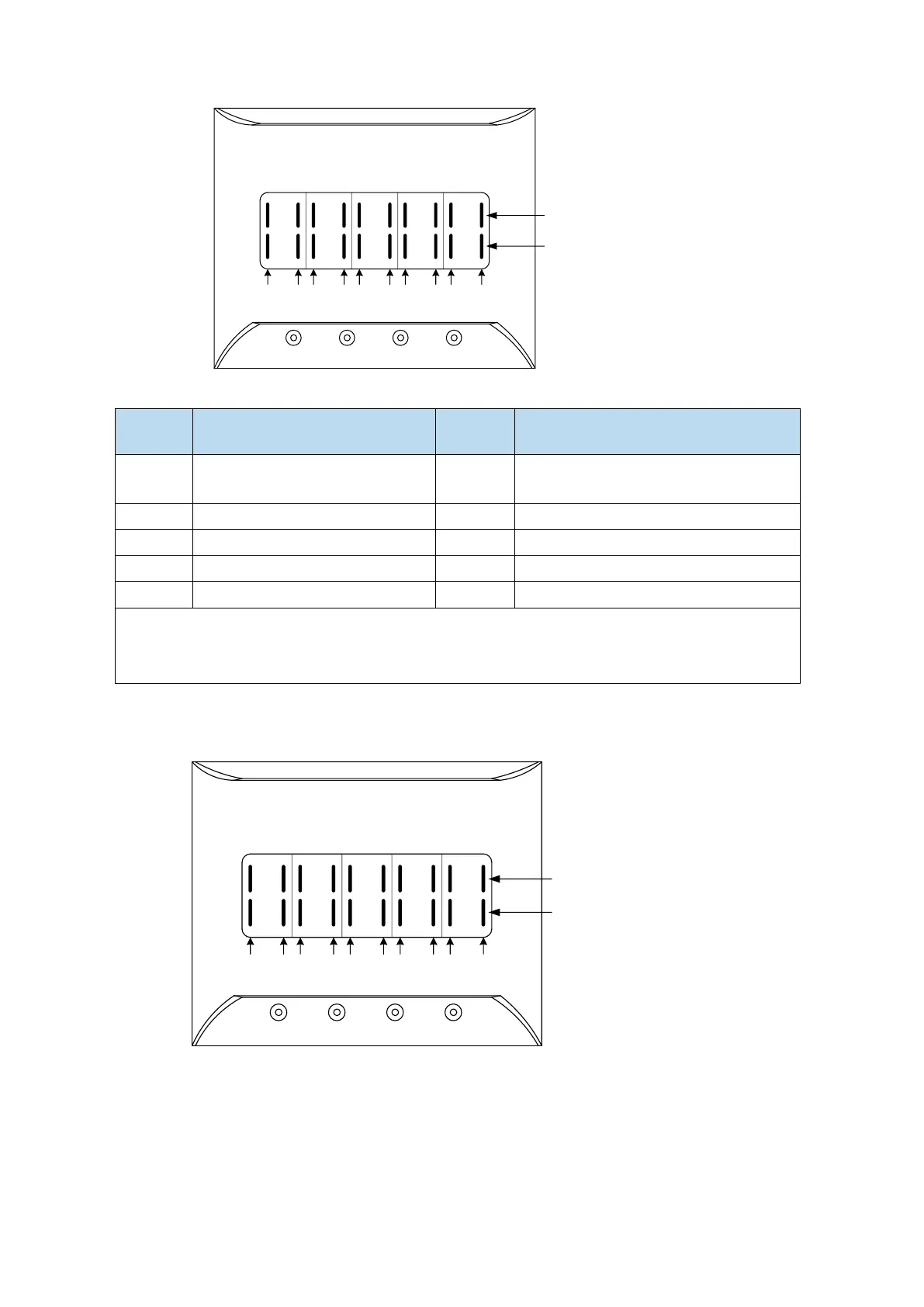

 U0-23 output signal status
STA/ESC
INC
DEC ENTER
12345678910
Lighting means that the corresponding
item has signal output
Lighting means that the corresponding
item has no signal output
 U0-23 output signal 1 distribution
Segment
code
Description
Segment
code
Description
1
Positioning completion hold
（/COIN_HD）
2
Positioning completion（/COIN）
3
Same speed detection（/V-CMP）
4
Rotate detection（/TGON）
5
Ready （/S-RDY）
6
Torque limit（/CLT）
7
Speed limit detection（/VLT）
8
Break lock（/BK）
9
Warn （/WARN）
10
Output near（/NEAR）
Note: When reading through communication, the binary numbers read from right to left correspond to
the position of / COIN_HD, / COIN, 0 means that the position signal is not output, 1 means that
the position signal has output. Example: 0x0001 means / COIN_HD has output, 0x0201 means /
COIN_HD and / NEAR has output.
 U0-24 output signal status
STA/ESC
INC
DEC ENTER
11121314151617181920
Lighting means that the
corresponding item has signal output
Lighting means that the corresponding
item has no signal output
