VB5N series inverter
14
2-5. Setting and wiring of control circuit
2-5-1.Position and function of terminals and jumpers on control panel
Please open the front cover of inverter, there is the PCB board inside. The jumper is on the board.

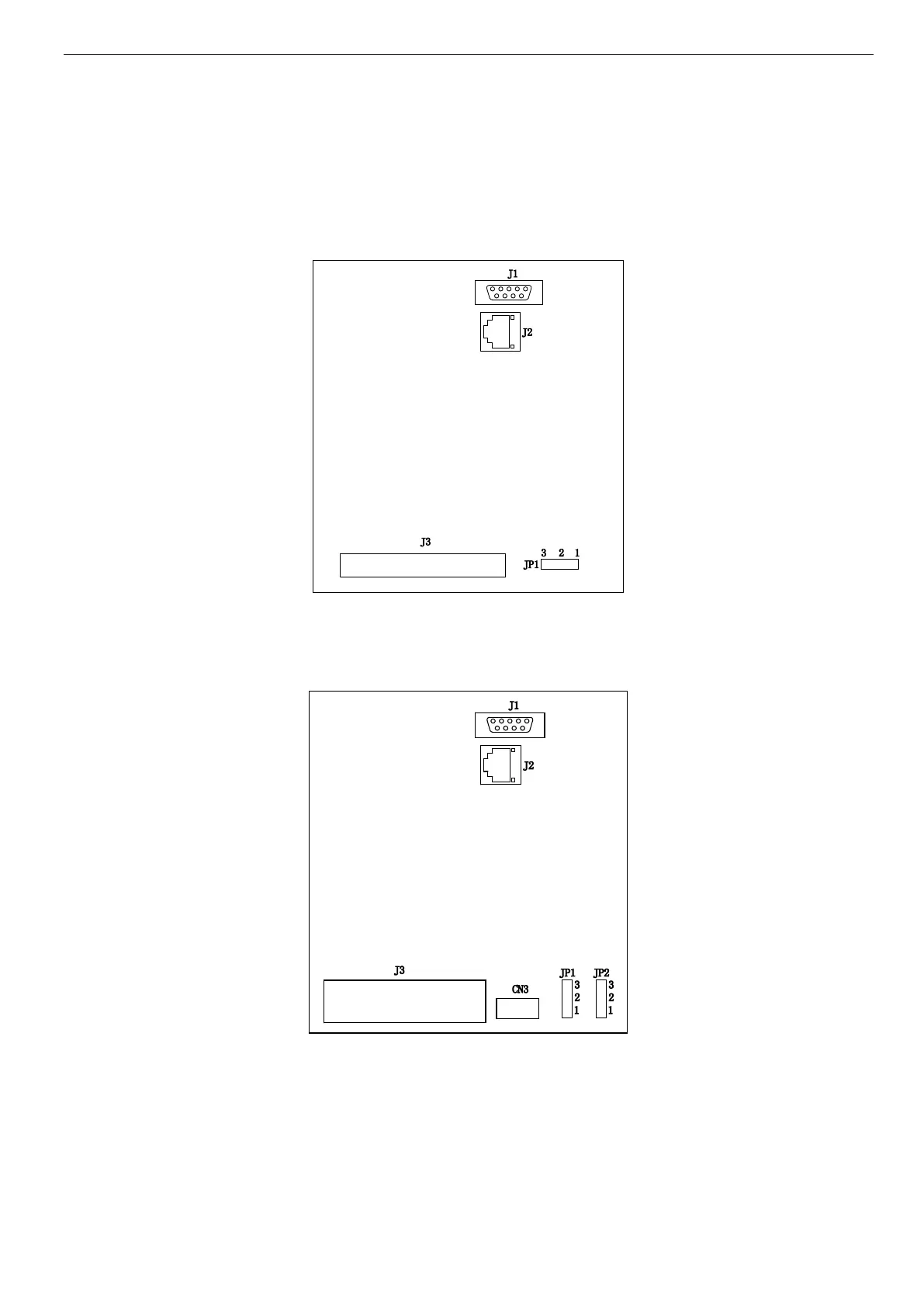

0.7KW VB5N series single phase inverter jumper location
Fig 2-4 (a) control panel terminal jumper location
2.2~3.7KW VB5N three phase inverter jumper location
Fig 2-4 (b) control panel terminal jumper location
