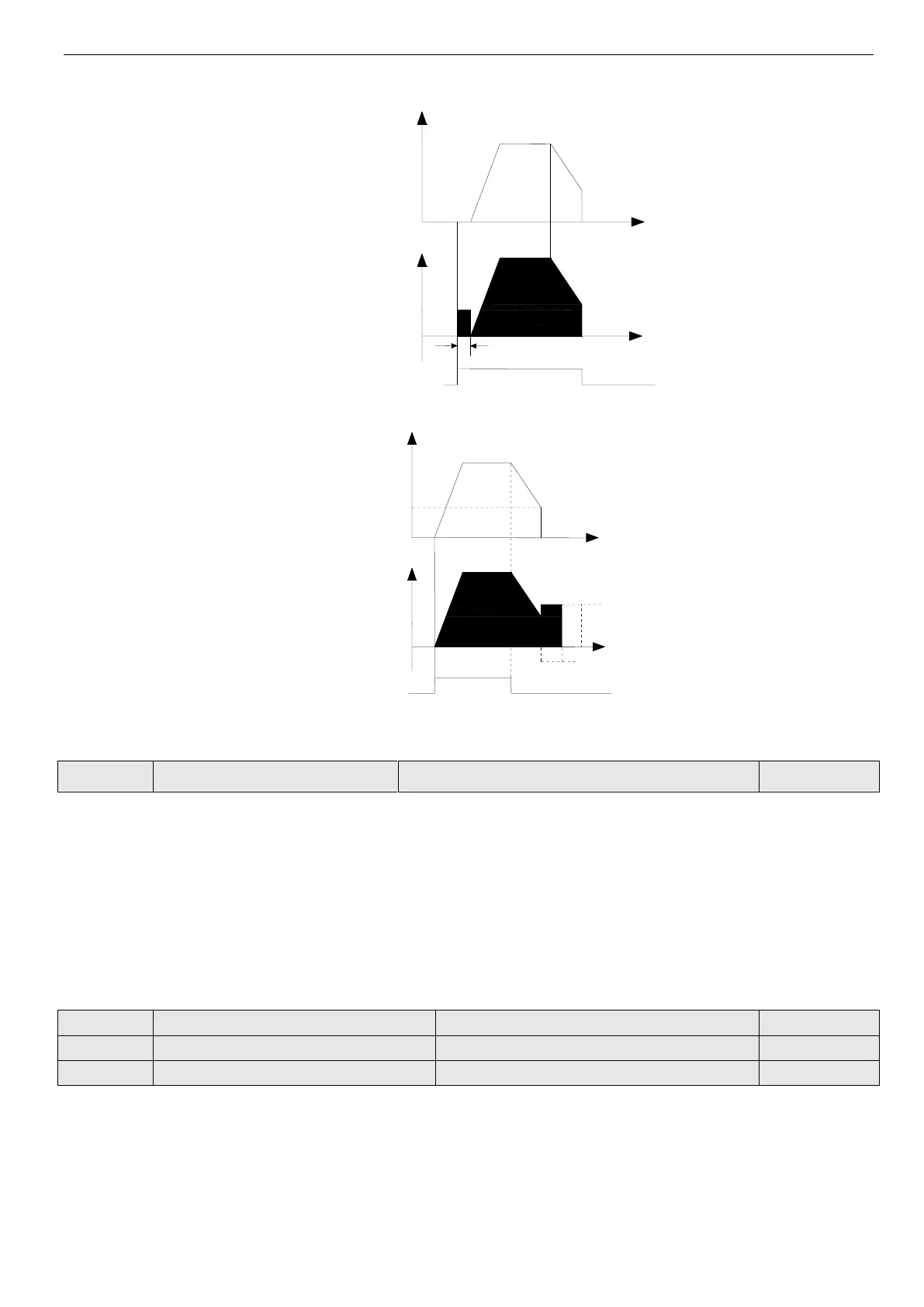

Fig.4-11 Starting mode 1
Fig. 4-12 Decelerate stop+DC brake
P2.05
Stop mode
Range: 0, 1, 2
0
0: Decelerate stop
After receiving the stopping command, the inverter reduces its output frequency within decelerate time and stops when the
frequency becomes 0.
1: Free stop
After receiving the stopping command, the inverter stops immediately and the motor stops according to mechanical inertia.
2: Decelerate stop+DC brake
After receiving the stopping command, the inverter reduces its output frequency according to decelerate time and then start
to DC brake when reach P2.06 (stop brake starting frequency).
P2.06
DC brakes starting frequency when stop
Range: 0.0~15.00Hz
3.00Hz
P2.07
DC brake time when stop
Range: 0.0~60.0s
0.0s
P2.08
DC brake current percent when stop
Range: 0~80 (%)
0(%)
P2.08 is the percentage value of DC brake current and inverter rated current.There is no DC braking when the braking time
is 0.0, as shown in Fig.4-12.
Run command
Output voltage
(Effective value)
time
Brake time
Start frequency of brake
DC brake value
Output frequency
Run command
Output voltage
(effective value)
DC brake
value
time
time
Output frequency
DC brake time
