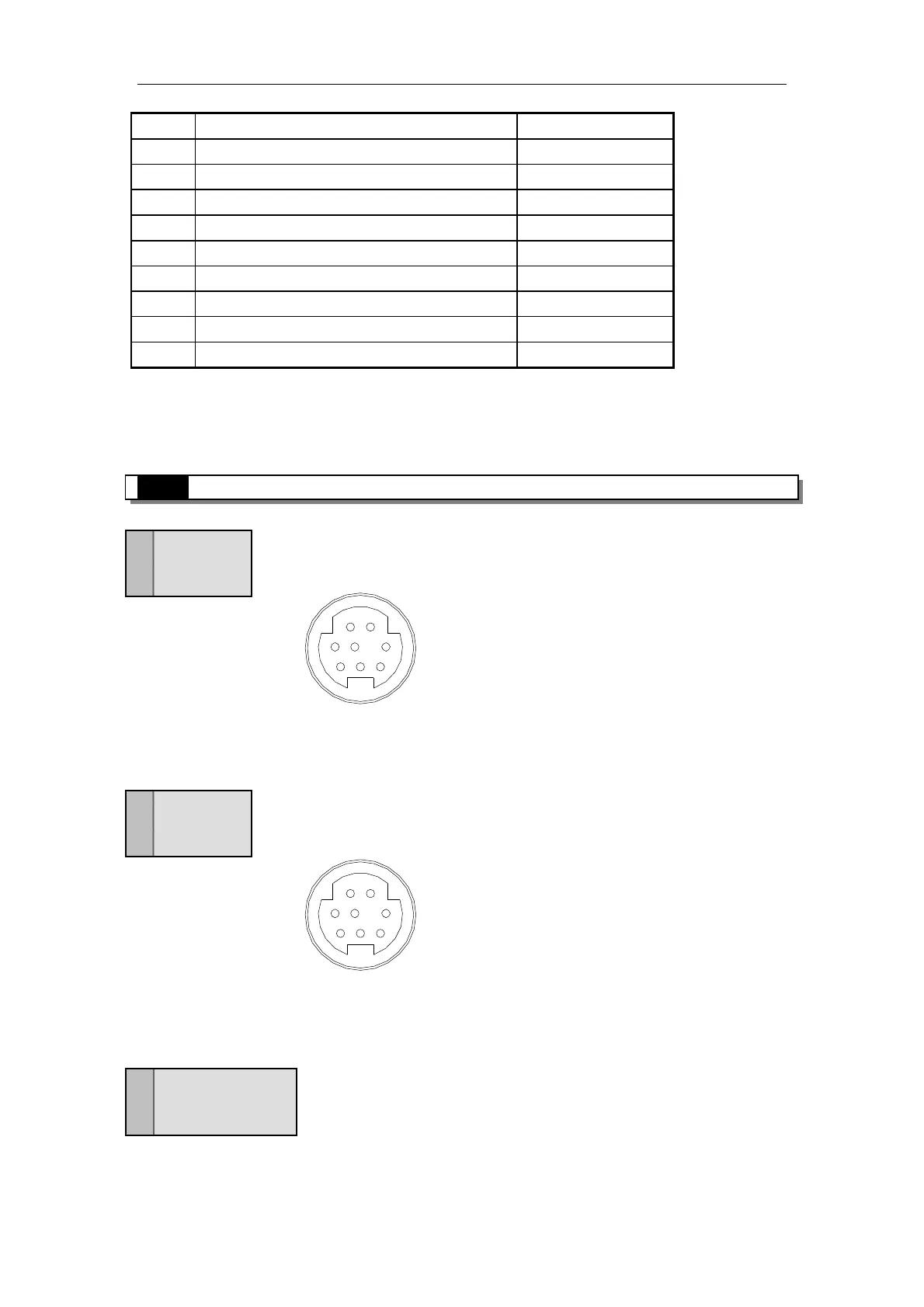

Xinje XC2 Series User Manual

2 The Specifications and Parameters of CPU
2-4．Communication Ports
B XC2-48、XC3- 48、XC5- 48 28 input/20 output
C XC2-32、XC3- 32 18 input/14 output
D XC2-24、XC3- 24 14 input/10 output
E XC2-14、XC3- 14 8 input/6 output
F XC1- 16、XC2-16 8 input/8 output
G XC5- 32、XCM-32 18 input/14 output
H XC5- 24、XCM-24 14 input/10 output
I XC1- 32 16 input/16 output
J XC1- 24 12 input/12 output
K XC1-10 5 input/5 output
1 COM1
Pins of COM1:
3 4 5
1
2
6
8
7
Mini Din 8 female
2：PRG
4：RxD
5：TxD
6：VCC
8：GND
2 COM2
Pins of COM2
※
1
:
3 4 5
1
2
6
8
7
Mini Din 8 female
4：RxD
5：TxD
8：GND
3 Program Cable
