Xinje XC2 Series User Manual

5 input specifications and wiring methods

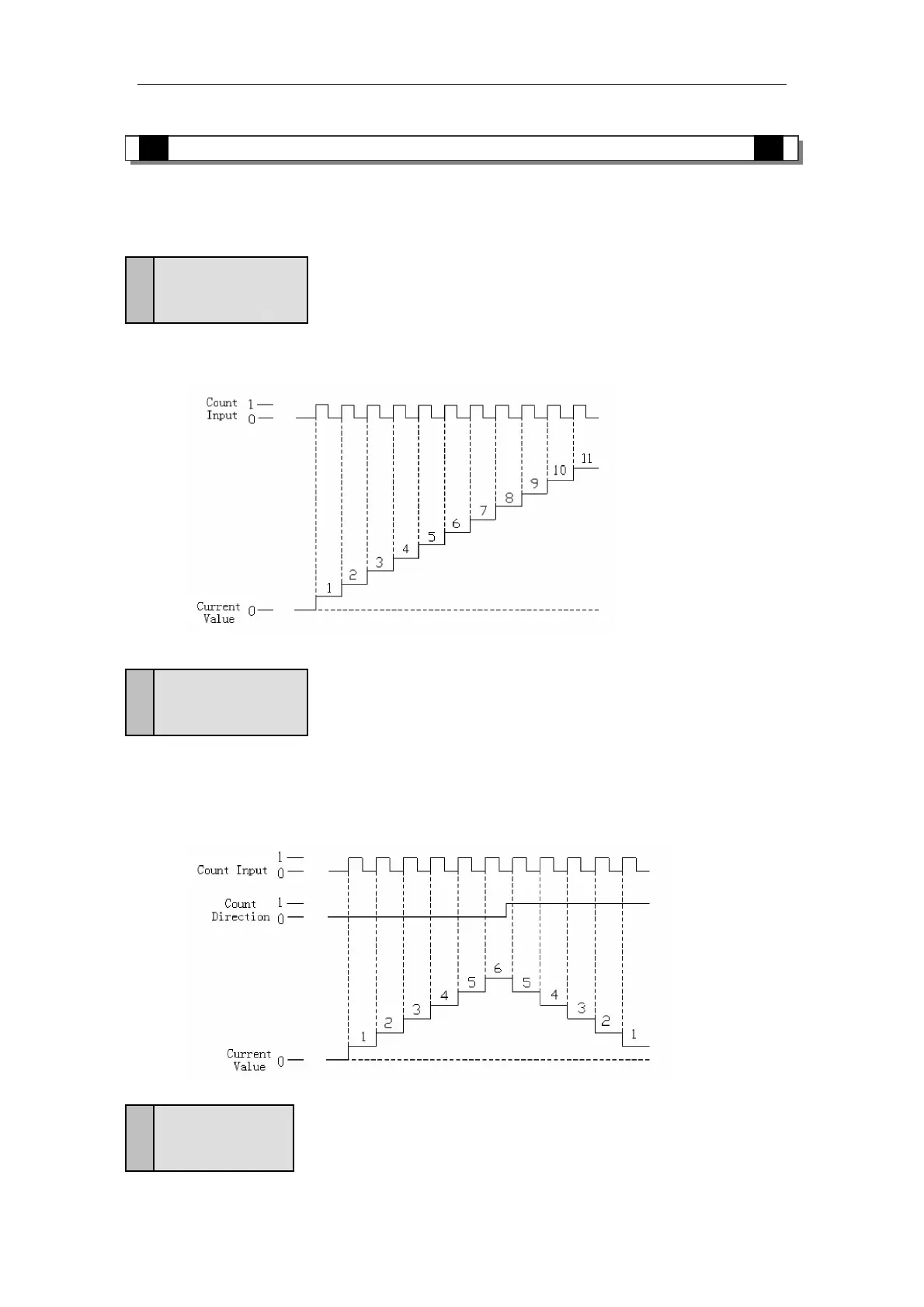

5-3-1．Count Mode
XC series HSC function has three count modes: Increment mode, Pulse+Direction mode,
AB-phase mode;
Under this mode, input the pulse signal, the count value increase with every rising edge of pulse
signal;
Under this mode, input the pulse signal and direction signal together. The count value increase or
decrease according to the direction status. If the count direction is OFF, do increment count with
the input’s rising edge; If the count direction is ON, do decrement count with the input’s rising
edge;
Increment Mode 1
Pulse+Direction
Mode
2
AB Phase Mode 3
