6 output specification and wiring methods
l Output terminals
Relay output type includes 2~4 public terminals. So each public-end unit can
drive different power-voltage system’s (E.g.：AC200V，AC100V，DC24V etc.)
load.
l Circuit’s insulation
Between the relay output coils and contacts，PLC’s interior circuits and exterior
circuits, load circuits are electric insulation. Besides, each public-end blocks are
separate.
l Action display
LED lamp lights when output relay’s coils galvanize, output contacts are ON.
l Response time
From the output relay galvanize (or cut) to the output contacts be ON (or OFF),
the response time is about 10ms
l Output current
The current-voltage below AC250V can drive the load of pure resistace 2A/1
point、inductance load below 80VA（AC100V or AC200V） and lamp load below
100W（AC100V or AC200V）.
l Open circuit’s leak current
When the output contact be OFF and there’s no leak current，can directly drive Ne
lamp etc.
l The life of relay output contacts
Standard life of induce AC load such as contactor、electromagnetism valve：5
million times for 20VA load. Cut power device’s life according to the company’s
test: for 80VA load, the action life is up to 2 million times. But if the load parallel
connection with surge absorber, the life will be greatly improved!

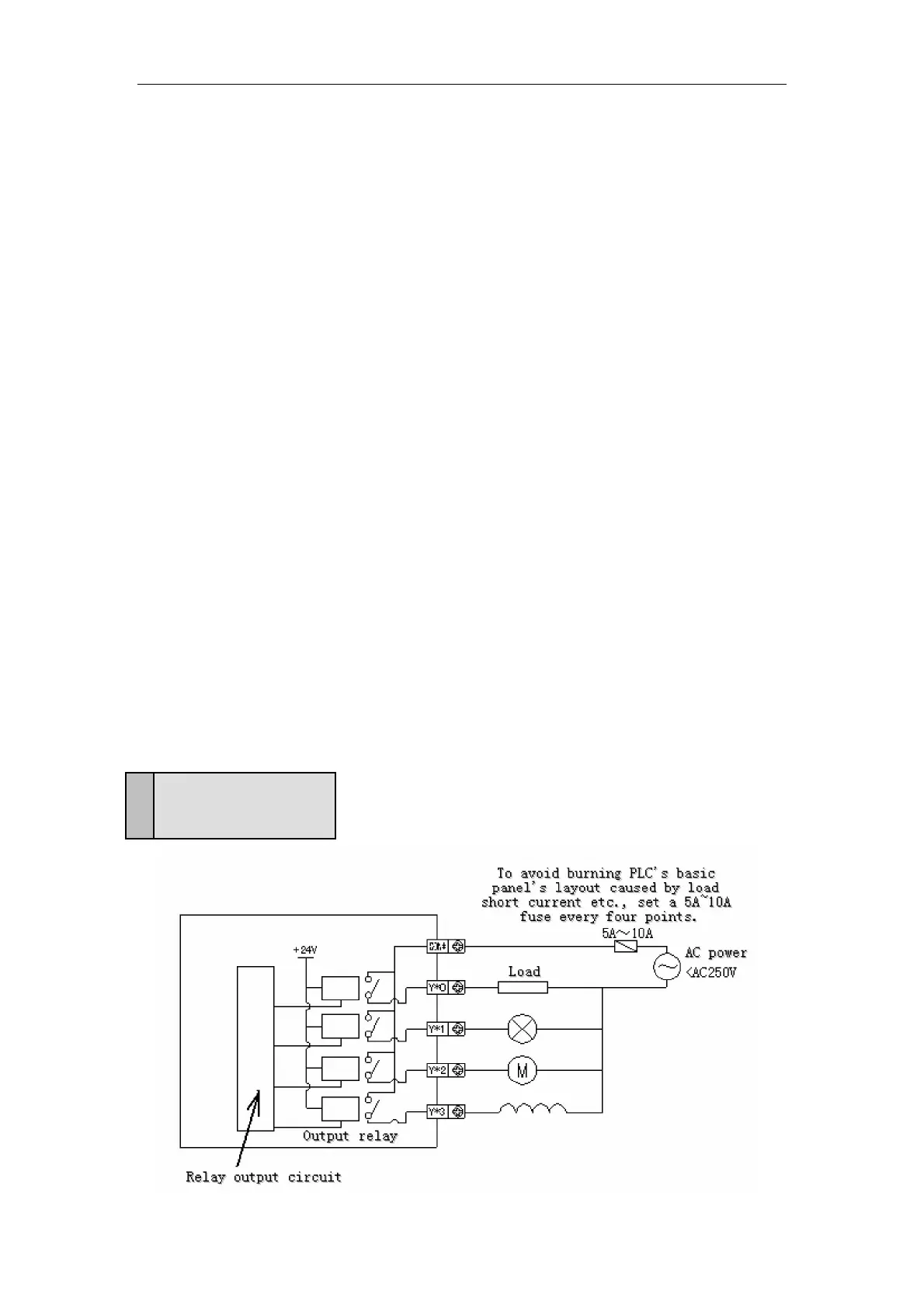

Output Connection
Example
2
