XP3 PLC/HMI Hardware Manual Page 13 of 42 LMAN007_R2V2
2-4-1 Text

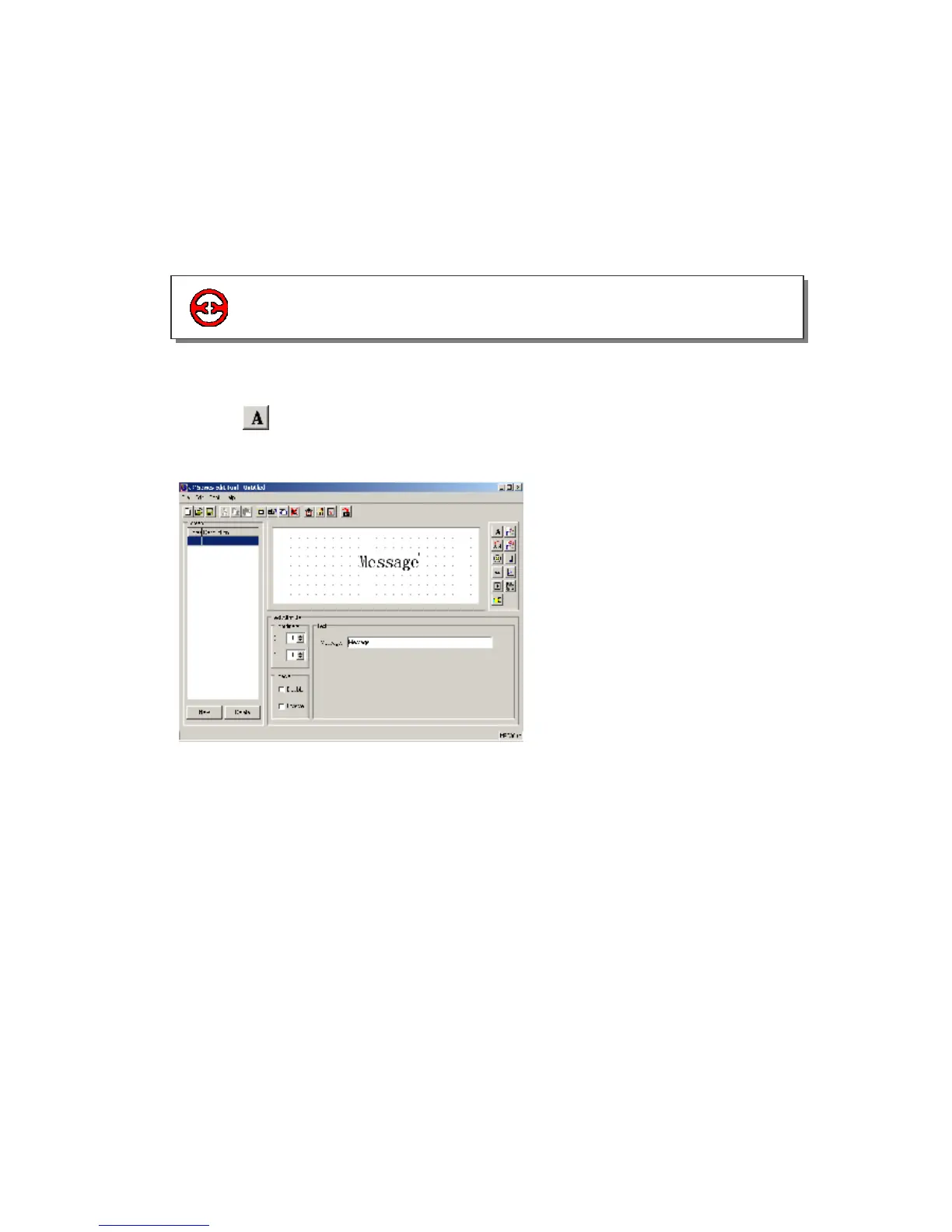

Press the key, there will be a rectangle moving with the mouse. Confirm were to place it via
the left-click on the mouse, right-click on the mouse to cancel. After you confirm, there will be a
text “Message” in the display area. Meanwhile, in the property area, its property will be shown.
Coordinate:
X: show the text’s horizontal direction.
Y: show the text’s vertical direction.
The origin dot’s direction is the most up-left dot in the whole area.
Special
Double: the horizontal and vertical direction both double display in times.
Inverse: inverse the color of the text and its background.
Text:
The real content can be displayed in English. This column can be cut, copy or paste.
Note:
To all units, they all have “coordinate” and “special” items. So in the following chapter, we will not
mention these two items.
