XP3 PLC/HMI Hardware Manual Page 18 of 42 LMAN007_R2V2


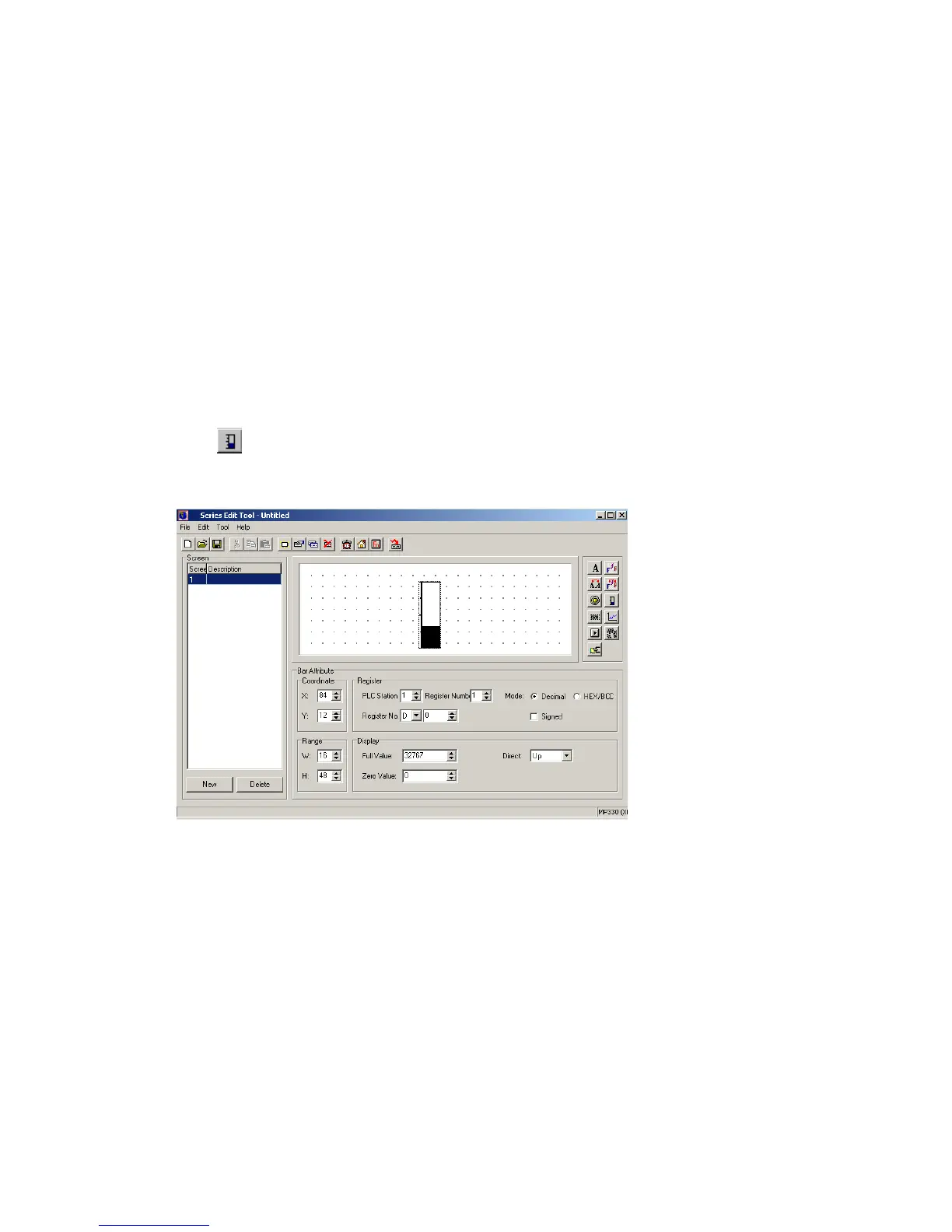

2-4-6 Bar
Click key and place it in the display area. The bar diagram is used to display directly
analogue parameters, such as level pressure liquid level, etc. Its height, width and direction
can be assigned freely.
 Range:
The values determines the bar diagram’s width and height.
 Register:
 PLC station: The device’s address which connects with the operation panel
 Register number: Use as sequence data storage area
 Register number: Bar diagram’s corresponding register ID
 Mode: Data format (include Decimal, HEX/BCD, signed etc)
 Display:
 Full value: The register’s corresponding value when the bar diagram 100% scale display.
 Zero value: The register’s corresponding value when the bar diagram 0% scale display.
 Direction: Bar diagram’s display direction can be Up﹑down or left, right.
