2-4-2 True type text

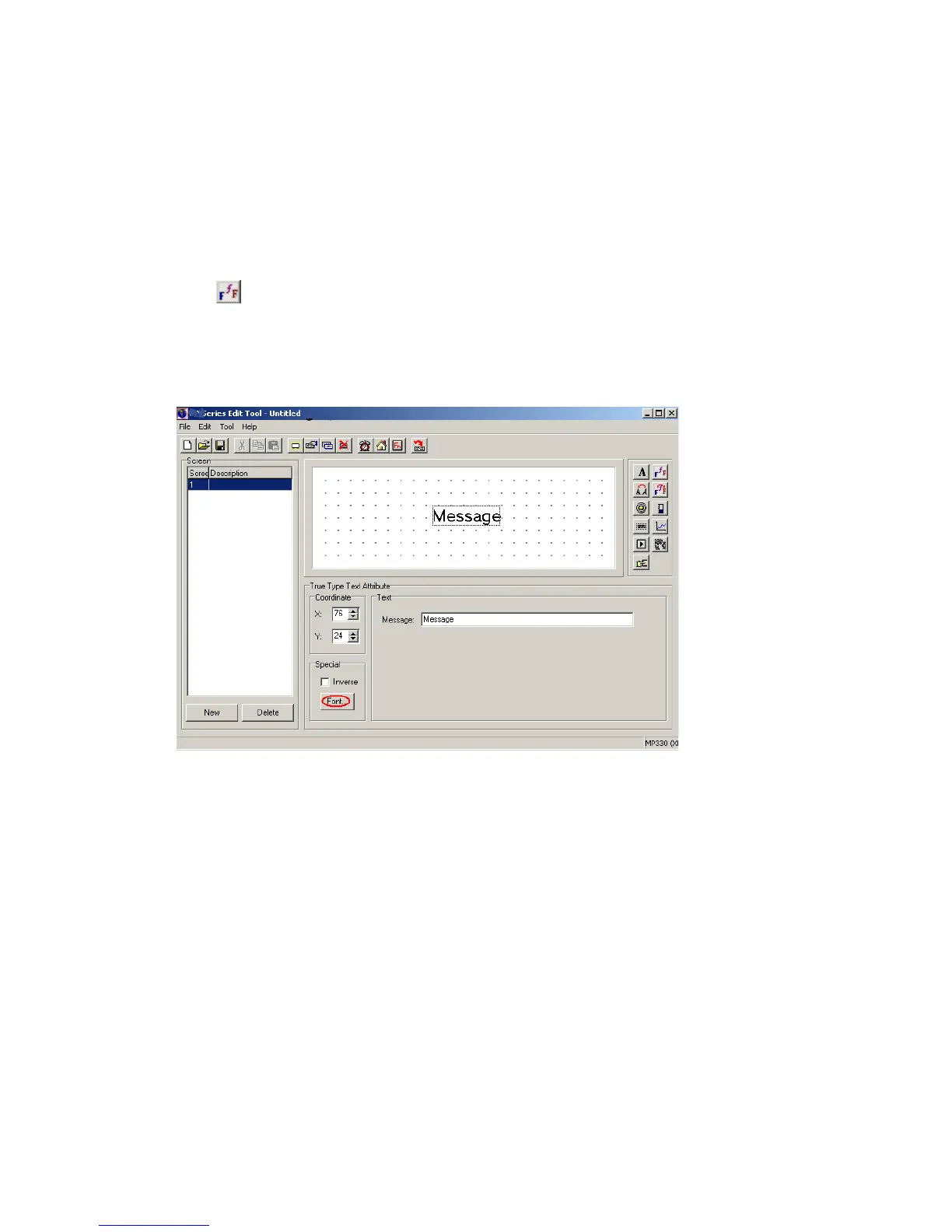

Press key, there will be a rectangle frame moving with your mouse. Confirm with your
mouse’s lef-click, cancel with your mouse’s right-click. After your confirmation, there will be a
message in the display area. Meanwhile, in the attribution area, display this text’s property. This
component is similar with “Text”. The difference is, “True type text” can modify the font and size.
Meanwhile, modifying the font can also modify the display area. This brings lots of flexibility for
the designer.
Coordinate:
X: show the text’s horizontal direction.
Y: show the text’s vertical direction.
The origin dot’s direction is the most up-left dot in the whole area.
Special:
Double: the horizontal and vertical direction both double display in times.
Inverse: inverse the colour of the text and its background.
Text:
The real display content. All can be displayed. This column can be cut, copy or paste.
