2-4-3 Dynamic text

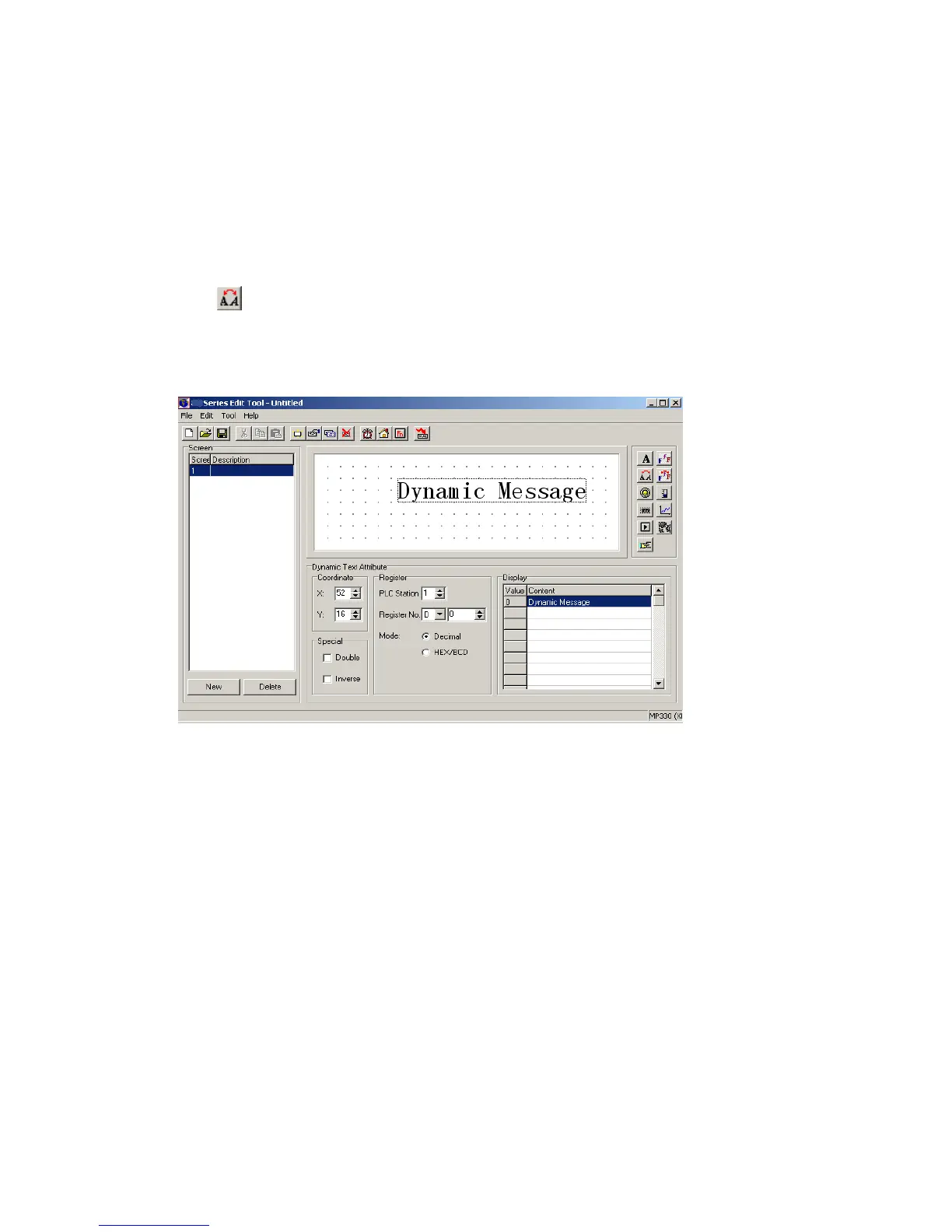

Click key, there will be a dashed frame moving with the mouse. Left-click the mouse to
confirm (right-click to cancel). After your confirmation, there will be a “Dynamic Message” in the
display area; meanwhile, its property will be shown in the property area. This icon is similar with
“Text”, the difference is: Dynamic text’s content is connected with a register. That is, when the
register’s value changes, the dynamic text with display the changed content.
Register:
PLC station ID: The device connected with this operate panel. When communicating with
different devices use different station ID. So, this station’s set value is different.
Usually we use the defaulted value.
Register ID: Set the register’s number, take the example of D0, the operator pan can
directly monitor value changing in D0.
Mode: data mode, normally you needn’t change.
Display:
Add the display content directly in the content column. When D0 is 1, it will display “manual
status”.
