XP3 PLC/HMI Hardware Manual Page 36 of 42 LMAN007_R2V2


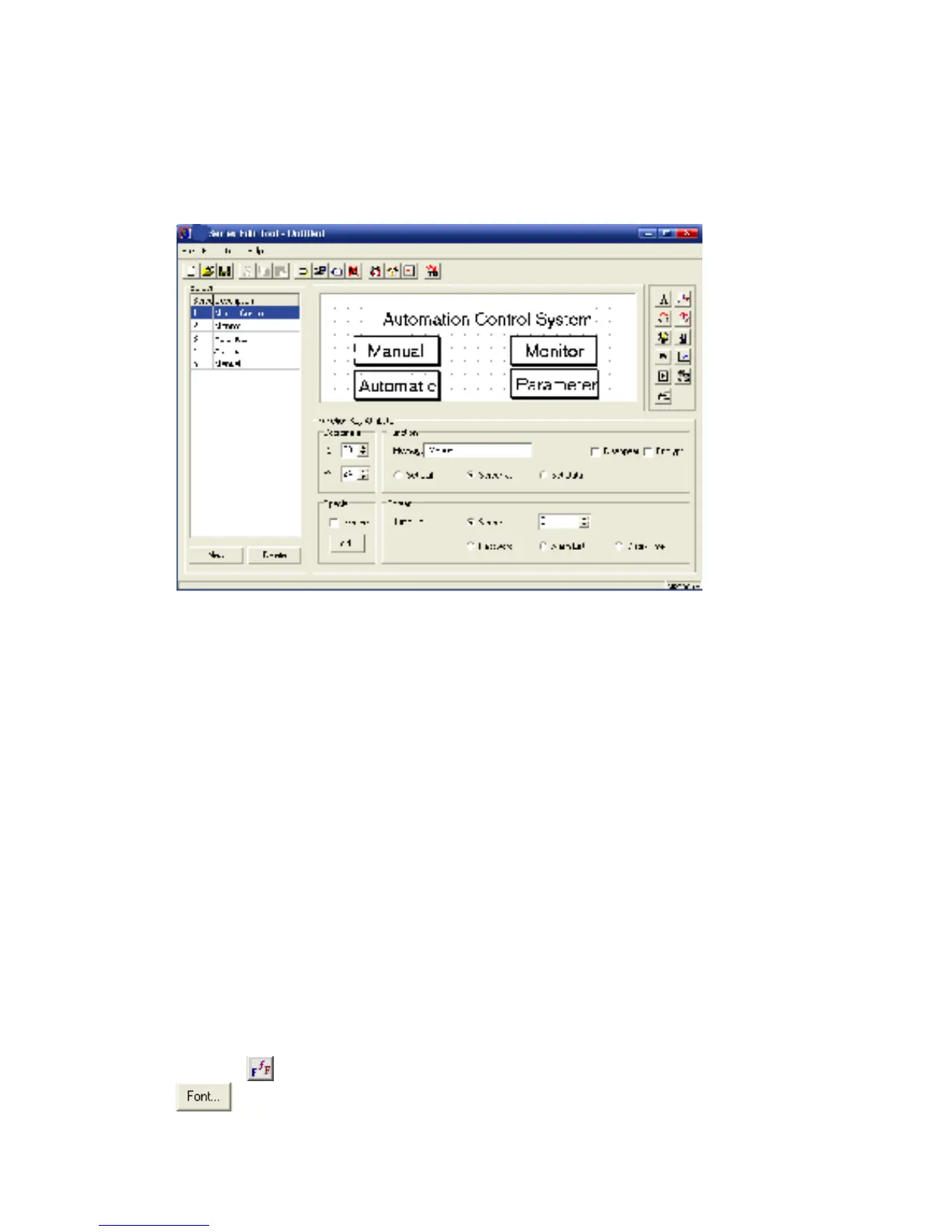

 Set each touch key’s function and parameter:
 Manual Function: Screen jump; jump to screen 5
 Automatic Function: Screen jump; jump to screen 4
 Monitor Function: Screen jump; jump to screen 2
 Parameter Function: Screen jump; jump to screen 3
3. Finish editing [Master Control] screen.
4-1-2 Edit the monitor screen
Screen Elements: one title, nine textual description, six indicator lamps, one data monitor unit,
one dynamic indicator unit and one screen jump key
1. The title:
Place one
key in the screen, change the value as “Monitor Screen”, Choose “Inverse”, click
key to modify it and drag the title to the proper place.
