Xray T4 2018 User Manual

14
TOE-IN
TRACK-WIDTH
WHEELBASE
ROLL CENTER
ANTI-SQUAT
PRO-SQUAT
3x6x1mm
903306
SFH M3x6
903306
SFH M3x6
NOTE ORIENTATION
NOTE ORIENTATION
ECCENTRIC BUSHINGS HAVE TWO DIFFERENT OFFSETS FROM THE CENTER
Middle position = 0.5 mm or 0.5° from center
Outer position = 1mm or 1° from center
The XRAY rear alu lower suspension holders provide even greater range of
adjustment for the rear suspension. Using different combinations of eccentric
bushings, fine adjustment of rear squat, rear toe-in, rear roll center, and rear track-
width can be obtained. For more information about the influence of rear squat, rear
toe-in, rear roll center and rear track-width on car handling, please refer to HUDY
Set-up Book (#209100).
Marked
“RR”
All possible mounting
alternatives of eccentric bushings
Composite eccentric bushings
INITIAL SETTING
1 10.5 0.50
Composite eccentric bushings
INTIAL SETTING
1 10.5 0.50
Marked
“FR”
ALTERNATIVE
STANDARD REAR SUSPENSION
(INITIAL SETTING)
ALTERNATIVE
ACTIVE REAR SUSPENSION™
FRONT SUSPENSION
REAR SUSPENSION

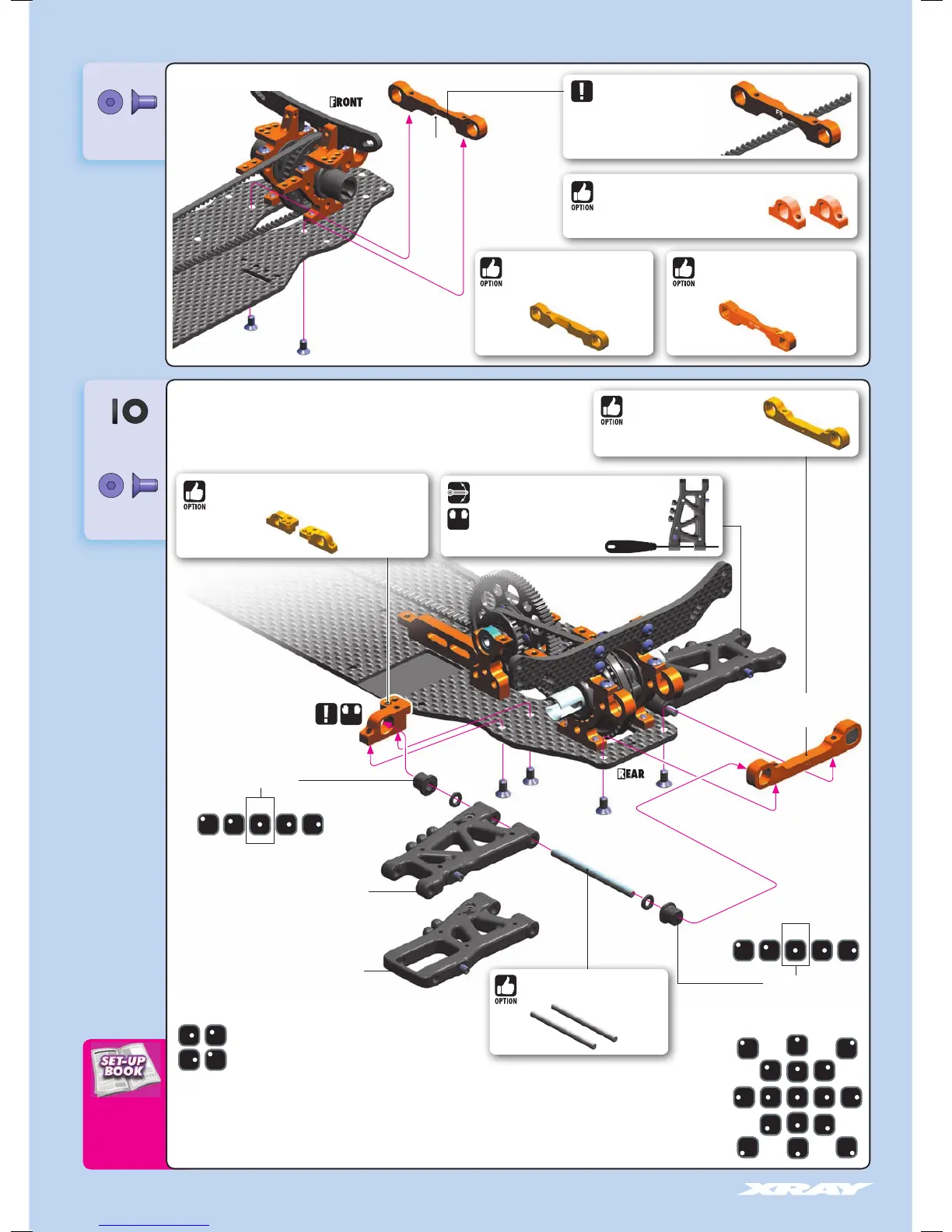

3. FRONT & REAR SUSPENSION
303129
SHIM 3x6x1
3x6x1mm
L=R
#303710-O ALU LOWER 2-PIECE SUSPENSION HOLDER
For more steering, we recommend using the
optional alu separate suspension holders.
#302721
BRASS FRONT 1-PIECE SUSPENSION
HOLDER (FR)
#302722-O
ALU FRONT 1-PIECE SUSPENSION
HOLDER (FR-LOW)
#303721
BRASS REAR 1-PIECE SUSPENSION
HOLDER - (RR)
#303714 BRASS 2-PIECE SUSPENSION HOLDER - RIGHT
#303715 BRASS 2-PIECE SUSPENSION HOLDER - LEFT
#307217
TITANIUM SUSPENSION PIVOT PIN (2)
L=R
#107633 HUDY Arm Reamer 3.0mm
It is extremely important that the arms move freely
on the pivot pins. If they do not, use the Arm Reamer
(3.0mm) to slightly resize the holes in the arms.
