15
903306
SFH M3x6
303129
SHIM 3x6x1
TOE-IN
TRACK-WIDTH
WHEELBASE
ROLL CENTER
ANTI-DIVE
KICK-UP
All possible mounting
alternatives of eccentric bushings
ECCENTRIC BUSHINGS HAVE TWO DIFFERENT OFFSETS FROM THE CENTER.
Middle position = 0.5 mm or 0.5° from center
Outer position = 1mm or 1° from center
The XRAY front alu lower suspension holders provide even greater range of
adjustment for the front suspension. Using different combinations of eccentric
bushings, fine adjustment of front anti-squat, front kick-up, front toe-in, front roll
center, and front track-width can be obtained. For more information about the
influence of front anti-dive, front kick-up, front toe-in, front roll center and front
track-width on car handling, please refer to HUDY Set-up Book (#209100).
Marked
“FF”
Composite eccentric bushings
INITIAL SETTING
1 10.5 0.50
Composite eccentric bushings
INTIAL SETTING
1 10.5 0.50

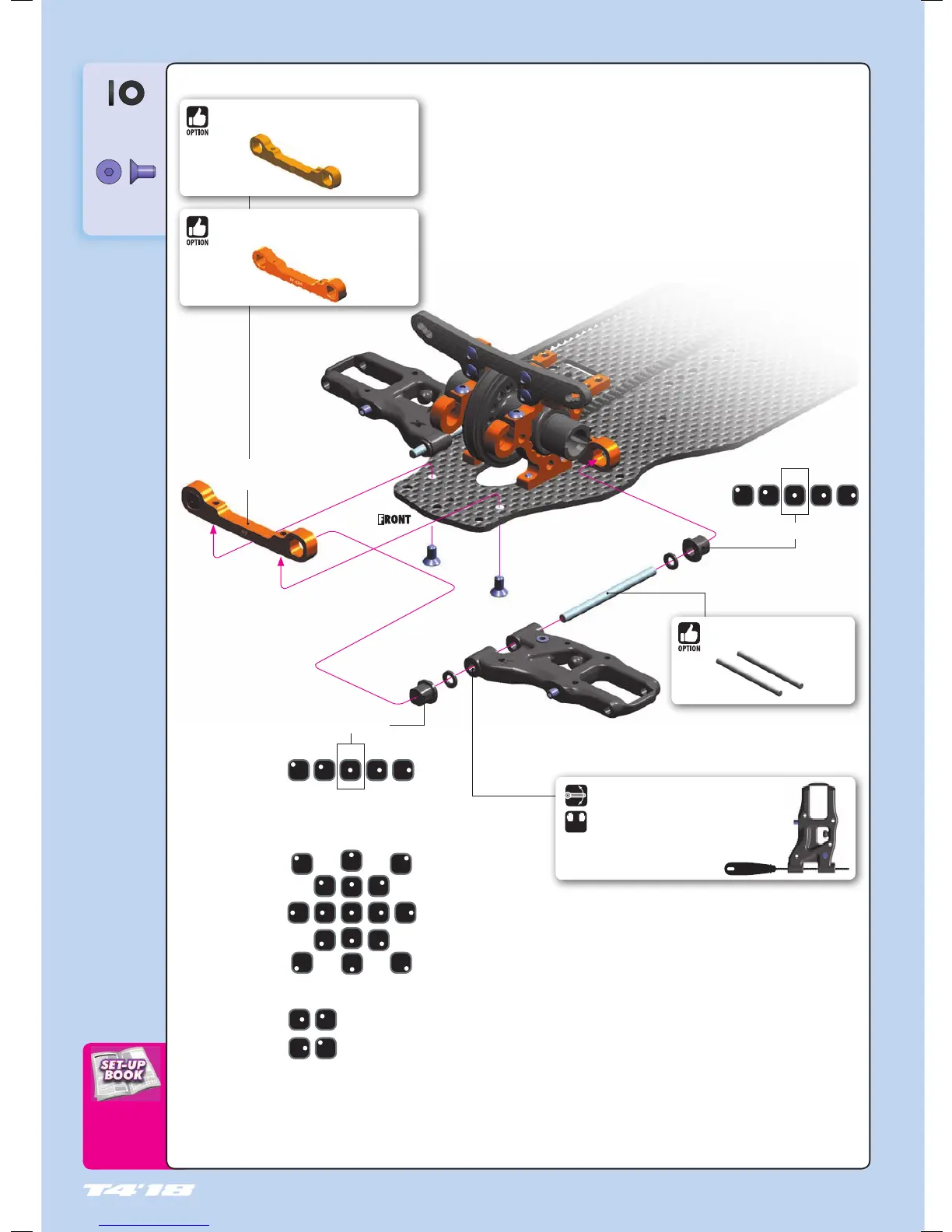

FRONT SUSPENSION
3. FRONT & REAR SUSPENSION
#307217
TITANIUM SUSPENSION PIVOT PIN (2)
#302711
BRASS FRONT 1-PIECE SUSPENSION HOLDER - (FF)
#302712-O
ALU FRONT 1-PIECE SUSPENSION HOLDER (FF-LOW)
It is extremely important that the arms move freely
on the pivot pins. If they do not, use the Arm Reamer
(3.0mm) to slightly resize the holes in the arms.
