303129
SHIM 3x6x1
3x1mm & 1x2mm composite shims
approximately 47mm
Use bearing oil for all bearings
NOTE
ORIENTATION
6mm THREAD
NOTE
ORIENTATION
NOTE
ORIENTATION
Tighten the screws gently but fully, and
then loosen 1/3 turn so the composite
dual servo saver moves freely.
SERVO LINK
Adjust servo link to fit your servo
65.4mm 65.4mm
(HUDY #106230)
INITIAL SETTING (3x6x1mm)
#301169
T4’18 GRAPHITE UPPER DECK 1.6MM
#302570
GRAPHITE STEERING PLATE SET
To change Ackermann angle, use 2 identical
shims (of same thickness) between the alu
steering plate and ball ends.
#306516-O
T4 ALU TOP DECK MOUNT - ORANGE

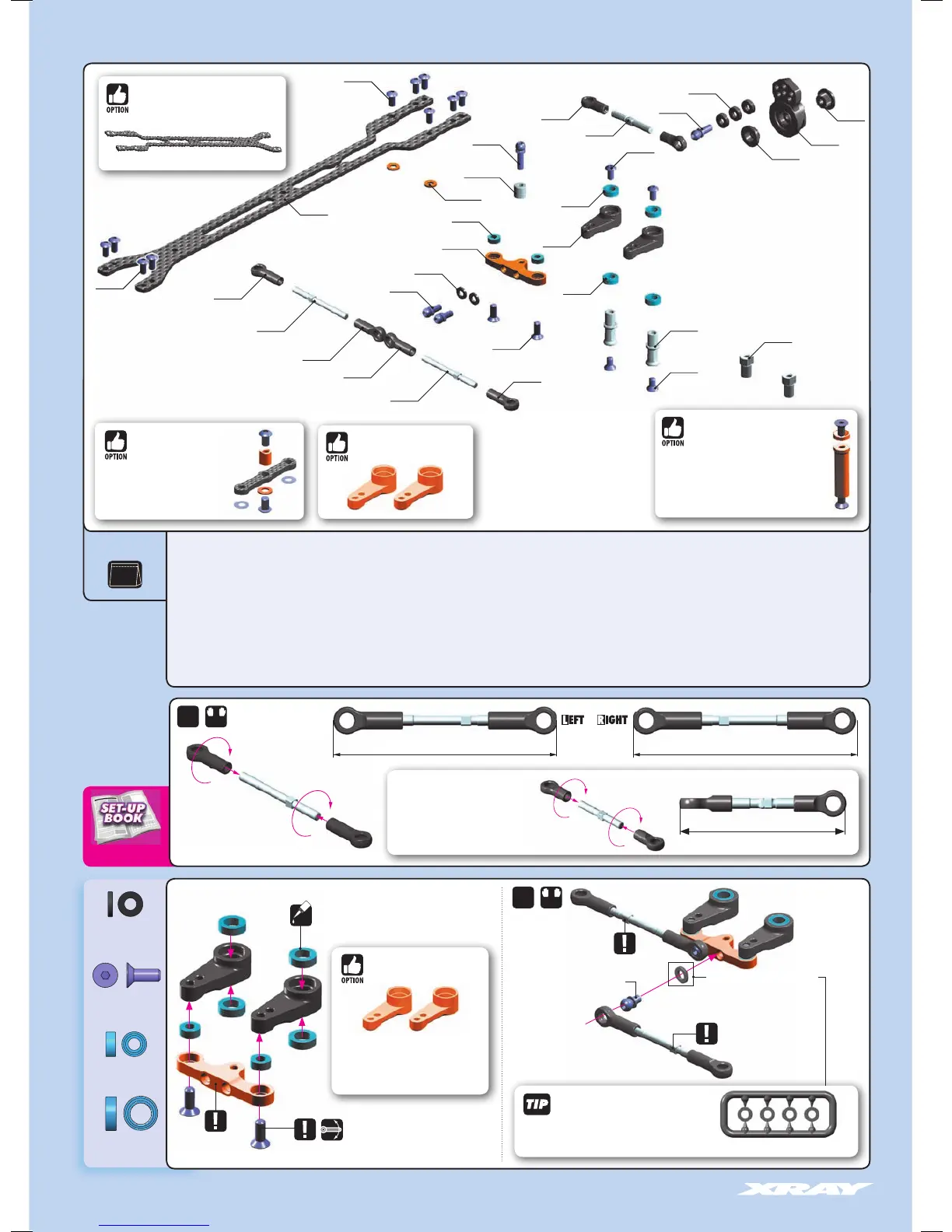

4. STEERING
04
902306
902305
940508
302526
940508
302536
302535
903306
301199
902306
303122-O
362652
303129
930306
302547-O
303126-K
362650
303129
372503
372503
372503
303454
362652
903308
302663
302612
302663
302663
302612
302663
303212
30 1199 T4’18 UPPER DECK 2.0MM GRAPHITE
30 2526 COMPOSITE DUAL SERVO SAVER ARM
30 2535 ALU STEERING POST FOR DUAL SERVO SAVER (2)
30 2536 ALU STEERING POST FOR FLOATING SERVO SAVER (2)
30 2547-O T4’14 ALU STEERING PLATE 8.5MM FOR DUAL SERVO SAVER - ORANGE
30 2612 ALU ADJ. TURNBUCKLE M3 L/R 39 MM - SWISS 7075 T6 (2)
30 2663 COMPOSITE BALL JOINT 5 MM - OPEN - V2 (8)
30 3122-O ALU SHIM 3x6x1.0MM - ORANGE (10)
30 3126-K ALU SHIM 3x6x5.0MM - BLACK (10)
30 3129 COMPOSITE SET OF SHIMS (3x1MM; 1x2MM) (2)
30 3212 ALU ADJ. TURNBUCKLE L/R 26 MM - SWISS 7075 T6 (2)
30 3454 BALL JOINT 4.9MM - OPEN (4)
36 2650 BALL END 4.9MM WITH THREAD 6MM (2)
36 2652 BALL END 4.9MM WITH THREAD 10MM (2)
37 2503 COMPOSITE SERVO SAVER - X-STIFF - SET - V2
90 2305 HEX SCREW SH M3x5 (10)
90 2306 HEX SCREW SH M3x6 (10)
90 3306 HEX SCREW SFH M3x6 (10)
90 3308 HEX SCREW SFH M3x8 (10)
93 0306 BALL-BEARING 3x6x2.5 (2)
94 0508 HIGH-SPEED BALL-BEARING 5x8x2.5 RUBBER SEALED (2)
#302525
ALU DUAL SERVO SAVER ARM
We recommend using the aluminum
dual servo saver arms when better
steering response is needed. Also
recommended for asphalt tracks.
#302525
ALU DUAL SERVO SAVER ARM
