17
902305
SH M3x5
902306
SH M3x6
303129
SHIM 3x6x2
303126-K
SHIM 3x6x5
303122-O
SHIM 3x6x1
903306
SFH M3x6

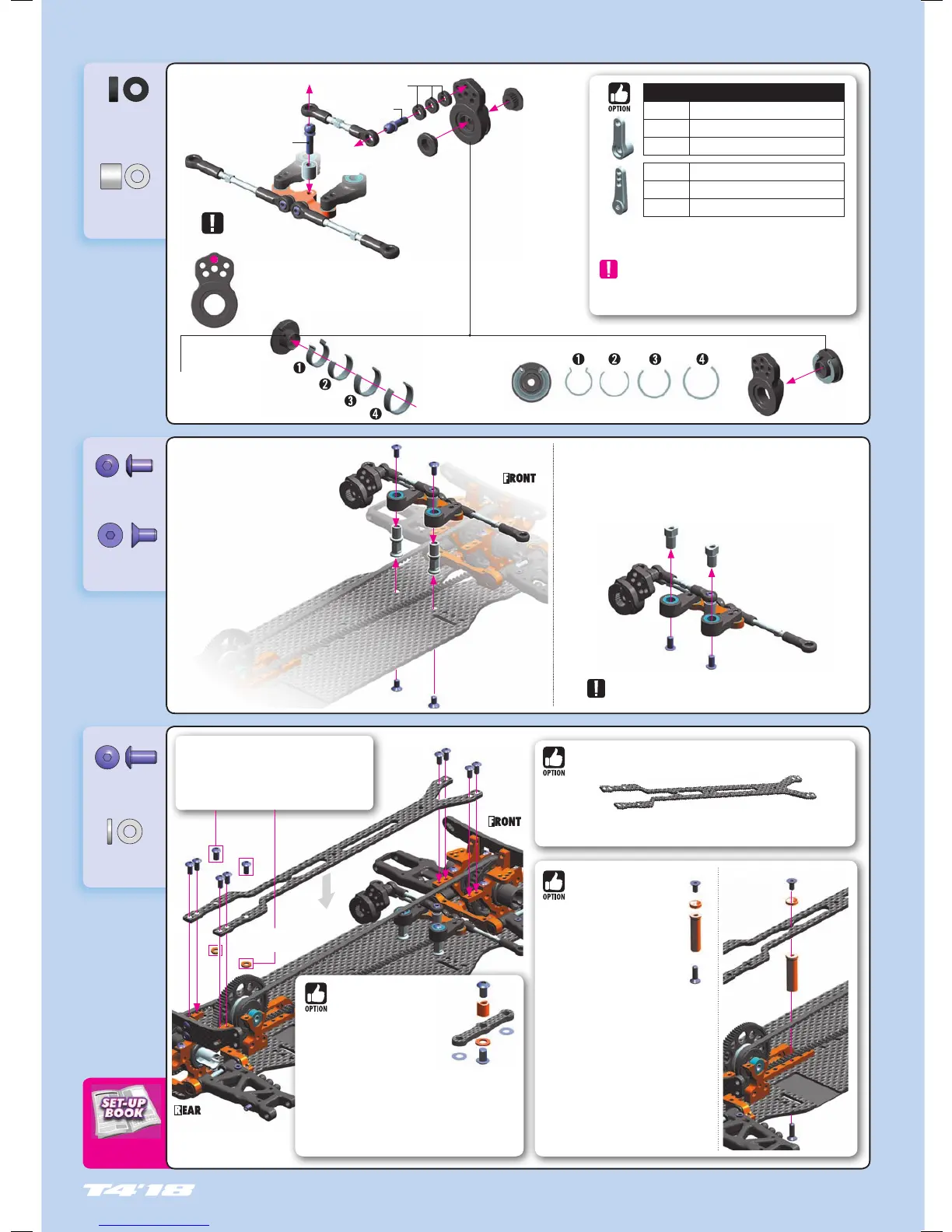

CHASSIS FLEX SETTING
TOP DECK SETTING
H = Hitec (24T)
F = Futaba, Robe (25T)
K = KO, JR, Airtronics, Sanwa (23T)
Optional alu top deck mount improves
forward and rear traction and makes the
car more stable and easier to drive under
low-traction conditions, however generates
more on-power push. Recommended for low
and medium traction conditions.
When the aluminum top deck mount is used,
the screws from layshaft bulkheads and M3 nut
from motor holder must be removed (page 10/
step 1).
3x6x2mm
3x6x5mm
10mm THREAD
10mm THREAD
HUDY ALU SERVO HORNS
#293491 KO, JR, Sanwa, Airtr. - OFFSET - 23T
#293492 Hitec - OFFSET - 24T
#293493 Futaba - OFFSET - 25T
#293501 KO, JR, Sanwa, Airtronics - 23T
#293502 Hitec - 24T
#293503 Futaba - 25T
#301169
T4’18 GRAPHITE UPPER DECK 1.6MM
We recommend using optional 1.6mm top deck for super-low traction conditions as it
provides more overall traction and steering.
#306516-O
T4 ALU TOP DECK MOUNT - ORANGE
Smart chassis flex adjustment via graphite steering plate
which can be mounted with an additional aluminum stand.
Using only the graphite steering plate, chassis flex is
medium; using the aluminum stand for reinforcement, the
flex becomes stiffer. Stiffer flex results in more aggressive
handling and increased steering.
Do not use the layshaft screws for initial setting.
If the layshaft screws on the top deck are used, it
is necessary to use also 3x6x1 shims under the top
deck to connect top deck with layshaft bulkheads.
Do not use for
basic set-up
Do not use for
basic set-up
#302570
GRAPHITE STEERING PLATE SET
For more in-corner steering and better steering response, aluminum
servo horns may be used.
IMPORTANT!
When the aluminum horn is used, the steering servo saver is not
used. This increases the risk of breaking the servo in serious crashes.
4. STEERING
INITIAL SETTING
STANDARD STEERING ARM MOUNTING
Standard steering mounting system
provides maximum steering response
and makes steering more precise.
(INITIAL SETTING)
ALTERNATIVE 1
Floating steering mounting system makes the car easier to drive over
curbs and on bumpy tracks. Helps prevent oversteer.
NOTE: The floating steering arms are mounted on the
graphite servo holder in the Final Assembly page 33/step 1.
FLOATING STEERING ARM MOUNTING
ALTERNATIVE 2
3x5mm
3x5mm
3x6mm
