Xray T4 2018 User Manual

18
05
BAG
901304
362650
302663
303803
302804
930407
303212
980210
305341
302663
303432-O
303455
362650
302663
901303
302663
303212
305350-K
302253
305346
305394
305221
305328
362652
303123-K
302291
901304
362651
303127-K
303354
940510
303455
901303
303432-O
930407
307221
303129
362651
305350-K
901304
303122-K
362649
901304
902205
940510
305231
901302
305241
902310
302364
303123-K
902205
940510
940510
901302
980210
305253
305254
362649
307321
305392
302363
305253
901302
#305242
DRIVE SHAFT REPLACEMENT CAP 3.5MM - ORANGE - STRONG (4)
#307222 TITANIUM FRONT ARM PIVOT PIN (2)
#307322 TITANIUM REAR ARM PIVOT PIN (2)
BAG
303129
302253
362650
302663
303212
303129
362649
302663
902310
302369
302370
302291
901304
FOR ALTERNATIVE SETTING
ACTIVE REAR SUSPENSION™

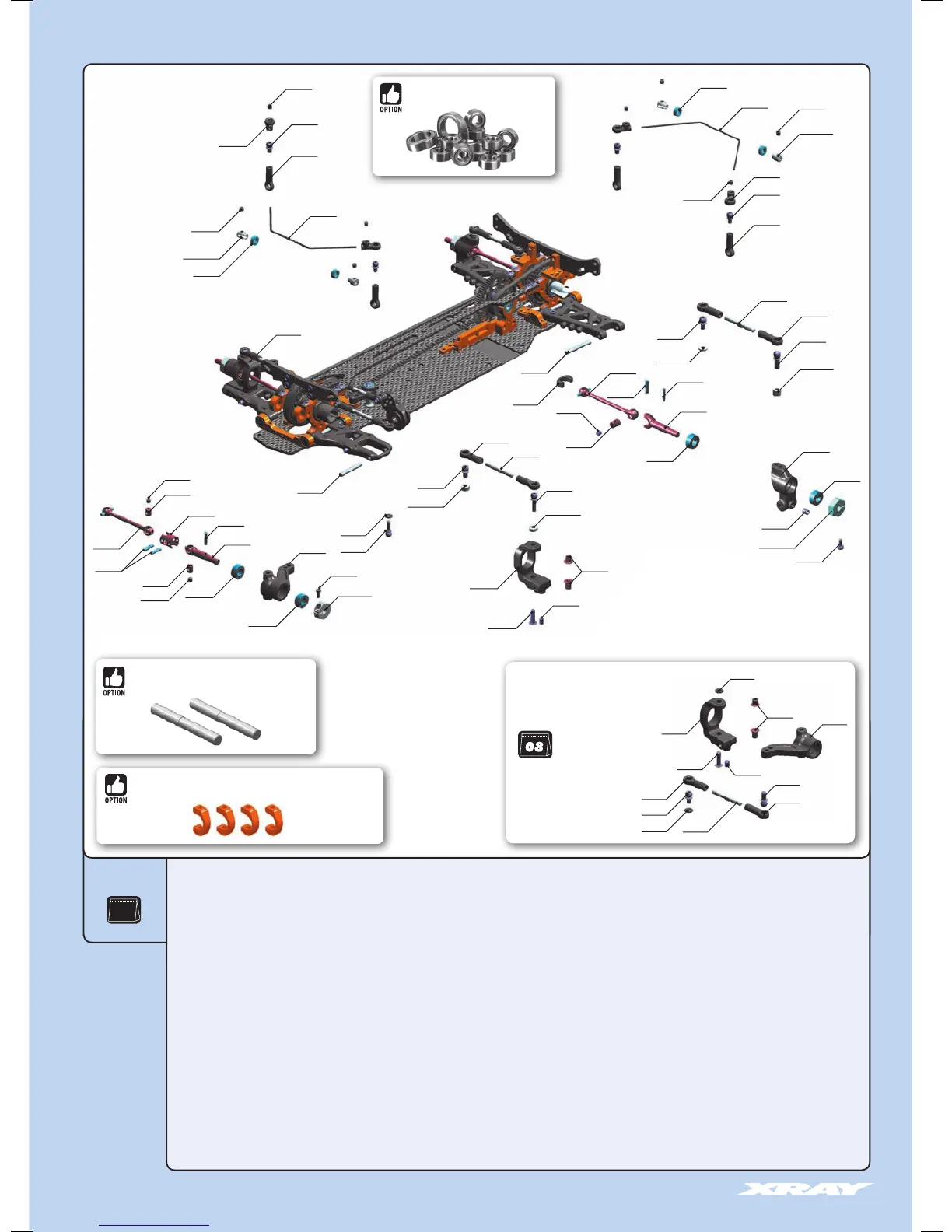

5. FRONT & REAR TRANSMISSION
30 2253 COMPOSITE STEERING BLOCK - HARD
30 2291 STEEL STEERING BUSHING (2+2)
30 2363 COMPOSITE C-HUB RIGHT - 4° DEG. - MEDIUM - V2
30 2364 COMPOSITE C-HUB LEFT - 4° DEG. - MEDIUM - V2
30 2369 COMPOSITE C-HUB RIGHT - 0° DEG. - HARD
30 2370 COMPOSITE C-HUB LEFT - 0° DEG. - HARD
30 2663 COMPOSITE BALL JOINT 4.9MM - OPEN - V2 (8)
30 2804 ANTI-ROLL BAR FOR BALL BEARINGS - FRONT 1.4 MM
30 3122-K ALU SHIM 3x6x1.0MM - BLACK (10)
30 3123-K ALU SHIM 3x6x2.0MM - BLACK (10)
30 3127-K ALU SHIM 3x6x4.0MM - BLACK (10)
30 3129 COMPOSITE SET OF SHIMS (3x1MM; 1x2MM) (2)
30 3210 TURNBUCKLE M3 L/R 26 MM - HUDY SPRING STEEL™ (2) (OPTION)
30 3212 ALU ADJ. TURNBUCKLE M3 L/R 26 MM - SWISS 7075 T6 (2)
30 3212-O ALU ADJ. TURNBUCKLE L/R 26 MM - ORANGE - SWISS 7075 T6 (2) (OPTION)
30 3354 COMPOSITE UPRIGHT 0° OUTBOARD TOE-IN - HARD
30 3432-O ALU ANTI-ROLL BAR BUSHING - ORANGE (2)
30 3455 COMPOSITE ANTI-ROLL BAR BALL JOINT 4.9 MM (4)
30 3803 ANTI-ROLL BAR FOR BALL BEARINGS - REAR 1.3 MM
30 5231 DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
30 5241 DRIVE SHAFT REPLACEMENT CAP 3.5 MM (4)
30 5221 ECS (ES) DRIVE SHAFT 51MM FOR 2MM PIN - HUDY SPRING STEEL™ (1)
30 5253 ECS DRIVE SHAFT COUPLING FOR 2MM PIN - HUDY SPRING STEEL™
30 5254 ECS (ES) DRIVE SHAFT CASE FOR 2MM PIN - HUDY SPRING STEEL™
30 5328 ALU DRIVE SHAFT SWISS 7075 T6 - HARDCOATED - 50MM
30 5332 ECS ES (ES) DRIVE SHAFT 52MM - HUDY SPRING STEEL™ - SET (OPTION)
30 5333 ECS ES (ES) DRIVE SHAFT 50MM - HUDY SPRING STEEL™ - SET (OPTION)
30 5334 ECS ES (ES) DRIVE SHAFT 51MM - HUDY SPRING STEEL™ - SET
30 5346 ECS DRIVE AXLE FOR 2MM PIN - HUDY SPRING STEEL™
30 5394 ECS DRIVE SHAFT PIN 2 x 9 WITH FLAT SPOT (2)
30 5341 DRIVE AXLE - LIGHTWEIGHT - HUDY SPRING STEEL™
30 5350-K ALU WHEEL HUB - BLACK (2)
30 5392 DRIVE SHAFT PIN 2 x 10 WITH FLAT SPOT (2)
30 7221 FRONT ARM PIVOT PIN (2)
30 7321 REAR ARM PIVOT PIN (2)
36 2649 BALL END 4.9MM WITH THREAD 5MM (2)
36 2650 BALL END 4.9MM WITH THREAD 6MM (2)
36 2651 BALL END 4.9MM WITH THREAD 8MM (2)
36 2652 BALL END 4.9MM WITH THREAD 10MM (2)
90 1302 HEX SCREW SB M3x2.5 (10)
90 1303 HEX SCREW SB M3x3 (10)
90 1304 HEX SCREW SB M3x4 (10)
90 2205 HEX SCREW SH M2x5 (10)
90 2310 HEX SCREW SH M3x10 (10)
93 0407 BALL-BEARING 4x7x2.5 (2)
94 0510 HIGH-SPEED BALL-BEARING 5x10x4 RUBBER SEALED (2)
98 0210 PIN 2x10 (10)
#309002
SET OF CERAMIC BALL-BEARINGS (14)
