Xray T4 2018 User Manual

24
901303
SB M3x3
901304
SB M3x4

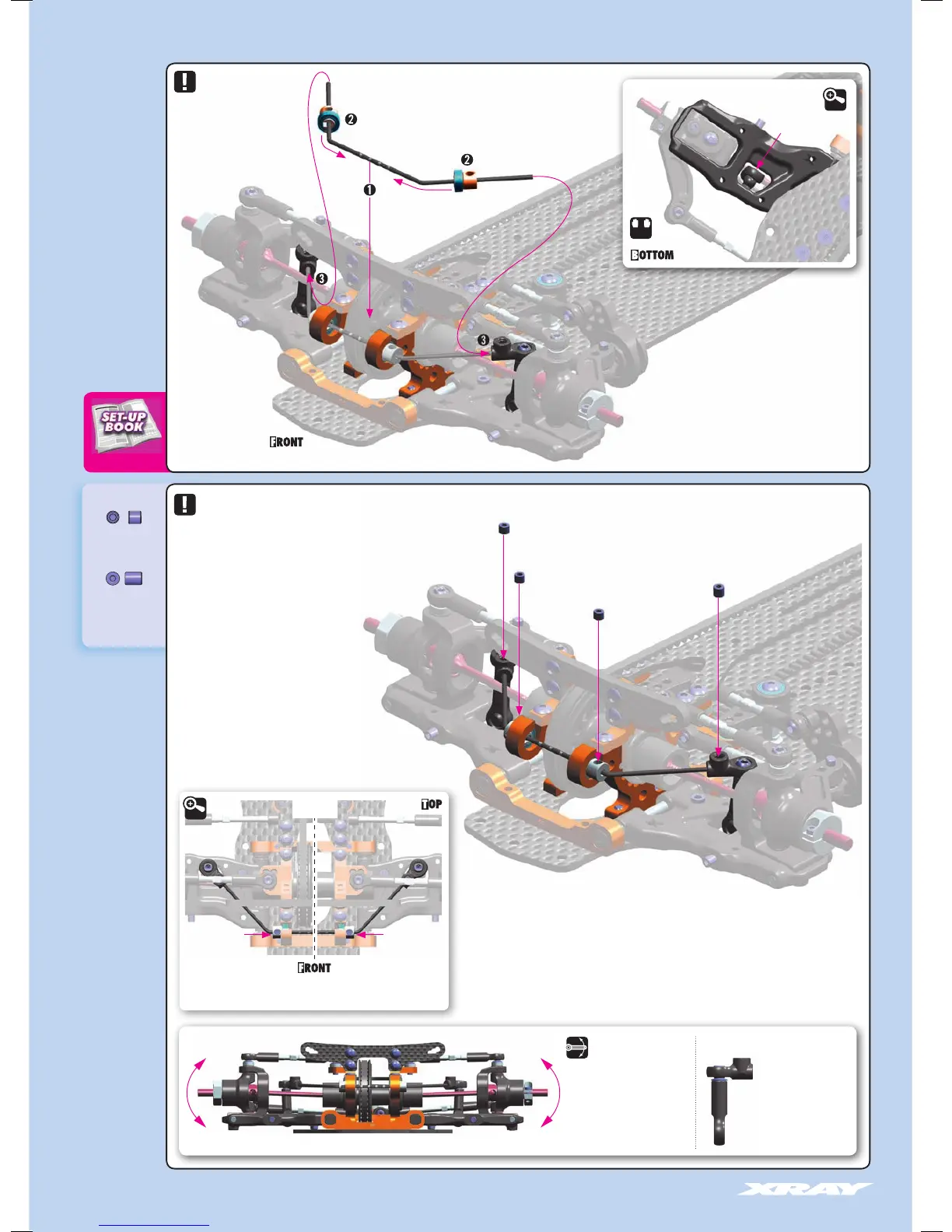

ANTI-ROLL BARS
FRONT ANTI-ROLL BAR
FRONT ANTI-ROLL BAR
When the bars are set, verify that
both sides move at the same time.
If they do, the bars are set up
correctly. If not, make sure that
both downstops are the same and
that the bar wire is flat.
If the sides still does not
move at the same time,
adjust the length of the
bar holders.
L=R
5. FRONT & REAR TRANSMISSION
3x4mm
3x4mm
3x3mm
3x3mm
DETAIL
CENTER
DETAIL
Set the bar into the center, remove the play in the bushings, and
tighten the setscrews fully.
