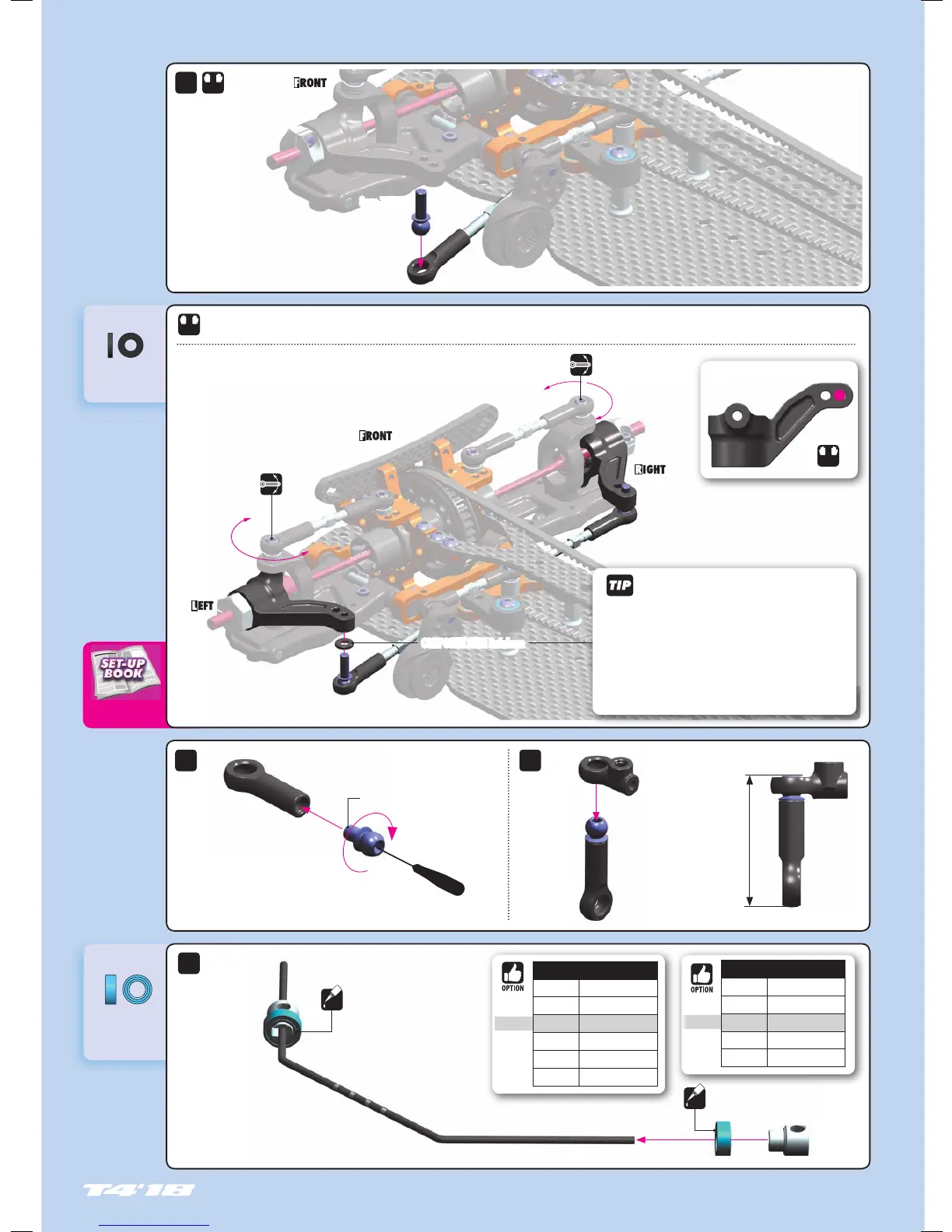

Xray T4 2018 User Manual

23
303129
SHIM 3x6x1
930407
BB 4x7x2.5
ACKERMANN
BUMPSTEER
8mm THREAD
FRONT TRANSMISSION
L=R
L=R
RECOMMENDED BUMPSTEER SETTINGS:
CARPET - 1mm thick shim
ASPHALT - 3mm thick shims
The number of shims changes the angles of the steering linkage.
When no shims are used, the car is easy to drive into the corner. As
the number of shims is increased, in-corner steering increases but
the car becomes more difficult to drive.
INITIAL SETTING
COMPOSITE SHIM 3x6x1mm
L=R
4x 4x
2x
OIL
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
5. FRONT & REAR TRANSMISSION
FREE MOVEMENT
FREE MOVEMENT
26mm
6mm THREAD
2.0 mm
2x
INCLUDED
REAR ANTI-ROLL BARS
#303801 REAR 1.1 MM
#303802 REAR 1.2 MM
#303803 REAR 1.3 MM
#303804 REAR 1.4 MM
#303805 REAR 1.5 MM
#303806 REAR 1.6 MM
INCLUDED
FRONT ANTI-ROLL BARS
#302802 FRONT 1.2 MM
#302803 FRONT 1.3 MM
#302804 FRONT 1.4 MM
#302805 FRONT 1.5 MM
#302806 FRONT 1.6 MM
